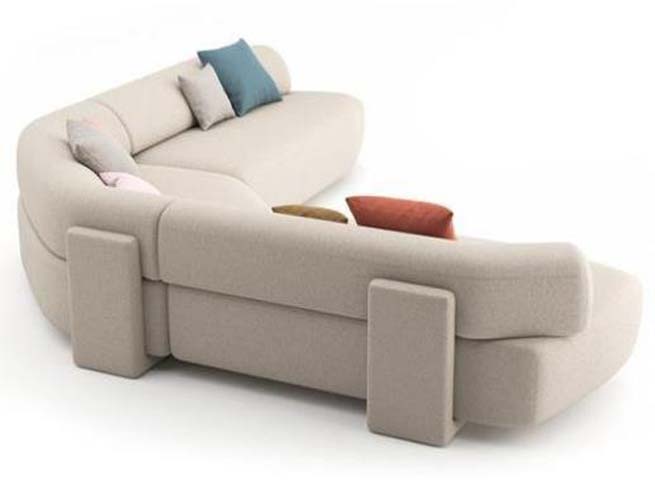

Product supplierBeige Upholstered Curved Modular Sectional Lounge Sofa, 380gsm textured boucle-style beige polyester
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1630 × 780 mm | |
|---|---|---|
| seat height | 457 mm | |
| seat depth | 880 mm | |
| seat width per modular section | 900 mm | |
| backrest height | 323 mm | |
| support leg height | 120 mm | |
| support leg cross-section | 180 x 120 mm | |
| inner curve radius | 1200 mm | |
| throw pillow dimensions | 450 x 450 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total static load capacity | 600 kg | |
|---|---|---|
| cushion compression set resistance | 40000 cycles | |
| fabric abrasion resistance | 30000 Martindale cycles | |
| net product weight | 120 kg | |
| cushion firmness rating | medium | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm | |
| Recommended Procurement Warranty | Frame 10 years; filling 3 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main upholstery fabric | 380gsm textured boucle-style beige polyester | |
|---|---|---|
| internal load-bearing frame | kiln-dried pine solid wood, 12% moisture content | |
| seat cushion core fill | 45D high-resilience polyurethane foam, 200mm thick | |
| seat cushion topper fill | 5A grade doll cotton, 30mm thick | |
| backrest fill | 35D polyurethane foam wrapped in doll cotton, 180mm thick | |
| support leg construction | plywood core wrapped in matching upholstery fabric | |
| seating support system | 50mm wide sinuous spring webbing, 80mm spacing | |
| seam stitch specification | 8 stitches per inch | |
| upholstery base layer | 200g non-woven fabric dust cover | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular connection system | interlocking metal brackets link adjacent seating sections | |
|---|---|---|
| seating configuration | continuous armless kidney-shaped curve for conversation seating | |
| seating orientation | inward-facing casual lounge posture | |
| included accessories | 5 mixed-color decorative throw pillows | |
| upholstery care | spot-clean fabric surface | |
| installation requirement | set up at delivery location, 72 hour rebound period for compressed cushions | |
| weight distribution design | block outrigger legs prevent tipping for uneven curved layout | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| total shipment volume | 3.07 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential living room | Centrepiece for open-plan living spaces, accommodates 5 people for casual gathering | |
|---|---|---|
| boutique lounge waiting area | Seating for high-end office lobbies, hotel lounges or design studios | |
| residential open-plan loft | Defines conversational seating zones in large open floor plans | |
| short-term rental furnishing | Statement seating for luxury Airbnb or serviced apartment properties | |
| designer showroom display | Feature display piece for furniture or home decor showrooms |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Domestic furniture seating strength, durability and safety requirements | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability test for smouldering cigarette ignition |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to wood frame structural integrity | |
|---|---|---|
| GB/T 1952.1-2012 | Upholstered sofas test standards, applies to load and durability performance | |
| GB 18401-2010 | National textile safety standard, applies to upholstery fabric formaldehyde limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to wood frame structural integrity; 2. GB/T 1952.1-2012: Upholstered sofas test standards, applies to load and durability performance; 3. GB 18401-2010: National textile safety standard, applies to upholstery fabric formaldehyde limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
