PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 2100 × 1350 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Tabletop static load capacity	80 kg
Total unit net weight	180 kg
Seat foam density	45 kg/m³
Fabric abrasion resistance	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer backrest upholstery	Textured woven polyester fabric
Seat upholstery	Woven commercial-grade fabric
Seat and back core	High-density polyurethane foam
Table top	Matte white high-pressure laminate
Table base and column	Powder-coated matte black steel
Internal structural frame	18 mm thick engineered plywood
Floor glides	Black non-marking plastic
Table edge trim	Matching PVC edge banding
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Semi-enclosed privacy design	1350 mm high back wraps 270 degrees around seating
Entry access design	700 mm front opening in C-shaped bench
Central work surface	Fixed round 900 mm table at center of booth
Fixed bench construction	Non-foldable, non-wheeled modular panel assembly
Modular panel assembly	Multi-section joined upholstered panels
Noise dampening feature	Upholstered fabric and foam construction
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office collaboration zones	Creates semi-private small meeting space without full wall construction
Co-working facility shared spaces	Provides dedicated focused meeting area for ad-hoc teams
Corporate breakout areas	Offers comfortable alternative to formal conference rooms
Educational institution study hubs	Suitable for small group project work and peer discussion
Healthcare facility waiting consultation nooks	Provides semi-enclosed private seating for patient or staff discussions
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139:2013	Applicable strength and durability for non-domestic seating
EN 15372:2016	Applicable safety and durability for office work tables
EN 1021-1:2014	Applicable upholstered furniture ignitability (cigarette test)

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Applicable performance standard for lounge and public seating
ANSI/BIFMA X5.5-2021	Applicable performance standard for desk products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 28007-2011	Applicable for strength and stability of office seating furniture
GB/T 3324-2017	Applicable general technical requirements for wooden furniture
GB 18580-2017	Applicable formaldehyde emission limits for engineered wood panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB 28007-2011: Applicable for strength and stability of office seating furniture;
2. GB/T 3324-2017: Applicable general technical requirements for wooden furniture;
3. GB 18580-2017: Applicable formaldehyde emission limits for engineered wood panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ACB-SEM-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ACB-SEM-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ACB-SEM-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

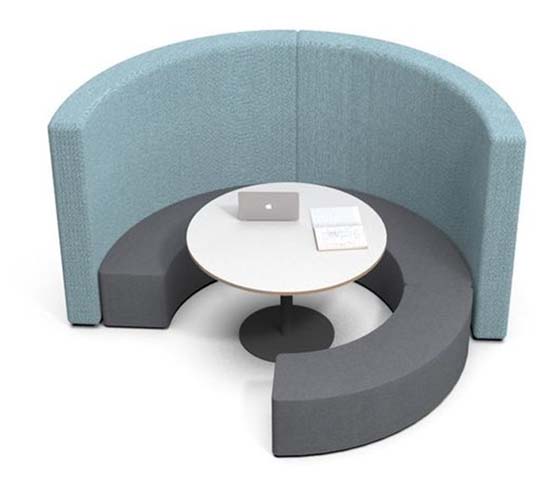

The Semicircular Upholstered Collaborative Meeting Booth with Central Table, model ACB-SEM-2400, is an unbranded office collaborative lounge seating booth designed to balance open accessibility and focused group interaction. Its visual form features a smooth, continuous semicircular layout defined by a 1350 mm high backrest that wraps 270 degrees around the seating area, paired with a 700 mm wide open front entry in the C-shaped bench to invite casual entry without the confinement of fully enclosed structures. A fixed 900 mm round table sits centrally within the curved seating arrangement, creating a symmetrical, intuitive layout for face-to-face engagement. The seating uses textured woven polyester fabric for the outer backrest and commercial-grade woven fabric for seat surfaces, paired with crisp matte white high-pressure laminate for the tabletop, finished with matching PVC edge banding and matte black powder-coated steel for the table base and column. All fabric surfaces offer 50000 Martindale cycles of abrasion resistance for long-term commercial use. Its internal structure relies on an 18 mm thick engineered plywood frame, with 14 mm bent plywood seat support boards, high-density polyurethane foam cores, and black non-marking plastic floor glides. Seating cushions are 90 mm thick with 45 kg/m³ density foam delivering 65% rebound, while backrest padding measures 70 mm thick with 38 kg/m³ density foam and a dedicated 240 mm high lumbar support zone. Each seat position offers 540 mm of clear width between armrests, with a 125° recline supported by three suggested lock positions. The upholstered fabric and foam construction provides inherent noise dampening to reduce surrounding workspace distraction. The booth seats 4 users, with a fixed, non-foldable, non-wheeled modular panel assembly for stable, long-term placement; the central table supports an 80 kg static load. It is well suited for open office collaboration zones where it creates semi-private meeting space without permanent wall construction, co-working shared spaces for ad-hoc team gatherings, corporate breakout areas as a comfortable alternative to formal conference rooms, educational study hubs for small group project work, and healthcare facility waiting or consultation nooks for discreet patient and staff discussions. For procurement, note the unit ships as one set across two cartons, requires 40 minutes of assembly per set, has a 180 kg net weight, and supports 135 units loaded in a 20GP container at 85% space utilization. The open modular design supports flexible floor planning aligned with 2.4 m executive desk matching configurations for cohesive workspace layouts.

Semicircular Upholstered Collaborative Meeting Booth with Central Table Specifications
