Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 720 x 680 x 920 mm | |
|---|---|---|
| Seat width | 520 mm | |
| Seat depth | 480 mm | |
| Seat height range | 520 mm | |
| Armrest height from seat | 220 mm | |
| Backrest height | 450 mm | |
| Base diameter | 660 mm | |
| Backrest angle relative to vertical | 12 degrees | |
| Overall chair outer dimensions | 720 x 680 x 920 mm | |
| Chair inner seat width | 520 mm | |
| Chair usable seat depth | 480 mm | |
| Chair maximum seat height | 520 mm | |
| Chair armrest height above seat | 220 mm | |
| Chair backrest height above seat | 450 mm | |
| Chair 4-star base diameter | 660 mm | |
| Table overall diameter | 600 mm |
Net weight / load capacity / users / durability
| Net weight | 18 kg | |
|---|---|---|
| Maximum static load capacity | 120 kg | |
| Swivel rotation range | 360 degrees | |
| Height adjustment stroke | 80 mm | |
| Foam density reference | 30 kg/m³ | |
| Fabric abrasion resistance reference | 20000 cycles | |
| Chair swivel rotation range | 360 degrees | |
| Chair height adjustment stroke | 80 mm | |
| Chair foam density reference | 30 kg/m³ | |
| Chair fabric abrasion resistance reference | 20000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

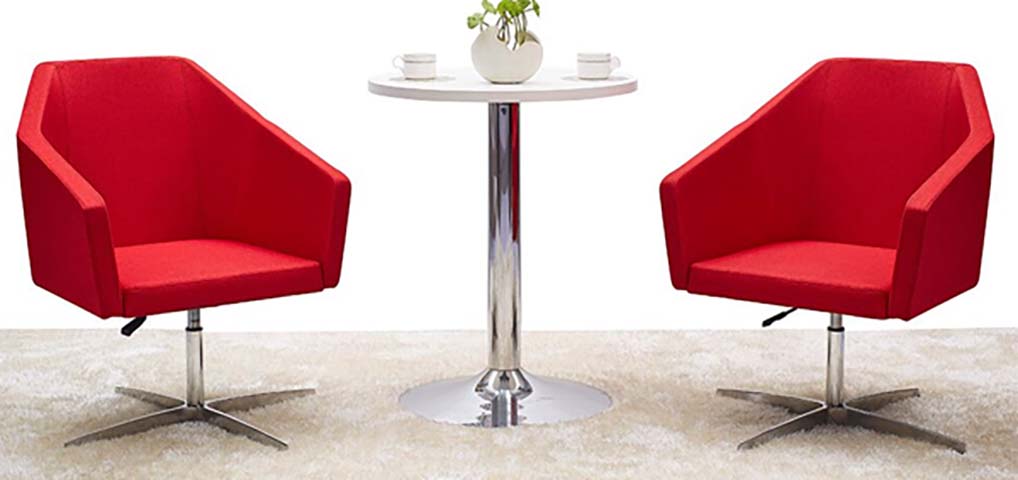

| Seat and backrest upholstery | Woven fabric in bright red finish | |
|---|---|---|
| Seat and backrest padding | Polyurethane foam fill | |
| Internal support frame | Plywood or solid wood inner frame | |
| Base structure | Chrome-plated steel 4-star base | |
| Height adjustment mechanism | Chrome-plated steel gas lift cylinder | |
| Armrest construction | Padded upholstered armrests integrated with backrest shell | |
| Base glides/pads | Plastic or rubber floor protection pads at leg ends | |
| Chair seat and backrest upholstery | Woven fabric in bright red finish | |
| Chair seat and backrest padding | Polyurethane foam fill | |
| Chair internal support frame | Plywood inner support frame with solid wood reinforcement at stress points | |
| Chair base structure | Chrome-plated steel 4-star base with flat leg profile | |
| Chair height adjustment mechanism | Chrome-plated steel gas lift cylinder with side-mounted plastic lever |
Adjustment / rotation / tilt / mobility / storage features
| Swivel function | 360-degree free rotation around central vertical axis | |
|---|---|---|
| Height adjustment | Pneumatic seat height adjustment via side-mounted lever | |
| Fixed backrest angle | Slightly reclined fixed backrest posture for relaxed seating | |
| Integrated armrest support | Continuous upholstered armrests providing lateral upper body support | |
| Floor protection | Base legs fitted with end caps to protect hard floors and carpets | |
| Stable stationary base | 4-star flat base design for static lounge use | |
| Chair 360-degree swivel function | Full 360-degree free rotation around the central vertical axis of each chair | |
| Chair fixed recline backrest | Slightly reclined fixed backrest posture for relaxed bistro seating | |
| Chair integrated armrest support | Continuous upholstered armrests providing lateral upper body support for seated users | |
| Chair floor protection function | Base leg end caps protect hard floors and low-pile carpets from scratching and scuffing | |
| Table stable stationary support | Low-profile round pedestal base provides balanced support for two-person bistro use | |
| Table decorative and dining surface | Smooth flat round table top accommodates two place settings, cups and small decorative items |
Verified carton / gross weight / assembly / loading data
| Packaging units per chair | 1 carton per chair | |
|---|---|---|
| Carton dimensions | 750 x 700 x 500 mm | |
| Gross weight per carton | 20 kg | |
| Volume per carton | 0.26 m³ | |
| Assembly time per unit | 15 minutes | |
| 20ft container loading quantity | 180 units | |
| Packaging units per set | 3 cartons per complete set | |
| Chair carton dimensions | 750 x 700 x 500 mm | |
| Table carton dimensions | 650 x 650 x 200 mm | |
| Chair gross weight per carton | 20 kg |
Recommended spaces / users / usage modes
| Lobby and reception areas | Suitable for office lobbies, waiting rooms and visitor seating areas | |
|---|---|---|
| Breakout and lounge spaces | Ideal for office breakout rooms, coworking lounge zones and casual meeting areas | |
| Retail and hospitality seating | Applicable for boutique stores, cafe seating areas and hotel public spaces | |
| Residential living spaces | Suitable for home offices, living room accent seating and dining nooks | |
| Exhibition and event seating | Suitable for trade show booths, conference VIP areas and event lounges | |
| Office breakroom and pantry areas | Suitable for small office break rooms and staff pantries for short-duration meals and casual breaks | |
| Cafe and bistro shop seating | Ideal for small cafes, bakeries and bistro shops as indoor two-person seating units | |
| Lobby and reception waiting areas | Applicable for office lobbies, clinic waiting rooms and hotel reception zones for visitor seating |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applicable for office chair dimensional and structural safety requirements | |
|---|---|---|
| EN 1022:2018 | Applicable for seating stability testing for domestic chairs | |
| EN 12521:2015 | Applicable for furniture strength, durability and safety of tables | |
| EN 14074:2004 | Applicable for furniture table height adjustability and stability requirements (for reference only) |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2021 | Applicable for general office chairs performance and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2020 | Applicable for upholstered furniture flammability evaluation reference |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applicable for furniture seat, back and arm height dimension measurement methods | |
|---|---|---|
| GB/T 10357.2-2013 | Applicable for chair stability testing under static load | |
| GB 18401-2010 | Applicable for textile upholstery formaldehyde and harmful substance limits | |
| GB/T 10357.1-2013 | Applicable for table strength and durability testing | |
| GB/T 24821-2009 | Applicable for dining furniture general technical requirements |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applicable for furniture seat, back and arm height dimension measurement methods; 2. GB/T 10357.2-2013: Applicable for chair stability testing under static load; 3. GB 18401-2010: Applicable for textile upholstery formaldehyde and harmful substance limits; 4. GB/T 10357.1-2013: Applicable for table strength and durability testing; 5. GB/T 24821-2009: Applicable for dining furniture general technical requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
