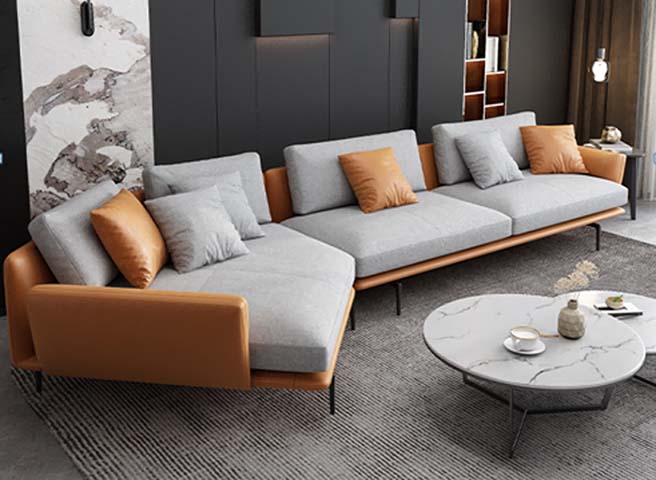

Product supplierModern L-Shaped Left-Chaise Sectional Sofa, Grey Fabric with Orange Faux Leather Trim, Orange PU faux leather, wipe-clean surface
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3580 × 1720 × 960 mm | |
|---|---|---|
| overall footprint | 3580 x 1720 x 960 mm | |
| seat height | 460 mm | |
| seat depth (main seating) | 580 mm | |
| chaise lounge depth | 1720 mm | |
| backrest height | 500 mm | |
| armrest height | 640 mm | |
| leg height | 120 mm | |
| arm width | 180 mm | |
| seat cushion thickness | 150 mm | |
| minimum required doorway width | 820 mm | |
| throw pillow size | 450 x 450 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total seating capacity | 4 people | |
|---|---|---|
| overall static load capacity | 480 kg | |
| net product weight | 140 kg | |
| seat foam density | 45 kg/m³ | |
| foam rebound rate | 60% | |
| fabric abrasion resistance | 30000 Martindale cycles | |
| frame durability | 10 years expected service life | |
| seam stitch pitch | 30 mm | |
| warranty period | 1 year | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| outer arm and base trim | Orange PU faux leather, wipe-clean surface | |
|---|---|---|
| seat and back cushion covers | Light grey woven polyester-linen blend fabric | |
| internal frame | Kiln-dried solid pine wood with corner block reinforcement | |
| seat support system | 80 mm serpentine springs + 50 mm elastic webbing grid | |
| seat cushion fill | High-density high-resilience polyurethane foam | |
| back cushion fill | Loose polyester fiber fill | |
| support legs | 1.5 mm thick matte black powder-coated carbon steel tubes | |
| throw pillow covers | Two-tone orange PU and grey woven fabric matching main upholstery | |
| throw pillow fill | 100% hollow polyester fiber fill | |
| seam construction | Reinforced polyester thread with double stitching at stress points | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| configuration | Fixed left-hand chaise + 3-seat main straight segment | |
|---|---|---|
| cushion design | Loose, removable seat and back cushions for easy cleaning | |
| armrest function | Fully upholstered padded armrests on both open ends of sectional | |
| under-seat clearance | 120 mm open space below seat frame for cleaning access | |
| leg installation | Threaded metal leg attachment for simple knockdown assembly | |
| section connection | Heavy-duty metal connecting brackets join chaise and main sofa segments | |
| cleaning compatibility | Faux leather surfaces wipe clean, fabric cushions support spot cleaning | |
| base stability | Fourteen evenly distributed metal legs prevent frame sag and tilt | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| living room main seating | Suitable for open-plan modern residential living rooms as primary seating for 4 users | |
|---|---|---|
| apartment lounge use | Low-profile modern design fits contemporary minimalist and light luxury apartment interiors | |
| reception waiting areas | Appropriate for casual office reception or studio lounge spaces with modern design themes | |
| home open-plan spaces | Pairs with standard-height coffee tables and area rugs for cohesive conversational seating groups | |
| loft residential settings | Elevated metal leg base creates light visual weight suitable for open loft interiors |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety requirements for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette sources |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame | |
|---|---|---|
| GB 20400-2006 | Leather and faux leather upholstery material safety limits for harmful substances | |
| GB/T 1952.1-2012 | Test methods for upholstered sofas, static load and durability performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame; 2. GB 20400-2006: Leather and faux leather upholstery material safety limits for harmful substances; 3. GB/T 1952.1-2012: Test methods for upholstered sofas, static load and durability performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
