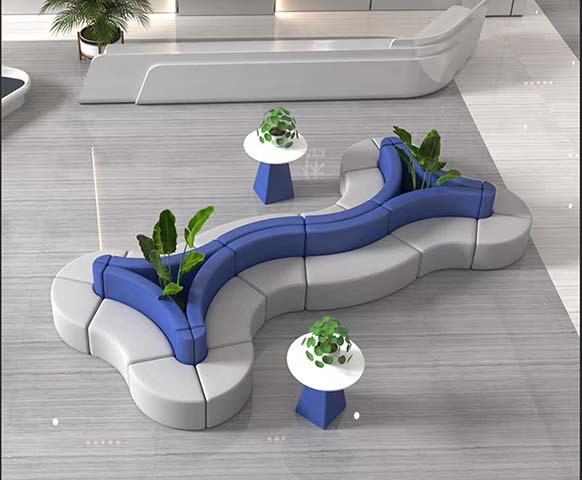

Product supplierS-Curve Modular Upholstered Lobby Bench with Integrated Planters, Light gray commercial linen-look polyester fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3350 × 680 × 450 mm | |
|---|---|---|
| Overall modular footprint | 3350 x 1700 x 760 mm | |
| Seat height | 450 mm | |
| Seat depth per segment | 680 mm | |
| Individual curved seat module length | 680 mm | |
| Backrest height above seat | 310 mm | |
| Integrated planter cavity internal diameter | 300 mm | |
| Planter cavity depth | 250 mm | |
| Module joint gap | 2 mm | |
| Base floor clearance | 10 mm | |
| Matching round side table height | 500 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load per seat position | 150 kg | |
|---|---|---|
| Total seating capacity | 8 persons | |
| Upholstery abrasion resistance | 50000 cycles | |
| Cushion foam density | 45 kg/m³ | |
| Foam resilience rate | 60% | |
| Frame static load rating | 1200 kg | |
| Product warranty | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Light gray commercial linen-look polyester fabric | |
|---|---|---|
| Backrest upholstery | Medium blue coordinating commercial fabric | |
| Cushion fill | High-resilience cold-cure PU foam | |
| Internal frame | 1.5mm thick powder-coated steel tube | |
| Planter cavity liner | Waterproof HDPE plastic liner | |
| Base structure | Molded plywood inner support with non-slip felt feet | |
| Fabric surface treatment | Stain-repellent nano-coating | |
| Module connecting hardware | Zinc-plated steel interlocking brackets | |
| Seam stitching | High-tenacity polyester thread with 8mm stitch pitch | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Interlocking curved segments assemble into freeform S-shape | |
|---|---|---|
| Integrated biophilic planters | Recessed waterproof cavities at curve peaks hold live potted plants | |
| Bidirectional seating | Armless low-profile design allows seating on both sides of the S-curve | |
| Fixed floor stability | Non-marking adjustable feet provide level placement on uneven polished floors | |
| Maintenance access | Removable planter liners allow drainage and plant replacement without upholstery disassembly | |
| Segment replacement | Individual damaged modules can be disconnected and replaced without full disassembly | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office lobby waiting areas | Provides durable biophilic seating for employee and visitor entry spaces | |
|---|---|---|
| Hotel reception zones | Creates a contemporary curved focal point for guest check-in waiting | |
| Public exhibition halls | Supports high foot traffic with modular flexible seating configurations | |
| Hospital outpatient waiting areas | Stain-resistant upholstery supports easy cleaning for high-use public health spaces | |
| Airport terminal lounge zones | High-capacity bidirectional seating maximizes usable space in open concourses | |
| Tech company collaboration hubs | Casual curved layout supports informal group discussion and short breaks |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Strength, durability and safety requirements for non-domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Performance standard for lounge and public seating, load and durability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental impact |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural base components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for indoor public use | |
| GB/T 19889.3-2005 | Acoustic performance rating for indoor public space furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural base components; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for indoor public use; 3. GB/T 19889.3-2005: Acoustic performance rating for indoor public space furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
