BCH-TUF-MTL-1500

Code：W20WVLV1
Request supplier quotes

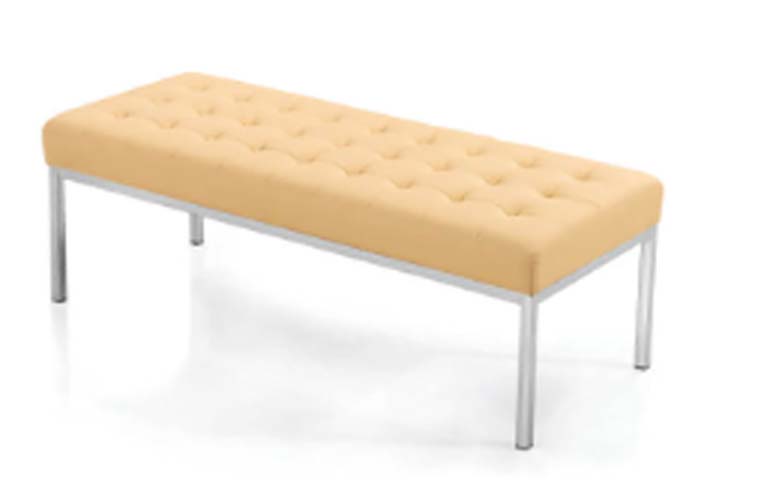

Tufted Upholstered Metal Frame 3-Seat Waiting Bench Key Specifications 2026-08-06 11:27

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

BCH-TUF-MTL-1500

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions1500 x 450 x 450 mm
Seat cushion thickness80 mm
Leg outer diameter32 mm
Leg wall thickness1.2 mm
Perimeter frame tube width25 mm
Seat surface height from floor450 mm
Tuft button grid spacing150 mm
Under-seat floor clearance370 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight18 kg
Total static load capacity360 kg
Seat foam density35 kg/m³
Fabric abrasion resistance (Martindale)30000 cycles
Recommended maximum occupancy3 persons
Frame surface scratch resistance2H pencil hardness
Seat usable width per occupant500 mm
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat outer upholsteryWoven polyester fabric
Seat core paddingHigh-density polyurethane foam
Seat tuft detailingFabric-covered button tufting
Perimeter support frameChrome-plated cold-rolled steel tube
Support legsCylindrical chrome-plated cold-rolled steel tube
Foot glidesInjection-molded non-slip nylon
Internal seat substrate12mm thick plywood panel
Frame finish coatingMulti-layer polished chrome plating
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seating configurationBackless armless long bench
Floor protection functionIntegrated non-marking nylon glides at each leg base
Under-seat access370mm open clearance below seat
Placement flexibilitySymmetrical 4-leg design
Surface maintenanceTight woven fabric upholstery
Structural stabilityWelded perimeter steel frame connecting all four legs
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaged carton count1 unit
Single carton outer dimensions1550 x 500 x 500 mm
Packaged gross weight21 kg
Shipment volume per unit (CBM)0.388 cbm
On-site assembly time10 minutes
20ft GP container loading quantity84 units
40ft HQ container loading quantity210 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office reception and waiting areasSuitable for corporate lobbies, meeting room anterooms and visitor waiting zones, provides compact, durable seating for 3 guests without bulky backrests that block sight lines
Public facility waiting spacesSuitable for hospital outpatient areas, bank service lobbies and government service centers, meets high-traffic durability and easy-clean requirements
Residential bedroom and entryway useSuitable for placement at the foot of king or queen size beds, or in residential entryways for temporary seating while putting on shoes, neutral tufted design complements modern, mid-century and minimalist interior styles
Breakout and collaborative spacesSuitable for office breakout areas, co-working space lounge zones and café supplementary seating, lightweight frame allows easy repositioning for flexible event layouts
Temporary event seatingSuitable for conference events, exhibition booths and pop-up retail spaces, durable steel frame withstands frequent setup and teardown, neutral beige color coordinates with standard event decor
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seatingApplicable for commercial non-domestic use, specifies static load, fatigue impact and stability test requirements for public waiting benches
EN 1022:2018 Furniture - Seating - Determination of stabilityApplicable to verify no forward, side or rear tipping risk under normal and foreseeable use conditions
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020 Lounge and Public SeatingApplicable for commercial installation in North American markets, specifies static load, durability and stability test methods for public waiting seating
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furnitureApplicable to hidden internal plywood seat substrate, specifies dimensional tolerance, edge finishing and structural strength requirements for acceptance
GB/T 3325-2017 Metal furniture general technical conditionsApplicable to chrome-plated steel frame and legs, specifies metal tube wall thickness, welding strength, coating adhesion and corrosion resistance requirements
GB 20400-2006 Leather and fur - Limit of harmful matterApplicable if leather upholstery option is selected, specifies formaldehyde and harmful dye limits for upholstery materials
GB/T 17592-2011 Textiles - Determination of banned azo colourantsApplicable to fabric upholstery, specifies limit values for carcinogenic azo dyes in direct skin contact textiles
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable to hidden internal plywood seat substrate, specifies dimensional tolerance, edge finishing and structural strength requirements for acceptance;
2. GB/T 3325-2017 Metal furniture general technical conditions: Applicable to chrome-plated steel frame and legs, specifies metal tube wall thickness, welding strength, coating adhesion and corrosion resistance requirements;
3. GB 20400-2006 Leather and fur - Limit of harmful matter: Applicable if leather upholstery option is selected, specifies formaldehyde and harmful dye limits for upholstery materials;
4. GB/T 17592-2011 Textiles - Determination of banned azo colourants: Applicable to fabric upholstery, specifies limit values for carcinogenic azo dyes in direct skin contact textiles;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
