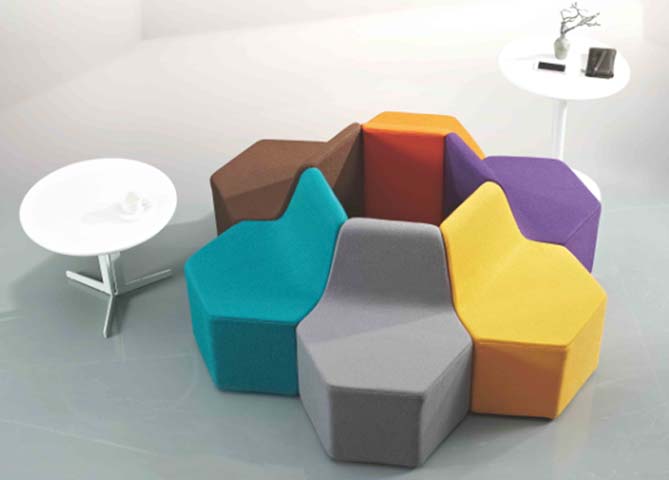

Interlocking Hexagonal Modular Upholstered Lounge Seating (model MOD-HEX-LOU-001) is listed under Fabric Office Sofa, with overall dimensions of 914 × 794 × 457 mm and main material of Fabric. Load capacity: 136 kg. Certifications: Modular,tessellating,structure,multi-color,fabric,upholstery,low-profile,integrated,backrest,soft,padded,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Single unit overall dimensions | 914 x 794 x 457 mm | |
|---|---|---|
| Seat height from floor | 457 mm | |
| Seat width per user position | 600 mm | |
| Seat depth usable surface | 600 mm | |
| Integrated backrest height | 280 mm above seat surface | |
| Upholstery padding thickness (seat) | 100 mm | |
| Upholstery padding thickness (backrest) | 80 mm | |
| Seat edge thickness | 120 mm | |
| Hexagon face edge length | 457 mm | |
| Base glide height | 13 mm | |
| Arranged 6-unit cluster footprint | 2380 x 2070 mm | |
| Underseat clearance from floor | 13 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single unit net weight | 23 kg | |
|---|---|---|
| Static load capacity per seat | 136 kg | |
| Upholstery abrasion resistance | 50000 Martindale rubs | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 35 kg/m³ | |
| Foam rebound rate | 60% | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Warranty period for frame and components | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal support frame | 18mm multi-layer plywood frame, corner-blocked for structural rigidity | |
|---|---|---|
| Seat padding core | High-resilience polyurethane foam, CFC-free, flame-retardant treated for contract use | |
| Backrest padding | Medium-density polyurethane foam, contoured for lumbar support | |
| Upholstery fabric | 100% polyester contract-grade woven fabric, stain-resistant finish | |
| Base contact components | 13mm thick non-marking nylon glides, non-adjustable, floor-protective | |
| Upholstery stitching | High-tenacity polyester thread, double-stitched at high-stress seat edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection configuration | Hexagonal units tessellate along angled edges to form radial, linear, or custom cluster layouts | |
|---|---|---|
| Reconfiguration capability | Freestanding units can be repositioned without tools to adapt to changing space needs | |
| Back support functionality | Integrated contoured low backrest provides upright casual support for short to medium seating durations | |
| Floor protection function | Smooth nylon glides prevent scuffing and scratching of hard floor surfaces during repositioning |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office collaborative breakout zones | Flexible modular arrangements support impromptu team meetings and informal work sessions | |
|---|---|---|
| Public waiting and reception areas | Durable easy-clean fabric and high load capacity suit high-traffic visitor waiting spaces |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Strength, durability and safety requirements applicable to non-domestic lounge seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance standard for smouldering cigarette sources |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Safety and performance standard applicable to lounge and public seating products | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability certification framework applicable to commercial furniture material selection |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements applicable to wooden-framed upholstered seating furniture for general use | |
|---|---|---|
| GB 20286-2006 | Fire performance requirements applicable to public place upholstered furniture flame retardancy | |
| GB/T 39223.2-2020 | Durability test requirements applicable to seat and backrest strength for public seating |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements applicable to wooden-framed upholstered seating furniture for general use; 2. GB 20286-2006: Fire performance requirements applicable to public place upholstered furniture flame retardancy; 3. GB/T 39223.2-2020: Durability test requirements applicable to seat and backrest strength for public seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
