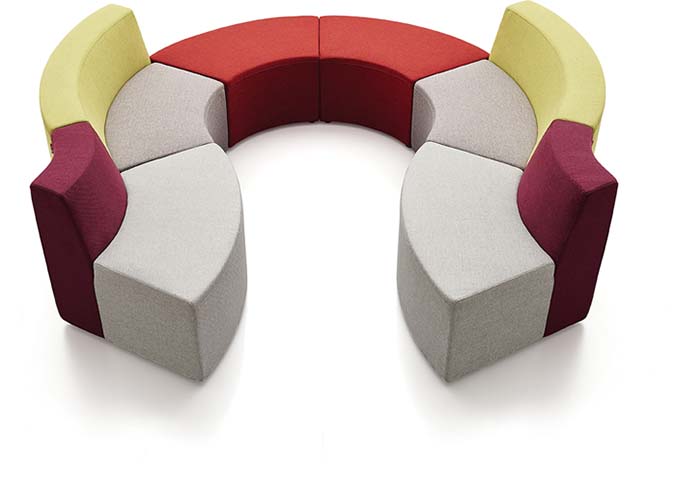

Multicolor Fabric Upholstered Open C-Shaped Modular Lounge Seating Set (model MOD-LOUNGE-CURV-C6-ARM2) is listed under Fabric Office Sofa, with overall dimensions of 2500 × 2030 × 890 mm and main material of Fabric. Load capacity: 150 kg. Certifications: multicolor,upholstery,modular,interlocking,design,low,blocky,plinth,base,integrated,end,armrests,open,semicircular,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster dimensions | 2500 x 2030 x 890 mm | |
|---|---|---|
| Seat height | 430 mm | |
| Individual armless wedge seat width | 620 mm | |
| Seat depth | 610 mm | |
| Armrest height above seat | 460 mm | |
| Backrest height above seat | 460 mm | |
| Plinth base height | 100 mm | |
| Armrest segment width | 620 mm | |
| Central open inner radius | 800 mm | |
| Per-seat usable surface width | 580 mm | |
| Cushion thickness | 120 mm | |
| Armrest pad thickness | 80 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat static load capacity | 150 kg | |
|---|---|---|
| Total cluster seating capacity | 6 persons | |
| Seat foam density | 40 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery fabric abrasion resistance | 100000 cycles | |
| Total net weight (fully assembled) | 180 kg | |
| Inter-module connection shear strength | 200 kg | |
| Standard commercial warranty | 2 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal load-bearing frame | 18mm thick plywood with moisture-resistant seal | |
|---|---|---|
| Seat and back fill | High-density polyurethane foam over supportive sinuous spring base | |
| Upholstery fabric | 320g/m² woven polyester fabric with stain-resistant finish | |
| Plinth base structure | Upholstered hardwood frame with non-slip floor glides | |
| Inter-module connectors | Powder-coated steel ganging brackets with locking tabs | |
| Seam construction | Stitched seams with 8 stitches per inch for heavy-use durability |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | Interlocking steel brackets allow rearrangement into linear, curved or clustered layouts | |
|---|---|---|
| Non-marking floor protection | Integrated nylon glides on base bottom prevent floor scuffing during repositioning | |
| Removable upholstery covers | Zippered fabric covers allow removal for spot cleaning or replacement | |
| End armrest integration | Two padded end segments provide integrated arm support without additional attachments |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office collaborative lounge zones | Supports 6-person casual group discussion in open plan workspaces | |
|---|---|---|
| Public reception and waiting areas | Low-profile open layout creates welcoming seating for visitors without sightline obstruction |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Strength, durability and safety requirements for non-domestic seating, applicable for commercial lounge use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance (smoldering cigarette), required for public space installation |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Performance standard for lounge seating, recommended for commercial office installation verification |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal plywood frame construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture use | |
| GB/T 29894-2013 | Performance requirements for upholstered furniture for public office and commercial spaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal plywood frame construction; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture use; 3. GB/T 29894-2013: Performance requirements for upholstered furniture for public office and commercial spaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
