| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2800 x 1800 x 850 mm | |
|---|---|---|
| 3-seat straight section length | 2000 mm | |
| Chaise section length | 1800 mm | |
| Seat depth (straight section) | 650 mm | |
| Seat depth (chaise section) | 1200 mm | |
| Seat height | 420 mm | |
| Backrest height (highest point) | 430 mm | |
| Backrest height (lowest end) | 700 mm | |
| Throw pillow size | 500 x 500 mm | |
| Base plinth height | 60 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Net weight reference | 120 kg | |
|---|---|---|
| Seat static load rating | 450 kg | |
| Seating capacity | 4 persons | |
| Seat foam density reference | 35 kg/m³ | |
| Back foam density reference | 28 kg/m³ | |
| Abrasion resistance reference | 20000 rubs | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Internal frame | Solid pine wood + plywood composite frame | |
|---|---|---|
| Seat cushion padding | High-density polyurethane foam with soft top layer | |
| Backrest padding | Medium-density polyurethane foam with fiber wrap | |

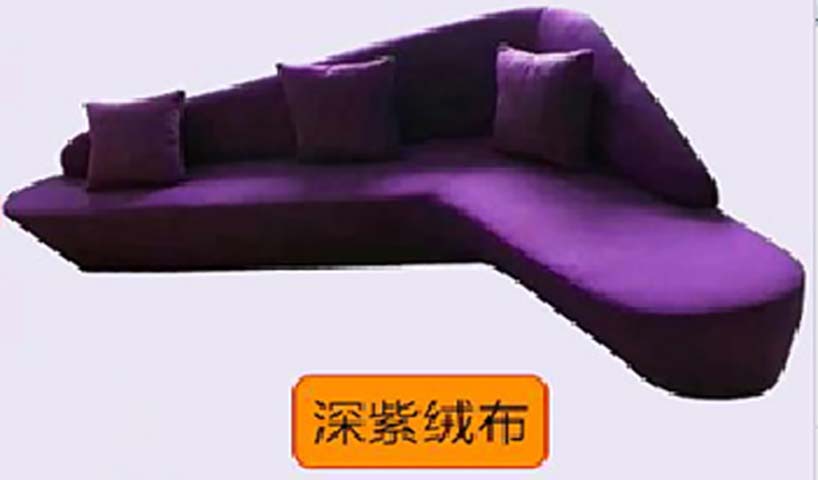

| Upholstery fabric | Deep purple velvet (plush woven pile fabric) | |
| Base structure | Upholstered low plinth base with hidden feet | |
| Throw pillows | Matching velvet cover with polyester fiber fill | |
| Suspension system | Sinuous spring seat support | |
| Edge reinforcement | Density foam + batting wrapped frame edges | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8 fabric/leather color options |
Adjustment / rotation / tilt / mobility / storage features
| Modular L-shape configuration | Fixed-corner 2-piece assembly (straight sofa + right chaise) forming a right-angle layout | |
|---|---|---|
| Asymmetric sloped backrest | Tapered back height from 700mm at left end to 850mm at right corner | |
| Rounded chaise foot end | Smooth curved front edge on chaise section with no sharp corners | |
| Removable throw pillows | 3 matching square cushions that can be repositioned or removed for cleaning | |
| Low-profile floor clearance | 60mm minimum gap between base plinth and floor | |
| Fixed seating cushions | Integrated non-removable seat cushion platform | |
| Right-hand chaise orientation | Chaise extension positioned on the right side when facing the sofa | |
| Wide low armrest design | Flat 200mm wide tapered left armrest at seat surface height | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Packing unit count | 2 cartons | |
|---|---|---|
| Assembly time | 30 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Residential living room | Primary application for family lounging and guest seating in medium-to-large living spaces | |
|---|---|---|
| Modern apartment open plan | Suitable for open-concept living-dining zones to define seating area without full wall backing | |
| Lounge or waiting area | Applicable for boutique office reception, hotel lounge or creative studio waiting spaces | |
| Right-wall corner layout | Recommended for rooms where the longer wall sits on the left and open space is on the right | |
| Fashion-forward interiors | Ideal for purple-accent or maximalist decor schemes needing a bold statement furniture piece | |
| Boutique lounge or waiting area | Applicable for design studio reception, boutique hotel lounge or creative office waiting spaces | |
| Fashion-forward interior schemes | Ideal for purple-accent, maximalist or dark-luxury decor schemes needing a bold statement furniture piece | |
| Studio or loft common area | Suitable for small creative studio shared spaces or loft apartment lounge zones |
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Applicable for domestic sofa seat and back static load testing reference | |
|---|---|---|
| EN 1078-1:2020 | Applicable for upholstered furniture flame retardancy basic assessment reference |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2020 | Applicable standards and test results require confirmation |
|---|
Standards applicable to China-market projects
| GB/T 16799-2008 | Applicable standards and test results require confirmation | |
|---|---|---|
| GB 18401-2010 Class B | Applicable for upholstery fabric formaldehyde and harmful substance limit check | |
| GB/T 13667.1-2015 | Applicable for wood-based panel frame formaldehyde emission verification |
This product must meet the following technical requirements: 1. GB/T 16799-2008: Applicable standards and test results require confirmation; 2. GB 18401-2010 Class B: Applicable for upholstery fabric formaldehyde and harmful substance limit check; 3. GB/T 13667.1-2015: Applicable for wood-based panel frame formaldehyde emission verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
