Name: Back-to-Back 4-Seat Modular Public Waiting Seating with Central Divider
Brand: WEIKE
SKU: YVBSX7

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1240 × 780 mm
Overall 4-seat back-to-back unit dimensions	2400 x 1240 x 780 mm
Single armless seat unit dimensions	600 x 620 x 780 mm
Seat height from floor	450 mm
Backrest height above seat	330 mm
Central divider/table unit dimensions	600 x 650 x 450 mm
Cylindrical support leg height	100 mm
Support leg diameter	40 mm
Backrest thickness	100 mm
Seat cushion thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per 4-seat back-to-back unit	120 kg
Total static load capacity per full unit	500 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	65%
Backrest foam rebound rate	45%
Upholstery abrasion resistance	50000 cycles
Formaldehyde emission from panels	0.014 mg/m³
Seat depth per occupant	620 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Public-grade wear-resistant PU faux leather, anti-fouling and anti-scratch finish
Seat cushion core	45D high-resilience polyurethane foam, flame-retardant formulation
Backrest cushion core	35D high-resilience polyurethane foam, flame-retardant formulation
Internal structural frame	15mm multi-layer solid wood panel with 1.5mm welded square steel reinforcement
Support legs	Powder-coated cold-rolled steel cylindrical legs with non-slip plastic foot pads
Central divider unit surface	High-pressure laminate (HPL) top with upholstered side panels, impact-resistant
Internal seat support board	15mm E0 grade multi-layer plywood, formaldehyde emission compliant
Seam construction	Reinforced polyester stitching, 8 stitches per inch seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Bolted interlocking metal brackets between units, allows layout reconfiguration
Seating configuration	Back-to-back mirrored layout with 4 armless seats and 1 central divider unit
Floor protection	Non-marking plastic foot caps on all legs, prevents scratches on polished stone floors
Central divider function	Provides armrest support and small item placement surface between opposing seat pairs
Flame-retardant performance	Upholstery and foam meet public place fire retardant standards
Cleaning design	Fully wrapped upholstered surfaces with waterproof PU finish, supports wipe-down cleaning
Assembly method	Knock-down construction with pre-drilled connection points, requires on-site assembly
Layout expandability	Compatible with additional straight, corner or divider units to form larger waiting clusters
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Postal service branch lobbies	Durable, easy-to-clean design matches China Post outlet waiting area requirements
Bank and financial service halls	Wear-resistant, flame-retardant construction meets bank public furniture procurement specs
Government administrative service centers	Modular layout adapts to variable waiting queue sizes for public service counters
Hospital outpatient waiting zones	High-load, easy-to-sanitize surfaces suit high-footfall healthcare public spaces
Public transport station waiting areas	Low-back armless design maximizes seating capacity for short waiting stays
Open-plan office reception zones	Neutral two-tone color scheme fits modern reception waiting space aesthetics
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13761:2002	Applicable European standard for public waiting seating performance and stability
EN 1021-1:2014	Applicable upholstered furniture ignitability standard for cigarette source resistance
EN 1021-2:2014	Applicable upholstered furniture ignitability standard for match flame resistance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 20286-2006	Applicable fire retardant standard for upholstered furniture in public assembly spaces
GB 18584-2001	Applicable indoor furniture formaldehyde and harmful substance emission limit standard
GB/T 3324-2017	Applicable general technical requirement standard for wooden furniture structural components

Standardized tender description text

This product must meet the following technical requirements:
1. GB 20286-2006: Applicable fire retardant standard for upholstered furniture in public assembly spaces;
2. GB 18584-2001: Applicable indoor furniture formaldehyde and harmful substance emission limit standard;
3. GB/T 3324-2017: Applicable general technical requirement standard for wooden furniture structural components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PUB-WAIT-B2B-4S-GW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PUB-WAIT-B2B-4S-GW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PUB-WAIT-B2B-4S-GWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

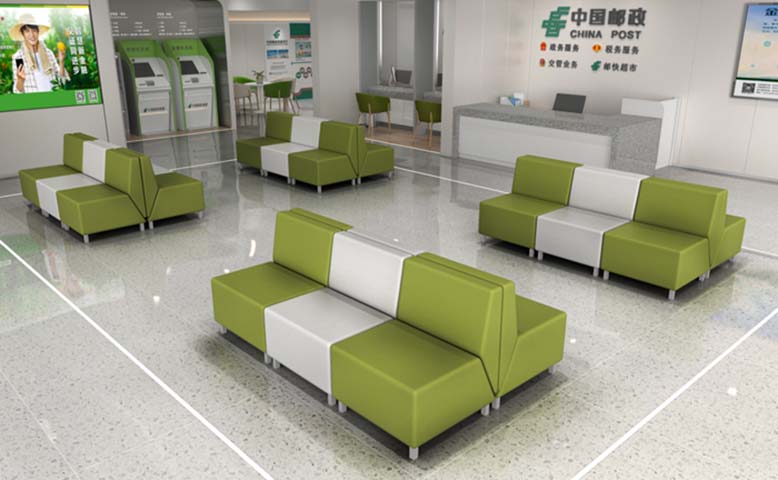

WEIKE Back-to-Back 4-Seat Modular Public Waiting Seating with Central Divider, model PUB-WAIT-B2B-4S-GW, presents a streamlined two-tone green and white block aesthetic with an armless, back-to-back mirrored layout that holds four individual seats paired with a central integrated divider, mounted on short cylindrical support legs for a grounded, approachable profile. The full unit measures 2400 x 1240 x 780 mm, with each single armless seat sized at 600 x 620 x 780 mm, a 450 mm seat height from the floor, 330 mm backrest height above the seat, and 100 mm thick backrests for consistent user support. Its 600 x 650 x 450 mm central divider sits between opposing seat pairs, balancing visual separation and open sightlines suitable for public flow. The seating is built for heavy public use, with an internal frame of 15mm multi-layer solid wood panel reinforced with 1.5mm welded square steel, supported by powder-coated cold-rolled steel cylindrical legs fitted with non-slip, non-marking plastic foot pads. Seat and back surfaces use public-grade wear-resistant PU faux leather with an anti-fouling, anti-scratch, waterproof finish, stitched with reinforced polyester thread at 8 stitches per inch for seam durability. Seat cushions use 45D high-resilience flame-retardant polyurethane foam, while backrests use 35D high-resilience flame-retardant polyurethane foam, and internal seat support comes from E0 grade multi-layer plywood. The central divider features an impact-resistant high-pressure laminate top with upholstered side panels, and the full unit carries a 120 kg net weight with 500 kg total static load capacity, 50000-cycle upholstery abrasion resistance, and 0.014 mg/m³ formaldehyde emission from panel components. Functionally, the system uses bolted interlocking metal brackets for modular connection, allowing flexible layout reconfiguration as needed. The central divider provides adjacent armrest support and a flat surface for small personal items, while non-marking foot caps prevent scratches on polished stone flooring. Fully wrapped upholstered surfaces support quick wipe-down cleaning, and all upholstery and foam meet public space fire retardant standards. The unit uses knock-down construction with pre-drilled connection points, requiring 40 minutes of on-site assembly per set, packaged across two cartons for efficient transport. This seating is suited for high-footfall public spaces including postal service branch lobbies, bank and financial service halls, government administrative service centers, hospital outpatient waiting zones, public transport station waiting areas, and open-plan office reception zones, where its durable construction, easy sanitization, and adaptable layout align with high-traffic operational needs. For procurement, teams should note the knock-down assembly requirement, modular reconfiguration capability, and alignment with public space fire and material safety standards, alongside the efficient 20GP loading capacity of 135 sets at 85% space utilization to support large-scale project planning.

Back-to-Back 4-Seat Modular Public Waiting Seating with Central Divider Specifications
