PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 900 × 1350 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set static weight capacity	300 kg
Table top static load capacity	50 kg
Seat cushion density	45 kg/m³
Backrest foam density	35 kg/m³
Acoustic privacy rating	25 dB
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability Reference	Acceptance target 30000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Polyester contract fabric with 50000-cycle Martindale abrasion resistance
Seat core structure	25 mm plywood inner frame wrapped in high-resilience polyurethane foam
Backrest panels	Vertical fabric-wrapped foam panels with integrated side privacy wings
Integrated lumbar pad	Curved soft foam cushion sewn to lower backrest
Table top	18 mm white solid laminate surface with matte finish
Table column support	80 mm diameter polished 304 stainless steel central tube
Table base plates	10 mm thick brushed stainless steel square flat bases
Seat base glides	Non-marking polypropylene floor glides
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Acoustic privacy screening	Full-height upholstered back and side panels block peripheral distraction and reduce conversational sound travel
Face-to-face collaborative layout	Two seats positioned opposite each other across the central table to support 2-person discussions or focused work
Freestanding modular placement	Units require no floor or wall fixing, and can be repositioned or reconfigured as needed
Upright work support	105-degree angled backrest supports comfortable seated posture for laptop use or short meetings
Floor protection	Low-profile glides under each seat prevent scuffing and allow gentle repositioning without lifting
Table stability design	Dual stainless steel base plates prevent tipping when users lean on table edges
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	1300 x 950 x 1400 mm for seats, 1250 x 750 x 150 mm for table
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office focus zones	Creates semi-enclosed quiet spaces for individual focused work without full room construction
Small collaborative meeting areas	Supports 2-person quick discussions, informal interviews or laptop-based co-working
Corporate breakout spaces	Fits in staff lounge or breakout zones for casual work, coffee meetings or short calls
Co-working space private nooks	Provides individual semi-private work spots for hot-desking environments
Healthcare and public waiting areas	Offers separated, comfortable seating with reduced cross-conversation noise
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture structural strength	EN 16139:2013
Furniture surface resistance	EN 12720:2013

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Lounge seating durability	ANSI/BIFMA X2022
Occasional table stability	ANSI/BIFMA X2021

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture flammability	GB 20286
Formaldehyde emission limits	GB 18580

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture flammability: GB 20286;
2. Formaldehyde emission limits: GB 18580;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LB-AC-2SQT-OR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LB-AC-2SQT-OR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LB-AC-2SQT-OROpen Export Tool

Quick Actions

Post an RFQ

Product Description

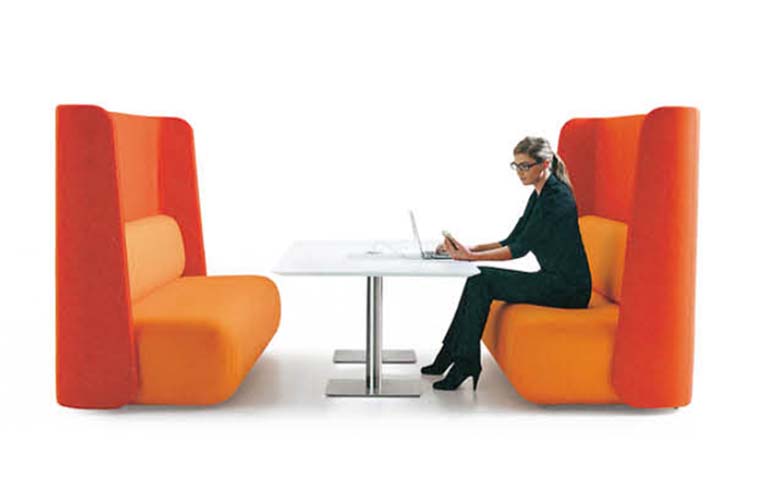

This two-seat acoustic privacy lounge booth set with center meeting table is a modular collaborative seating solution designed to create quiet, semi-enclosed interaction zones without permanent construction. Presented in a two-tone orange upholstery finish, the booth features a high-back, face-to-face layout, with two seats positioned opposite one another across a central integrated table. Tall upholstered backrests extend to include integrated side privacy wings, creating a defined visual boundary that signals private use while blending into surrounding space design. Construction prioritizes durable, commercial-grade materials tailored for high-traffic use. Seating frames are built with bent plywood inner supports wrapped in high-resilience polyurethane foam, with a 90 mm thick seat cushion and 70 mm thick backrest padding, plus a curved integrated lumbar pad positioned at the lower back for targeted support. Seating surfaces are upholstered in polyester contract fabric engineered for heavy use. The central table features an 18 mm matte white solid laminate top, supported by a polished 304 stainless steel central column and dual brushed stainless steel square base plates to resist tipping. Non-marking polypropylene glides fitted to each seat base protect flooring and support easy repositioning. Functional design supports both focused work and casual collaboration. The full-height upholstered panels reduce conversational sound travel and block peripheral visual distractions, delivering a 25 dB acoustic privacy rating. The 105-degree angled backrest supports upright posture for laptop use or short discussions, with lockable recline positions for flexible comfort. As a freestanding unit, the booth requires no wall or floor fixation, allowing teams to rearrange layouts as spatial needs evolve. This booth is well suited for open office focus zones, small collaborative meeting spots, corporate breakout spaces, co-working private nooks, and healthcare or public waiting areas where reduced cross-conversation noise is valued. For procurement planning, the set ships across two cartons, requires 40 minutes of assembly per unit, and holds a total static weight capacity of 300 kg, with the table supporting 50 kg of static load. Buyers should note the unit is unbranded, and plan for repositioning access that accommodates its freestanding modular form.

Two-Seat Acoustic Privacy Lounge Booth Set With Center Meeting Table Specifications
