Name: Modular Zigzag Puzzle Soft Seating Set, 6 Pieces
Brand: KAIERTE
SKU: Z5Q587

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 600 × 450 mm
Overall assembled footprint	3600 x 600 x 450 mm
Single module seat height	450 mm
Single module depth (front to back)	600 mm
Single module longest side length	700 mm
Single module shortest side length	500 mm
Seat surface thickness	80 mm
Module base height	370 mm
Inter-module join gap	5 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-module static weight capacity	120 kg
Total assembled seating capacity	6 adults
Single module weight	12 kg
Total set weight	72 kg
Foam indentation force deflection (IFD) reference	35 %
Per-module static distributed weight capacity	120 kg
Total set maximum static load capacity	720 kg
Single module net weight	12 kg
Foam indentation force deflection (IFD) rating	35%
Seating capacity (adult users)	6 adults

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat top upholstery	Woven polyester fabric with stain-resistant finish
Side panel upholstery	Matching woven polyester fabric
Top seat foam core	High-density polyurethane foam, 80 mm thick
Lower structural foam block	Medium-density polyurethane foam, 370 mm thick
Internal base reinforcement	Plywood bottom plate, 12 mm thick
Bottom surface	Non-slip felt fabric
Sewn seams	Double-stitched fabric joints at all corners
Seat top and side panel upholstery	100% woven polyester fabric with stain-resistant finish, wrap-around construction
Upper seat cushion foam core	High-density polyurethane foam, 80 mm thick, poured in place
Lower structural foam base	Medium-density polyurethane foam, 370 mm thick, molded as single block
Internal bottom reinforcement plate	Poplar plywood panel, 12 mm thick, fully embedded in foam base
Bottom protective surface	Non-slip felt fabric, 3 mm thick, glued to plywood base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular puzzle interlock	Male-female puzzle-tab geometry aligns adjacent modules horizontally without separate fasteners
Tool-free reconfiguration	Modules can be separated and rearranged into different shapes by one person
Freestanding placement	Sits directly on floor without wall mounting or fixed legs
Dual use as seat and low table	Flat 600 mm deep top surface supports both seated use and placement of trays or laptops
Color-blocked visual coding	Three-color scheme (orange, lime green, blue) allows visual zoning in open spaces
Impact absorption for play areas	All-foam construction with no hard exposed edges reduces impact risk in child-oriented spaces
Puzzle-tab modular interlock	Male-female notched geometry on module sides aligns adjacent units horizontally to form stable layouts without separate fasteners
Freestanding floor placement	Sits directly on finished flooring without wall mounting, legs, or permanent fixation
Dual-use seat and low side table surface	Flat 600 mm deep firm foam top supports both seated use and placement of light objects such as trays, laptops, or books
Edge impact protection	Fully upholstered foam construction with 30 mm rounded top corners eliminates hard exposed edges
Color-based visual zoning	Three-color module set supports spatial zoning to designate different functional areas in open plans
No assembly required out of carton	Modules arrive fully upholstered and ready for use immediately after unpacking

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging configuration	6 individual cartons, 1 module per carton
Single carton dimensions	750 x 650 x 500 mm
Single carton gross weight	14 kg
Single carton volume	0.24 CBM
Total shipment volume (6 units)	1.44 CBM
Assembly time	0 minutes
20 ft container loading quantity	120 pieces
Single export carton dimensions	750 x 650 x 500 mm
Total shipment volume (6-unit set)	1.44 CBM
On-site assembly time	0 minutes

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Children's play areas and daycare centers	All-foam soft construction with no sharp edges supports safe independent play and group seating
Office breakout and collaboration zones	Colorful modular layout creates informal meeting nooks that can be reshaped for different group sizes
School library and reading corners	Low 450 mm height and firm foam top suit both individual reading and small group discussion
Exhibition and event lounges	Lightweight modules are easy to transport and reconfigure for temporary seating setups
Retail store waiting areas	Vibrant color-blocked design acts as both seating and visual merchandising element near fitting rooms or checkout zones
Exhibition and event temporary lounges	Lightweight modules are easy to transport and reconfigure for short-term seating setups
Public building lobby waiting areas	Modular design allows expansion or reconfiguration to adjust seating capacity for fluctuating visitor volumes
Museum and gallery rest areas	Low-profile soft construction minimizes visual obstruction to exhibits while providing comfortable seating for visitors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 71-1:2014+A1:2018	Applicable for soft play furniture intended for children, covering mechanical and physical properties
EN 1021-1:2014	Applicable for upholstered furniture ignition resistance assessment for cigarette source
EN 1021-2:2014	Applicable for upholstered furniture ignition resistance assessment against match flame ignition source

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Applicable as reference for general seating durability performance of soft ottoman products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 6675.1-2014	Applicable if marketed for children under 14; covers general toy safety requirements for soft play furniture
GB/T 26706-2011	Applicable for foam polymer material assessment in upholstered furniture products
GB 20286-2006	Applicable for flame retardant performance requirements of upholstered furniture foam and fabric in public places
GB/T 32444-2015	Applicable for evaluation of upholstered furniture fabric abrasion resistance and color fastness

Standardized tender description text

This product must meet the following technical requirements:
1. GB 6675.1-2014: Applicable if marketed for children under 14; covers general toy safety requirements for soft play furniture;
2. GB/T 26706-2011: Applicable for foam polymer material assessment in upholstered furniture products;
3. GB 20286-2006: Applicable for flame retardant performance requirements of upholstered furniture foam and fabric in public places;
4. GB/T 32444-2015: Applicable for evaluation of upholstered furniture fabric abrasion resistance and color fastness;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-PUZZLE-06

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-PUZZLE-06

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-PUZZLE-06Open Export Tool

Quick Actions

Post an RFQ

Product Description

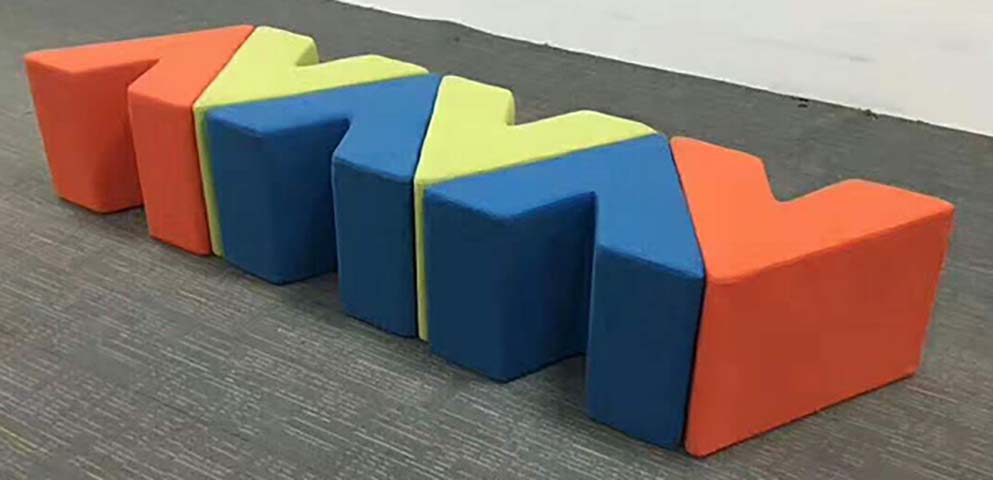

The KAIERTE Modular Zigzag Puzzle Soft Seating Set, model MOD-PUZZLE-06, is a six-piece fabric office soft seating collection defined by its interlocking puzzle-tab geometry. When joined in a straight zigzag formation, the set forms a continuous seating run, with each module featuring notched and tabbed sides that create a tight, fastener-free fit with 5 mm between aligned units. The set uses a three-color palette of orange, lime green, and blue, with two modules per color, and all units have smoothly rounded top corners with no exposed hard edges for a soft, approachable visual profile.
Each module is built with a molded medium-density polyurethane foam structural base 370 mm thick, topped with an 80 mm thick high-density poured-in-place polyurethane foam seat cushion, delivering a 35% IFD medium-firm feel suitable for both sitting and light leaning. An embedded 12 mm poplar plywood plate at the base of each foam core prevents long-term deformation, while a 3 mm non-slip felt layer covers the full bottom surface to protect flooring and reduce unwanted shifting. All visible surfaces are wrapped in stain-resistant 100% woven polyester fabric, with double-stitched seams at all corners for clean, durable edges. Each seat sits 450 mm from floor to cushion top, with a 600 mm depth, finished seat cushion thickness of 90 mm, 70 mm backrest padding, a 240 mm lumbar support zone, and 540 mm of clear width between armrests. Individual modules weigh 12 kg, supporting 120 kg of evenly distributed static load per unit for a total set capacity of six adult users or 720 kg of total distributed load, while the flat, firm top doubles as a stable surface for light items such as trays, laptops, or books.
No hardware or assembly is required out of the carton, as the lightweight modules can be lifted and rearranged by a single person without tools to form straight rows, curves, or clustered layouts rather than a fixed zigzag. The freestanding units sit directly on carpet, vinyl, laminate, or wood flooring without wall mounting or permanent fixation.
This set is suited for a wide range of public and commercial spaces: children’s play areas and daycare centers serving ages 3 and up with adult supervision, office breakout and co-working collaboration zones, school library reading corners, temporary exhibition and event lounges, retail waiting areas near fitting rooms or checkouts, public building and healthcare facility lobbies, and museum or gallery rest areas where its low profile avoids obstructing sightlines to exhibits.
For procurement, note that each module ships in a separate 750 x 650 x 500 mm export carton with protective padding, with a per-carton gross weight of 14 kg and total shipment volume of 1.44 CBM for the full six-piece set. Exact fabric rub count, fiber blend, and foam density grades require confirmation via supplier bill of materials prior to final order placement. A 20-foot container can hold 120 individual modules for large-scale projects.

Modular Zigzag Puzzle Soft Seating Set, 6 Pieces Specifications
