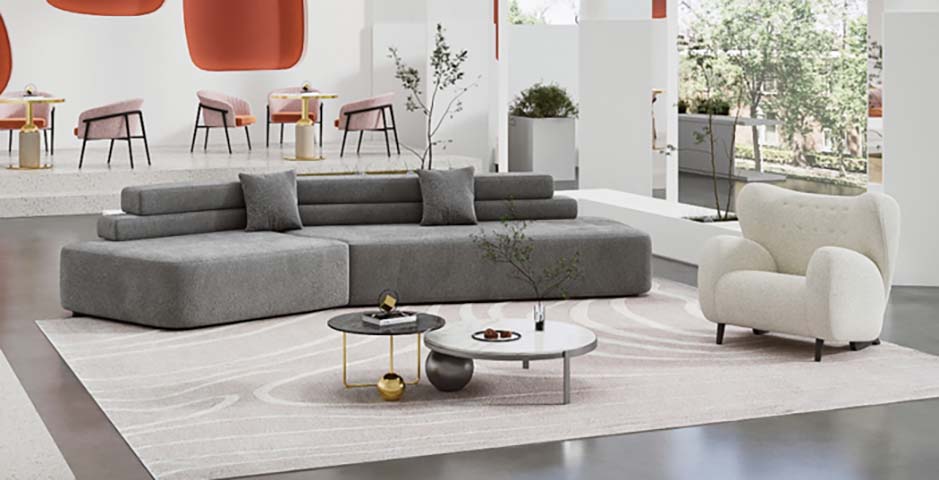

Product supplierGray Fabric Low-Profile L-Shaped Left Chaise Modular Sectional Sofa, 380g/m² gray woven polyester blend
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3290 × 1680 × 670 mm | |
|---|---|---|
| Seat height | 420 mm | |
| Main sofa seat depth | 660 mm | |
| Left chaise depth | 1680 mm | |
| Backrest height above seat | 290 mm | |
| Armrest width | 240 mm | |
| Chaise module width | 1040 mm | |
| Main sofa seating width | 2250 mm | |
| Throw pillow dimensions | 500 x 500 mm | |
| Floor clearance under base | 10 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat weight capacity | 136 kg | |
|---|---|---|
| Total static load capacity | 544 kg | |
| Cushion foam density | 35 kg/m³ | |
| Foam rebound rate | 60% | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Total product weight | 130 kg | |
| Cushion rebound time after unpacking | 72 hours | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 380g/m² gray woven polyester blend | |
|---|---|---|
| Seat cushion core | 35kg/m³ high-density polyurethane foam | |
| Back cushion fill | 28kg/m³ soft polyurethane foam with polyester fiber wrap | |
| Internal frame | Kiln-dried solid hardwood + engineered wood panels | |
| Support system | 4mm sinuous steel springs + 50mm elastic webbing | |
| Base structure | Fabric-wrapped hardwood frame with hidden non-slip floor glides | |
| Throw pillow cover | Matching gray woven polyester with concealed zippers | |
| Seam construction | 10 stitches per inch reinforced polyester stitching | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | 2-piece left-chaise L-shape with metal bracket connection between modules | |
|---|---|---|
| Seating function | 4-person deep lounge seating with chaise recline space | |
| Cushion design | Fixed non-removable seat and back cushions for structured block silhouette | |
| Floor protection | Hidden non-slip plastic glides under base to prevent hard floor scratching | |
| Throw pillow provision | Two matching square throw pillows included for lumbar support | |
| Orientation option | Left-side fixed chaise layout as shown, right-chaise variant available per category standard | |
| Upholstery maintenance | Spot-clean only fabric surface to prevent discoloration | |
| Assembly requirement | Ready to use after unpacking and cushion fluffing, no tool assembly required | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 3 | |
|---|---|---|
| Total shipping gross weight | 145 kg | |
| Total shipment volume | 1.4 CBM | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Modern residential living rooms | Neutral gray low-profile design fits minimalist and contemporary open-plan spaces | |
|---|---|---|
| Office lounge and reception areas | Durable fabric and commercial-grade load rating suit high-traffic public waiting zones | |
| Open-plan coworking common areas | Multi-seat configuration supports informal collaboration and relaxation | |
| Hotel lobby guest seating | Block silhouette and plush deep seating provide upscale lounge comfort for guests | |
| Showroom and model home staging | Clean linear form complements modern interior design presentation | |
| Small to medium open-plan apartments | Compact L-shape maximizes seating without excessive footprint |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture - Strength, durability and safety for domestic seating, applicable for use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance for smouldering cigarette source |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge seating standard for commercial use strength and durability | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and lifecycle |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame quality | |
|---|---|---|
| GB 18401-2010 | National general safety technical code for textile products, applicable to upholstery fabric | |
| GB/T 1952.1-2012 | Test methods for sofas, applicable to durability and load performance testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame quality; 2. GB 18401-2010: National general safety technical code for textile products, applicable to upholstery fabric; 3. GB/T 1952.1-2012: Test methods for sofas, applicable to durability and load performance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
