Product supplierOff-White Curved Modular L-Shaped Sectional Sofa with Integrated Walnut Side Table, 380gsm off-white textured boucle/polyester blend
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

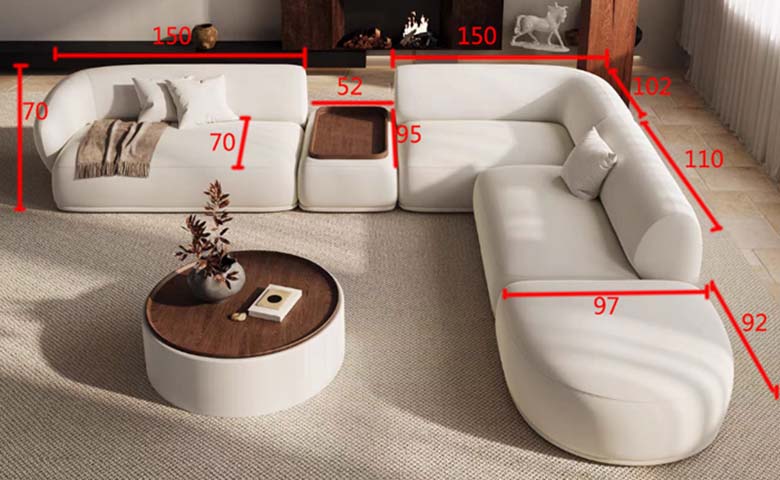

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4140 × 2940 × 700 mm | |
|---|---|---|
| Overall assembled dimensions | 4140 x 2940 x 700 mm | |
| Single straight seating segment length | 1500 mm | |
| Seat height from floor | 420 mm | |
| Seat depth for straight segments | 700 mm | |
| Integrated side table module width | 520 mm | |
| Side table module height | 450 mm | |
| Curved chaise segment overall length | 2120 mm | |
| Chaise end cap width | 970 mm | |
| Chaise seat depth | 920 mm | |
| Armrest radius for curved ends | 250 mm | |
| Backrest height above seat | 280 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product gross weight | 260 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seat foam density | 45D | |
| Fabric abrasion resistance | 40000 double rubs | |
| Cushion rebound rate | 60% | |
| Seam stitch pitch | 8 stitches per inch | |
| Frame structural service life | 10 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery fabric | 380gsm off-white textured boucle/polyester blend | |
|---|---|---|
| Internal load-bearing frame | Kiln-dried solid pine wood, 30mm section thickness | |
| Seat cushion core | 45D high-resilience polyurethane foam, 200mm thick | |
| Backrest cushion core | 30D polyurethane foam wrapped with 50mm down blend layer | |
| Suspension system | 80mm wide sinuous steel springs with 50mm spacing | |
| Integrated side table top | 18mm thick dark walnut wood veneer over MDF core | |
| Side table base upholstery | Matching off-white fabric over 15mm plywood frame | |
| Modular connecting hardware | Powder-coated steel alligator clips | |
| Base bottom glides | Non-marking black plastic floor glides | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection system | Steel clip connectors allow reconfiguration or direction reversal of segments | |
|---|---|---|
| Cushion design | Fixed non-removable seat and back cushions for clean curved profile | |
| Integrated side table function | Level with seat height, provides surface for drinks and small items between seats | |
| Included accessories | 4 matching off-white throw pillows and 1 knit throw blanket | |
| Floor contact design | Hidden non-marking glides prevent hard floor scratches without visible legs | |
| Assembly requirement | Modules only require connecting and placement, no complex on-site upholstery work | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential open-plan living room | Suitable for large open spaces, provides multi-seat lounge space for family use | |
|---|---|---|
| Luxury apartment lounge area | Curved soft aesthetic matches wabi-sabi and modern minimalist interior styles | |
| High-end residential show home | Coordinated matching round coffee table creates a polished staged display | |
| Boutique hotel lobby lounge | Durable upholstery and spacious layout suitable for casual guest seating | |
| Villa casual reception area | Low-profile rounded design reduces sharp corner hazards in family spaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating, applicable for residential use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette source |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame components | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wood furniture, for indoor air quality compliance | |
| GB/T 1952.1-2012 | Performance test standard for upholstered sofas, applicable for strength and durability testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame components; 2. GB 18584-2001: Limit of harmful substances in wood furniture, for indoor air quality compliance; 3. GB/T 1952.1-2012: Performance test standard for upholstered sofas, applicable for strength and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
