PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	118 kg
Desktop distributed load	80 kg
Pedestal top distributed load	60 kg
Drawer load per drawer	25 kg
Open shelf load	20 kg
Recommended user capacity	1 person
Leveling adjustment	10 mm
Drawer slide cycle durability	50000 cycles
Seated work height suitability	760 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate and finish	25 mm E1-class wood-based panel with walnut wood-grain surface and 2 mm matching edge banding
Storage cabinet construction	18 mm wood-based panel with walnut wood-grain fronts and grey laminated end panels
Support legs	50 x 50 mm square steel tube with silver powder-coated finish and plastic leveling glides
Edge and corner protection	Silver aluminum-look extruded or PVC trim with molded corner protectors at exposed top corners
Drawer hardware	Side-mounted full-extension ball-bearing drawer slides with integrated recessed pull profile
Cable grommet	Silver ABS or aluminum rectangular cable port with black brush or slot insert

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main 2200 mm writing desk intersects a 1800 mm return, creating separate computer, writing and meeting zones
Integrated storage	Floor-standing side pedestal includes one open knee-side bay, one vertical cabinet compartment and two horizontal drawers
Cable routing	240 x 100 mm desk port routes monitor and power cables into the rear cabinet or floor outlet
Leveling and installation	Four glided metal legs plus the pedestal base support the desk; glides provide a 10 mm floor-level correction range

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	132 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Provides a 2200 mm writing surface and 1800 mm return for laptop, documents, printer and visitor-side discussion
Manager or supervisor workstation	Combines seated work area with two drawers and cabinet storage for daily files and personal office equipment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desks safety and dimensional requirements	Suitable acceptance reference for work-surface height, strength and safe use
EN 527-2 office desks mechanical safety and test methods	Recommended for desk stability, vertical loading and structural verification
EN 14073-2 storage furniture safety requirements	Applicable reference for the integrated office storage pedestal
EN 14073-3 storage furniture stability and strength	Recommended test basis for cabinet, drawer and shelf performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Recommended North American acceptance reference for desk load, cycle and stability tests
ANSI/BIFMA X5.9 storage units	Recommended for drawer operation, shelf strength and pedestal stability
ANSI/BIFMA e3 furniture sustainability	Optional procurement criterion for panel content, emissions and supply-chain documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural acceptance	Applicable procurement reference for wooden office furniture dimensions, workmanship and stability inspection
GB/T 3325 metal furniture technical requirements	Applicable to the steel support legs, surface coating and structural hardware
GB 18580 formaldehyde emission	Recommended acceptance limit for wood-based panels used in indoor office furniture
GB/T 10357.5 furniture strength and durability	Recommended test basis for desks and storage units under static and durability loads

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural acceptance: Applicable procurement reference for wooden office furniture dimensions, workmanship and stability inspection;
2. GB/T 3325 metal furniture technical requirements: Applicable to the steel support legs, surface coating and structural hardware;
3. GB 18580 formaldehyde emission: Recommended acceptance limit for wood-based panels used in indoor office furniture;
4. GB/T 10357.5 furniture strength and durability: Recommended test basis for desks and storage units under static and durability loads;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-L-2200-WAL-PC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-L-2200-WAL-PC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-L-2200-WAL-PCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

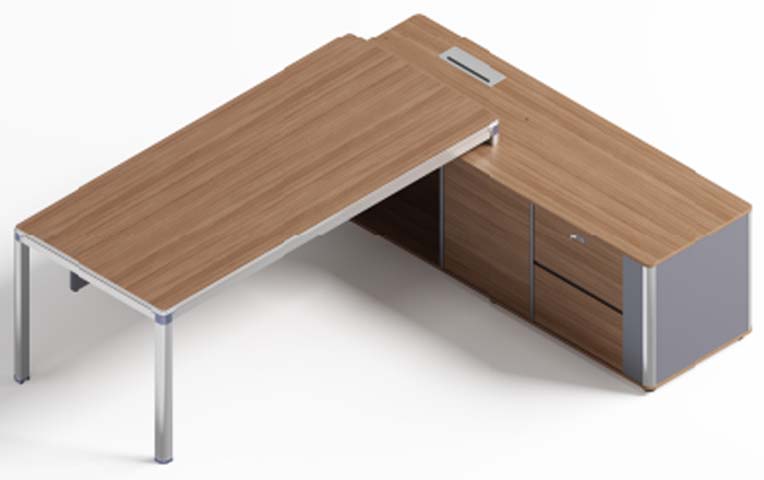

The EXEC-L-2200-WAL-PC is an unbranded L-shaped executive desk designed for single-user office environments where work surface, storage, and cable organization need to be integrated into one coordinated workstation. Its walnut wood-grain finish, grey side panels, silver metal supports, and matching edge details create a structured executive appearance suited to professional interiors. The layout combines a main 2200 mm writing desk with a 1800 mm return. The intersecting sections form distinct zones for computer work, writing, documents, and short discussions at the desk. The finished worktop is 50 mm thick, while the effective knee clearance is 680 mm high and 900 mm wide at the main seat, giving the user a defined seating position within the larger L-shaped configuration. Construction uses a 25 mm E1-class wood-based panel with a walnut wood-grain surface and 2 mm matching edge banding for the worktop. The storage cabinet is built from 18 mm wood-based panel with walnut-look fronts and grey laminated end panels. Support is provided by 50 by 50 mm square steel tube legs with a silver powder-coated finish and plastic leveling glides. Exposed top corners include molded protectors, with silver aluminum-look extruded or PVC trim along the edges. The main support section has an 80 mm profile with a 2 mm metal wall. A floor-standing side pedestal is positioned as part of the workstation rather than as a separate mobile item. It includes an open knee-side bay, a vertical cabinet compartment, and two horizontal drawers. The drawers use side-mounted full-extension ball-bearing slides and an integrated recessed pull profile, providing storage for files, personal office items, and daily equipment. Load capacities are rated at 80 kg distributed across the desktop, 60 kg on the pedestal top, 25 kg per drawer, and 20 kg on the open shelf. Cable management is built into the desk through a 240 by 100 mm port fitted with a silver ABS or aluminum rectangular grommet and a black brush or slot insert. The opening routes monitor and power cables toward a rear cabinet or floor outlet. The stated cable opening is 80 mm in diameter, and the cable tray is 120 mm deep, helping reduce visible cable clutter around the work area. The desk is appropriate for private executive offices, manager offices, and supervisor workstations. The return supports a laptop, printer, reference documents, or a visitor-side discussion position, while the drawers and cabinet keep routine materials close at hand. Procurement planning should account for a substantial, storage-integrated desk: net weight is 118 kg, and assembly and placement are best handled with appropriate staff or delivery support. Leveling glides allow a 10 mm correction for uneven floors. Packaging information in the supplied facts varies between a two-carton reference and a four-carton reference, so shipment configuration should be confirmed before ordering. The four-carton reference lists 180 kg packaged gross weight and 1 cubic meter per set, with a stated assembly time of 40 minutes per set.
