PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	78 kg
Distributed desktop static load	80 kg
Credenza top static load	60 kg
Internal shelf load	25 kg per shelf
Drawer payload	20 kg per drawer
Recommended user weight at workstation	150 kg
Leg leveling adjustment	10 mm
Hardware cycle target	50,000 drawer-opening cycles
Surface durability target	30,000 abrasion cycles
Seating capacity	1 person

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface board	25 mm wood-composite substrate with walnut woodgrain laminate and sealed edge banding
Storage cabinet panels	18 mm dark gray melamine-faced composite panels with matching edge banding
Support legs	Powder-coated square steel tube, charcoal matte finish
Modesty and cable panel	Perforated steel privacy panel with rounded corners and charcoal powder coating
Cabinet base feet	Small angled steel feet integrated with the credenza base
Fasteners and cable hardware	Steel cam locks, corner brackets, screws and plastic cable grommet with brush insert recommended

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed-height executive workstation	750 mm fixed work surface supports standard office chairs and monitor-based work; no lift mechanism is visible
L-shaped work and storage layout	Main writing surface intersects a left storage return, creating task space on the front run and storage access at the side
Integrated credenza storage	Enclosed cabinet below the return is specified with two drawers and one door compartment for files and personal items; front type is not visible
Cable containment system	Desktop grommet feeds cables into the slotted hanging modesty panel, which provides two upper ports and four lower horizontal raceway slots

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging quantity	1 set per 3 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits managers and professionals requiring a 750 mm writing desk, lateral storage return and concealed cable routing
Supervisor or consultant workspace	Provides document storage at the left return while preserving an open knee bay and space for a task chair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety and dimensions	Applicable reference for fixed-height office work surfaces, knee clearance and stability
EN 527-2 mechanical safety requirements	Recommended strength, durability and stability verification for the desk structure
EN 527-3 test methods	Recommended laboratory test basis for desk load, stability and fatigue verification
EN 15372 office furniture strength requirements	Applicable durability reference for non-domestic office desks and storage-connected workstations
EN 14073-3 storage safety and stability	Recommended reference for the integrated filing and credenza cabinet
EN 717-1 formaldehyde emission	Suggested panel-emission reference when boards are supplied by European or export-oriented manufacturers

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Recommended performance basis for desktop loading, leg strength and cyclic use
ANSI/BIFMA X5.9 storage units	Recommended verification basis for drawers, doors, shelves and cabinet stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimension and structural inspection	Applicable acceptance reference for wooden office furniture dimensions, workmanship and stability
GB/T 3325 metal furniture strength and durability	Applicable reference for steel legs, frame joints and powder-coated metal components
GB 18580 formaldehyde emission	Recommended procurement limit for wood-composite panels used in indoor office furniture
GB/T 10357.5 drawer structural strength	Recommended test basis for cabinet drawers, slides and internal storage loading
GB/T 4893.8 wear resistance	Suggested desktop laminate abrasion acceptance method for office work surfaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimension and structural inspection: Applicable acceptance reference for wooden office furniture dimensions, workmanship and stability;
2. GB/T 3325 metal furniture strength and durability: Applicable reference for steel legs, frame joints and powder-coated metal components;
3. GB 18580 formaldehyde emission: Recommended procurement limit for wood-composite panels used in indoor office furniture;
4. GB/T 10357.5 drawer structural strength: Recommended test basis for cabinet drawers, slides and internal storage loading;
5. GB/T 4893.8 wear resistance: Suggested desktop laminate abrasion acceptance method for office work surfaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L1800-ST-WAL-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L1800-ST-WAL-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L1800-ST-WAL-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

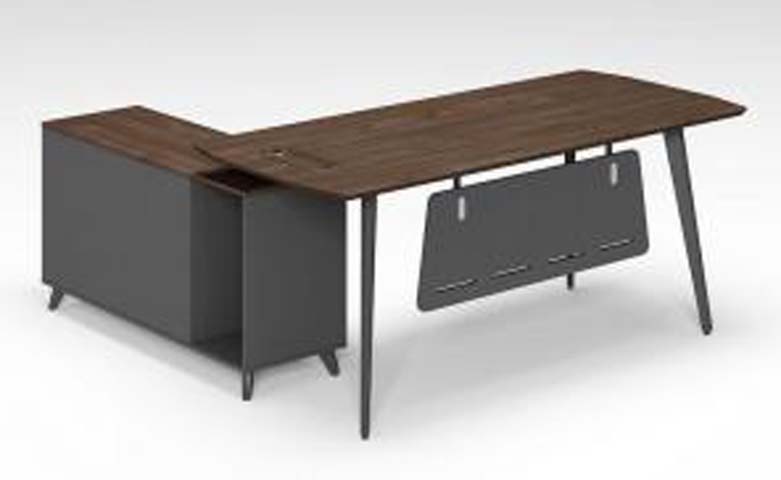

The L-Shaped Executive Desk with Integrated Storage Credenza and Cable Management Panel presents a structured workspace with a walnut-look wood-based work surface, dark gray storage cabinetry, and charcoal matte steel supports. Model ED-L1800-ST-WAL-GRY is offered unbranded, with an L-shaped configuration suited to private offices and professional meeting or consultation settings. Its layout joins the main writing surface with a left storage return. The front run provides the primary task area and an open knee bay, while the side return places enclosed storage within easy reach. A perforated steel modesty and cable panel runs beneath the work zone, featuring rounded corners and a charcoal powder coating that visually links the splayed square-tube legs and cabinet feet. The overall form combines a broad executive worktop with the lower, more compact mass of the credenza, creating clear separation between active desk space and side storage. The 50 mm finished top uses a 25 mm wood-composite substrate, walnut woodgrain laminate, and sealed edge banding. Storage panels are 18 mm dark gray melamine-faced composite board with matching edge banding. Main supports use 80 mm powder-coated square steel tube with a 2 mm metal wall, while the credenza rests on small angled steel feet integrated into its base. Steel cam locks, corner brackets, and screws are specified for assembly. The desk has a net weight of 78 kg and supports a distributed desktop static load of 80 kg, a credenza top load of 60 kg, 25 kg per internal shelf, and 20 kg per drawer. Recommended user weight at the workstation is 150 kg, and the legs offer 10 mm of leveling adjustment. At 750 mm high, the fixed work surface accommodates standard office chairs and monitor-based work without a visible lift mechanism. Each main seating position has 680 mm of knee height and 900 mm of knee width. The return includes two drawers and one door compartment for files and personal items. An 80 mm desktop cable grommet directs cables through a brush-style fitting toward the slotted hanging panel, which provides two upper ports and four lower horizontal raceway slots; the cable tray is 120 mm deep. This desk is appropriate for executives, supervisors, managers, consultants, and professionals who need document storage, a generous writing area, and concealed routing for power and data cables. Buyers should confirm the handed layout, allocate time for assembly, and note that packaging details vary in supplied records, with shipment presented as one set across multiple cartons.

L-Shaped Executive Desk with Integrated Storage Credenza and Cable Management Panel Specifications
