PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Lifting load capacity	80 kg
Storage cabinet shelf load	25 kg per shelf
Lifting speed	32 mm/s
Maximum height-adjustment cycle	2 minutes
Suggested user weight at workstation	120 kg
Product net weight	92 kg
Duty cycle	10 percent, 2 minutes on and 18 minutes off
Service-life target	10,000 up-and-down cycles
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and return surface	25 mm dark walnut-look wood-composite panel with impact-sealed edge banding
Storage cabinet body	18 mm charcoal gray wood-composite panels with matte melamine face
Modesty panel	18 mm charcoal matte panel suspended below the rear worktop
Lifting columns	Two black powder-coated telescopic steel columns between top and credenza
Support legs	Black powder-coated tapered steel legs with floor contact pads
Hardware and fasteners	Steel cam, screw and bracket joining system with adjustable floor glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Electric height adjustment	Dual-column lifting mechanism raises the main top from 720 mm to 1180 mm through a 460 mm travel
Sit-stand working position	720 mm seated position and 1180 mm standing position support shared workstation use
Integrated storage credenza	Fixed side cabinet provides enclosed filing or personal storage beneath the return top
Privacy and cable management	Rear modesty panel conceals the user and includes vertical slots plus a lower perforated cable route

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1850 x 850 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Manager and executive offices	Suits 12 to 18 sqm private offices where computer work, paperwork and side filing occur at one L-shaped station
Open-plan supervisor workstations	Serves shared supervisory positions requiring a standing meeting height, seated work area and concealed storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-LSIT-1800-2CAB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-LSIT-1800-2CAB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-LSIT-1800-2CABOpen Export Tool

Quick Actions

Post an RFQ

Product Description

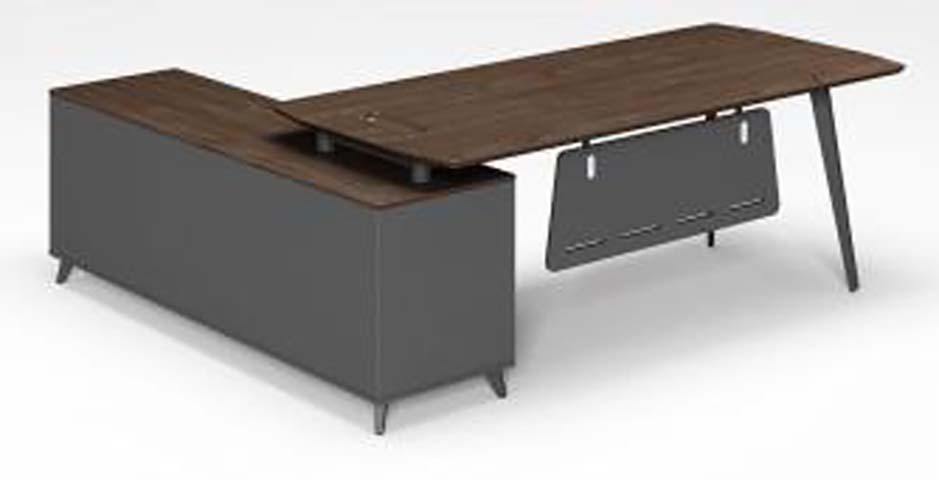

The L-Shaped Height-Adjustable Executive Desk with Storage Credenza combines a generous worktop, side return, and fixed storage cabinet in a coordinated executive workstation. Its dark walnut-look surfaces create a warm visual focus, while charcoal matte cabinetry and a matching modesty panel provide a subdued contrast. Black powder-coated steel legs and telescopic lifting columns give the layout a structured, modern appearance. The L-shaped configuration separates the principal work zone from the return area, supporting computer tasks, paperwork, consultation, and side filing within one station. The main worktop and return are made from 25 mm dark walnut-look wood-composite panels with impact-sealed edge banding. The finished top thickness is 50 mm. Storage is provided by an 18 mm charcoal gray wood-composite cabinet with a matte melamine face, and the rear modesty panel uses an 18 mm charcoal matte panel suspended below the worktop. Two black powder-coated telescopic steel columns sit between the top and credenza, while tapered black powder-coated steel legs with floor contact pads support the assembly. The 80 mm main leg section has a 2 mm metal wall, and steel cams, screws, and brackets join the components with adjustable floor glides. Electric height adjustment is driven by a dual-column lifting mechanism. The main top moves from a 720 mm seated position to a 1180 mm standing position, with 460 mm of travel, a lifting speed of 32 mm per second, and an 80 kg lifting load capacity. This allows the desk to support shared sit-stand use and brief standing discussions. The static distributed desktop load is 100 kg, and the suggested user weight at the workstation is 120 kg. Each main seat position offers 680 mm of effective knee clearance height and 900 mm of width. The fixed side credenza supplies enclosed filing or personal storage beneath the return top, with each shelf rated for 25 kg. At the rear, the modesty panel enhances privacy and includes vertical slots and a lower perforated cable route. An 80 mm cable opening and a 120 mm deep cable tray help guide cabling away from the work surface. This model is suited to manager and executive offices of 12 to 18 square metres, as well as open-plan supervisor workstations requiring seated work, standing meeting height, and concealed storage. Procurement planning should account for the 92 kg net product weight, assembly time of 40 minutes per set, and packaged gross weight of 180 kg per set. The reference shipment comprises four cartons with a packaging volume of one cubic metre per set; the largest carton measures 1850 by 850 by 120 mm. The maximum continuous height-adjustment cycle is two minutes.

L-Shaped Height-Adjustable Executive Desk with Storage Credenza Specifications
