PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Metal leg diameter	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	120 kg
Pedestal cabinet static load	60 kg
Recommended seated user weight	150 kg
Product net weight	95 kg
Leveling adjustment per foot	10 mm
Expected structural service life	10 years
Drawer or door cycle target	50,000 cycles
Recommended maximum monitor load	30 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm engineered-wood substrate with 50 mm visible edge build-up and light oak-effect laminate
Storage and privacy panels	18 mm pale grey melamine-faced engineered-wood panels with sealed edges
Support legs	50 mm powder-coated light-grey cylindrical steel tubes with corner accent collars
Under-frame rails	Rectangular steel support rail finished in pale grey powder coating
Foot pads	Injection-moulded nylon or PP leveling pads with 35 mm floor contact diameter
Fasteners and corner accents	Zinc-plated steel cam bolts, brackets and orange ABS corner protectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Provides a 2200 mm main work zone and a 1300 mm left return for documents, devices or guest consultation.
Under-desk privacy screen	The 1200 mm wide suspended modesty panel shields the seated user while retaining side leg access.
Left pedestal support	The floor-bearing cabinet supports the return and supplies enclosed storage without blocking the central knee bay.
Floor leveling	Four exposed pad feet plus concealed pedestal supports provide 10 mm compensation on level commercial flooring.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	110 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits a private manager office where laptop work, document review and side storage are used simultaneously.
Consultation workspace	The return creates a side meeting surface for one guest while preserving the user's primary seated zone.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements, suitable for commercial desk acceptance.
EN 527-2:2002	Office work tables mechanical safety, stability and strength test methods, applicable to the fixed-height desk.
EN 15372:2016	Durability and strength requirements for non-domestic storage furniture if the pedestal contains doors or drawers.
EN 717-1:2004	Wood-based panel formaldehyde classification by chamber method, relevant to panel material selection.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, edge sealing, stability and finish acceptance.
GB/T 3325-2017	Metal furniture technical requirements, applicable to the steel legs, welded or joined frame and coated metal surfaces.
GB 18580-2017	Formaldehyde emission limit for wood-based panels, relevant to desk-top and cabinet panel procurement.
GB/T 10357.1-2089	Table stability and mechanical test methods, recommended for confirming leg and pedestal stability.
GB/T 10357.5-2011	Table strength test method, recommended for desktop load and support-frame verification.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge sealing, stability and finish acceptance.;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable to the steel legs, welded or joined frame and coated metal surfaces.;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, relevant to desk-top and cabinet panel procurement.;
4. GB/T 10357.1-2089: Table stability and mechanical test methods, recommended for confirming leg and pedestal stability.;
5. GB/T 10357.5-2011: Table strength test method, recommended for desktop load and support-frame verification.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2200-PED-GRY-OAK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2200-PED-GRY-OAK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2200-PED-GRY-OAKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

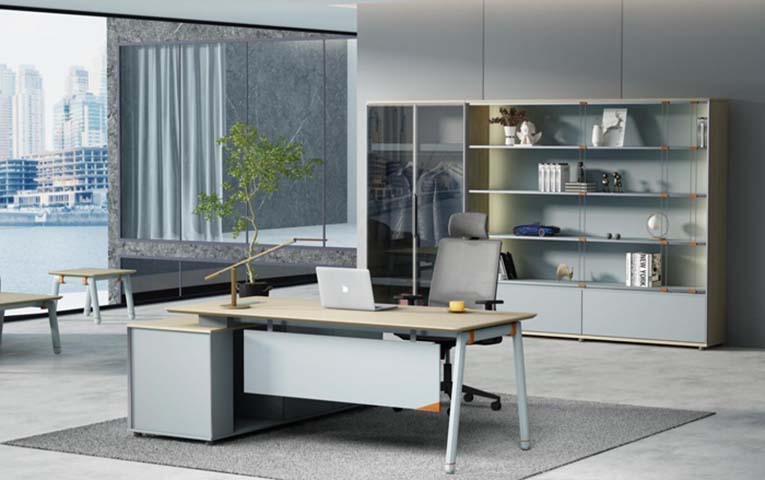

The L-Shaped Executive Office Desk with Left Storage Pedestal and Modesty Panel presents a modern executive workstation with a clean light oak-effect worktop contrasted by pale grey storage and support elements. Its layout pairs a 2200 mm main work zone with a 1300 mm left return, giving the user a primary desktop for focused work and a secondary surface for documents, devices, or a guest consultation position. A 1200 mm wide suspended modesty panel sits beneath the work area to provide privacy while preserving side access for leg movement and seating. The desk is built with a 25 mm engineered-wood substrate beneath the worktop, finished with light oak-effect laminate and a 50 mm visible edge build-up. Storage and privacy panels use 18 mm pale grey melamine-faced engineered wood with sealed edges. The visual structure is supported by 50 mm powder-coated light-grey cylindrical steel legs, rectangular pale grey steel under-frame rails, orange ABS corner protectors, and zinc-plated steel cam bolts and brackets. Each main seating position offers 680 mm of knee clearance height and 900 mm of knee clearance width. A floor-bearing left pedestal supports the return and adds enclosed storage without obstructing the central knee bay. The workstation includes an 80 mm diameter cable opening and a cable tray with 120 mm depth, supporting orderly routing for office equipment. Leveling is handled through four exposed pad feet and concealed pedestal supports, with 10 mm of adjustment for level commercial flooring. The injection-moulded nylon or PP pads have a 35 mm floor contact diameter. Rated capacity includes 120 kg distributed static load on the desktop, 60 kg static load in the pedestal cabinet, and a recommended seated user weight of 150 kg. The drawer or door cycle target is 50,000 cycles, and the expected structural service life is 10 years. This desk is suited to private manager offices, executive workrooms, and consultation workspaces where computer-based tasks, paperwork, storage, and brief one-to-one discussions occur in the same area. Its L-shaped configuration is particularly appropriate when the user needs a defined primary seat plus a side surface rather than relying on separate meeting furniture. Procurement planning should account for the left-return orientation, the 95 kg net weight, and the floor-bearing pedestal placement. The product is unbranded and supplied under model EDU-L2200-PED-GRY-OAK. Packaging references vary between a two-carton configuration and a four-carton configuration with 180 kg packaged gross weight, so delivery and receiving requirements should be confirmed before order placement. Installation planning should also allow for the stated reference assembly time of 40 minutes per set and access through commercial doorways and lifts using the confirmed shipment dimensions.

L-Shaped Executive Office Desk with Left Storage Pedestal and Modesty Panel Specifications
