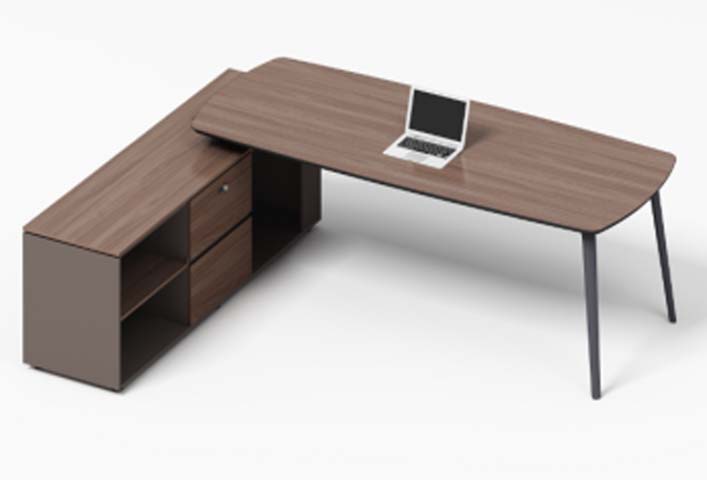

Product supplierL-Shaped Executive Desk with Integrated Storage Credenza, 35 mm wood-grain high-pressure laminate board with black sealed edge
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop load | 80 kg | |
|---|---|---|
| Credenza top load | 40 kg | |
| Drawer load per drawer | 15 kg | |
| Open shelf load | 10 kg per shelf | |
| Product net weight | 95 kg | |
| User capacity | 1 person | |
| Suggested pedestal/cabinet stability load | 120 kg total | |
| Surface impact and abrasion acceptance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 35 mm wood-grain high-pressure laminate board with black sealed edge | |
|---|---|---|
| Storage cabinet | 18 mm taupe and wood-grain laminate particleboard or MDF carcass | |
| Drawer fronts | Matching wood-grain laminate panels with a small round metal pull on the upper drawer | |
| Open shelving | Dark laminate interior with one horizontal shelf dividing two open compartments | |
| Support legs | Dark gray powder-coated round steel tube legs with two visible legs on the free worktop end | |
| Base and connectors | Floor-contacting laminate end panel plus internal cam-fix and screw connector construction |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left return combines two open shelves, two stacked drawers and a closed support bay for files and equipment | |
|---|---|---|
| Seated work mode | The 750 mm-high main top provides a 1200 mm knee bay for an executive chair, while the credenza supports the inner end | |
| Workstation layout | L-shaped layout separates the laptop-facing main worktop from the side storage and printer surface | |
| Floor mounting | Freestanding installation using the storage credenza as one support and two metal legs at the opposite end; no wall fixing shown in the image |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 2280 x 760 x 95 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suitable for a manager or director office where the 2200 mm worktop handles a laptop, monitor and documents, while the return provides nearby files and printer storage. | |
|---|---|---|
| Administrative workstation | Suitable for administrative staff needing a seated L-shaped workflow with open shelves for daily materials and drawers for secure or categorized stationery storage. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
