PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	120 kg
Side cabinet top static load	50 kg
Drawer-equivalent storage load	30 kg per storage level
Recommended user weight at workstation	150 kg
Suggested occupancy	1 person
Net weight reference	135 kg
Surface vertical deflection limit	L/200
Drawer/door cycle reference	50,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop	35 mm melamine-faced engineered wood panel with sealed edges and white finish
Storage credenza	Gray melamine-faced engineered wood panels with white edge and corner trim
Modesty panel	Gray painted or melamine-faced panel with a flat privacy face
Support legs	Round white powder-coated steel legs with dark non-marking foot pads
Edge protection	ABS or PVC edge banding around exposed desktop and cabinet edges
Hardware	Steel hinges, drawer runners, connectors and leveling glides in black or zinc finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Work layout	L-shaped layout provides a 2200 mm primary work surface and an 1800 mm side return for documents or devices
Storage support	Left return integrates a floor-standing cabinet body suited to drawers or door storage with a 30 kg per-level reference load
Cable management	Desktop can be fitted with an 80 mm cable grommet and rear under-top wire tray; no preinstalled grommet is visible in the image
Seated clearance	Central knee bay provides 1100 mm width and 700 mm height for a task chair, while the left return supports storage access

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suited to private manager and director offices where laptop work, paperwork and side storage occur at one 750 mm workstation
Open management zone	Can be placed in a high-end open office or partner workspace with an ergonomic chair and task lamp, leaving a 1000 mm rear access zone

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2200-GW-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2200-GW-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2200-GW-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

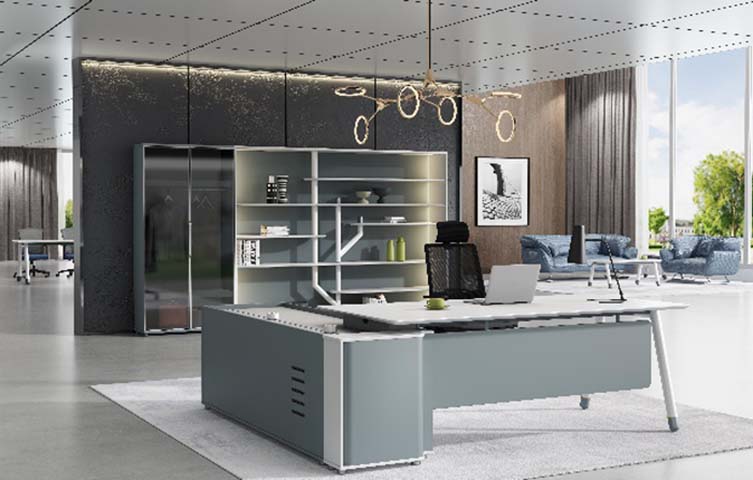

The L-Shaped Executive Desk with Integrated Storage Credenza combines a generous corner workstation with built-in cabinet support, giving a manager, director, or private-office user a coordinated surface for technology, paperwork, and storage. Its unbranded EDU-L2200-GW-01 design presents a white desktop, gray storage cabinetry, white trim, round white powder-coated steel legs, and a flat gray privacy panel. The contrast creates a clean modern executive appearance while the L-shaped arrangement separates focused work at the main surface from document or device placement on the side return. The primary work surface spans 2200 mm and the return spans 1800 mm, with a central knee bay providing 1100 mm of width and 700 mm of height for a task chair. The floor-standing cabinet body occupies the left return and is suited to drawer or door storage, keeping frequently used materials within reach without consuming the main writing area. Construction uses melamine-faced engineered wood for the desk top and storage cabinets, a painted or melamine-faced modesty panel, and round steel legs fitted with dark non-marking foot pads. Exposed desktop and cabinet edges are protected by ABS or PVC edge banding, while steel hinges, drawer runners, connectors, and leveling glides support everyday office use. The desktop panel is specified with a 50 mm finished top thickness, and the support leg uses an 80 mm main section with a 2 mm metal wall. Functional provisions include an 80 mm cable opening option and a rear under-top wire tray with 120 mm depth, helping route power and data cabling away from the work surface. The published load references are 120 kg distributed static load on the desktop, 50 kg on the side cabinet top, and 30 kg per storage level. The workstation is intended for one person and provides an effective main-seat knee clearance of 680 mm high and 900 mm wide. The desk is appropriate for private executive offices, director rooms, and high-end open management or partner workspaces. In open settings, it should be planned with a suitable ergonomic chair, task lighting, and clearance behind the seating position for access. Procurement teams should note the fixed-height, single-user configuration, the separate return or pedestal packaging, and the need to confirm cabinet interior layout and cable grommet supply before ordering. Delivery planning should allow for a substantial packaged weight and multiple cartons, with installation supported by the leveling glides and referenced assembly time of 40 minutes per set.

L-Shaped Executive Desk with Integrated Storage Credenza Specifications
