PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	1800 x 1600 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	78 kg
Distributed desktop load	80 kg
Credenza top load	45 kg
Internal shelf load per level	20 kg
Recommended user capacity	1 person
Drawer slide rating if fitted	35 kg per drawer
Leveling adjustment	10 mm
Hardware cycle target	50,000 drawer or door cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and return top	25 mm melamine-faced particleboard or MDF substrate with matching edge banding
Storage cabinet carcass	18 mm melamine-faced engineered-wood panels with light gray exterior finish
Modesty panel	18 mm light gray engineered-wood privacy panel with exposed edge protection
Leg and support frame	Powder-coated steel square tube with splayed front legs and rear support rails
Cable access fitting	Rectangular brushed-finish plastic or aluminum grommet plate with recessed slots
Hardware and base	Steel fixing brackets, adjustable plastic or steel leveling feet, and black plinth pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Main desk and right-hand return provide separate laptop, writing and document zones within one connected workstation
Cable routing	Desktop cable port feeds wires below the work surface toward the return cabinet for computer and charging equipment
Privacy and leg screening	Rear modesty panel blocks underside view while retaining open front knee access for a task chair
Storage and equipment support	Floor-standing credenza supports the return top and provides door, shelf or drawer storage behind the visible ventilated end panel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1860 x 760 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Provides a seated laptop position, side meeting surface and personal storage for managers or directors
Open-plan supervisor workstation	Suits team leaders needing a large document surface, cable control and under-desk privacy without a full private room

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1	Applies to office work desk dimensions, safety and structural requirements for the seated work surface
EN 527-2	Provides mechanical safety, stability and durability test methods for office desks
EN 15372	Applies to strength, durability and stability requirements for non-domestic storage furniture
EN 120	Defines perforator formaldehyde determination for wood-based panels
EN 14073-2	Applies to safety requirements for office storage furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5	Desk and table products standard covering load, stability and durability tests
ANSI/BIFMA X5.9	Storage units standard covering strength, stability and drawer or shelf cycling
BIFMA E3 level	Sustainability framework applicable to furniture materials, energy, human health and social responsibility

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324	Applicable general technical specification for wooden furniture dimensions, workmanship and structural stability
GB/T 3325	Applicable metal furniture technical requirements for steel legs, rails and coated metal surfaces
GB/T 35607	Applicable furniture green-product evaluation covering restricted substances and product documentation
GB 18580	Applicable formaldehyde emission limit for wood-based panels used in the desk and cabinet
GB/T 10357.5	Applicable furniture table strength and durability test method for desktop and support loading

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324: Applicable general technical specification for wooden furniture dimensions, workmanship and structural stability;
2. GB/T 3325: Applicable metal furniture technical requirements for steel legs, rails and coated metal surfaces;
3. GB/T 35607: Applicable furniture green-product evaluation covering restricted substances and product documentation;
4. GB 18580: Applicable formaldehyde emission limit for wood-based panels used in the desk and cabinet;
5. GB/T 10357.5: Applicable furniture table strength and durability test method for desktop and support loading;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L1800-1600-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L1800-1600-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L1800-1600-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

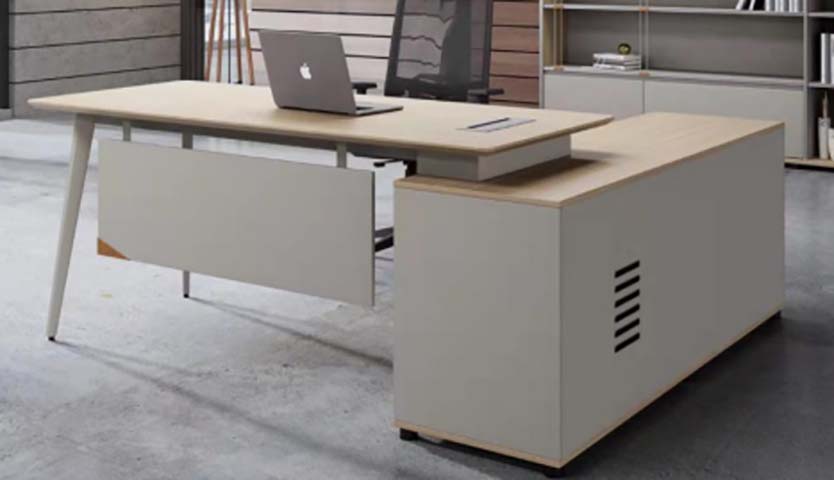

The ED-L1800-WG is an unbranded executive L-shaped office desk that combines a main workstation, right-hand return, and floor-standing storage credenza in one coordinated layout. Its light oak and gray finish gives the desk a restrained executive appearance, with the melamine-faced work surfaces contrasted by a light gray modesty panel and black-toned metal support structure. The angled front legs and rear support rails create a structured modern profile, while the credenza anchors the return and adds visual weight on the right side. Overall, the desk occupies an 1800 x 1600 x 750 mm footprint and is intended for one user. The desktop and return top use 25 mm melamine-faced particleboard or MDF with matching edge banding, presented under a finished top thickness of 50 mm. The storage cabinet is built from 18 mm melamine-faced engineered-wood panels with a light gray exterior, and the 18 mm modesty panel includes exposed edge protection. Support is provided by a powder-coated steel square-tube frame with splayed front legs, rear rails, steel fixing brackets, adjustable leveling feet, and black plinth pads. The leveling adjustment is 10 mm, helping the desk sit evenly on imperfect floors. Functionally, the L-shaped layout separates laptop, writing, and document areas while keeping everything within reach. A desktop cable port with an 80 mm opening routes wires below the surface toward the return cabinet, and the 120 mm-deep cable tray supports tidy routing for computer and charging equipment. The rear modesty panel screens the under-desk area without reducing the open front knee space, which provides 680 mm of height and 900 mm of width at the main seat. The credenza supports the return top and offers door, shelf, or drawer storage behind a visible ventilated end panel. Load capacity is rated at 80 kg distributed across the desktop, 45 kg on the credenza top, 20 kg per internal shelf level, and 35 kg per drawer where drawers are fitted. This desk is well suited to private executive offices where a manager or director needs a focused laptop position, a side meeting or document surface, and personal storage. It also works as an open-plan supervisor workstation for team leaders who require cable control, a generous work surface, and under-desk privacy without a fully enclosed office. Procurement teams should plan for a substantial workplace installation: the desk weighs 78 kg net, packaging is documented at 180 kg across four cartons with a volume of 1 m³ per set, and assembly time is referenced at 40 minutes per set. Buyers should confirm the exact storage configuration, desk orientation, return clearance, chair clearance, and available delivery access before ordering, while noting that the product is supplied without a specified brand.

L-Shaped Executive Office Desk with Storage Credenza and Cable Port Specifications
