Name: L-Shaped Executive Workstation with Side Storage Cabinet and Cable Port
Brand: GENUOWA
SKU: EMY2V7

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed load	80 kg
Side cabinet top load	40 kg
Drawer dynamic load	25 kg
Adjustable leveling range	15 mm
Product net weight	78 kg
Seating capacity	1 person
Recommended monitor configuration	2 monitors up to 27 in
Drawer slide cycle rating	50000 cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and cabinet boards	25 mm wood-based panel with light oak-grain melamine facing and sealed exposed edges
Dark gray drawer front and accent panels	Melamine-faced panel with dark gray matte finish
Support leg	50 mm square powder-coated steel tube with floor-contact end cap
Cable grommet	White plastic rectangular desk grommet with black brush/slot insert
Drawer slides and fasteners	Side-mounted steel ball-bearing slides with zinc-plated or black-coated hardware
Leveling feet	Nylon or PP adjustable glides with threaded steel insert

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	The left return joins the 1800 mm main top to create a corner workstation with separate task and storage zones
Cable management	A 160 x 80 mm desktop grommet routes monitor and power cables into the under-desk area
Under-desk storage	The dark gray suspended unit provides a lockable drawer/modesty-front storage zone beneath the main top
Side equipment storage	The floor cabinet supports the return and includes side ventilation slots for computer equipment or document storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton size	1850 x 760 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for managers and professionals requiring a main computer surface, side return, and integrated file storage in one footprint
Private workstation or reception back office	Fits a private office, supervisor room, or administrative workspace where cable routing and under-desk storage are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety suggestion	EN 527
Mechanical test suggestion	EN 527
Formaldehyde emission suggestion	EN 13986

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission suggestion	GB/T 39600 E1
Office desk structural suggestion	GB/T 3324
Surface resistance suggestion	GB/T 4893.4
Hardware coating suggestion	GB/T 10125

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission suggestion: GB/T 39600 E1;
2. Office desk structural suggestion: GB/T 3324;
3. Surface resistance suggestion: GB/T 4893.4;
4. Hardware coating suggestion: GB/T 10125;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LDSK-1800-CAB-L

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LDSK-1800-CAB-L

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LDSK-1800-CAB-LOpen Export Tool

Quick Actions

Post an RFQ

Product Description

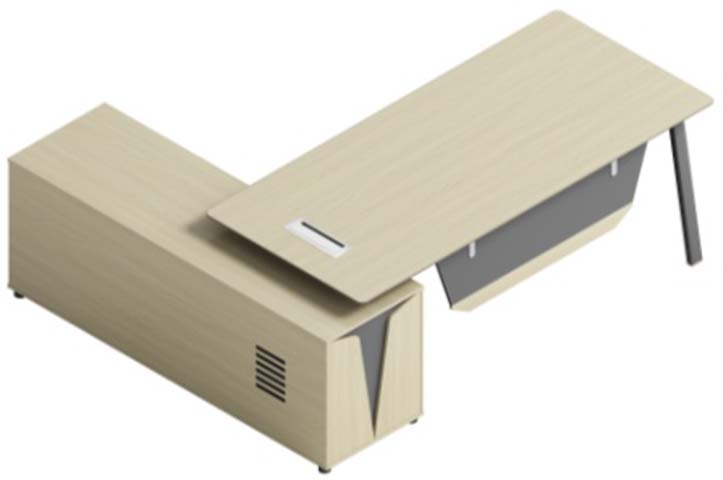

The GENUOWA LDSK-1800-CAB-L is an L-shaped executive workstation designed for one user, combining an expansive main work surface, a left return, and integrated storage in a coordinated floor-standing layout. Its light oak-grain worktop and cabinet boards provide a warm professional appearance, while dark gray matte drawer fronts and accent panels add a restrained visual contrast. The corner configuration separates the primary task zone from the side storage and support area, supporting a focused desktop, document space, and equipment location without requiring separate furniture pieces. Construction uses 25 mm wood-based particle board with light oak-grain melamine facing and sealed exposed edges. The finished top has a stated thickness of 50 mm. The support structure includes a 50 mm square powder-coated steel tube with a floor-contact end cap, paired with an 80 mm main leg section having a 2 mm metal wall. Adjustable nylon or PP glides with threaded steel inserts provide 15 mm of leveling adjustment, helping the desk adapt to uneven floors. Drawer operation uses side-mounted steel ball-bearing slides, with zinc-plated or black-coated hardware. Practical features are built into the workstation rather than added as separate accessories. A 160 by 80 mm white plastic rectangular desk grommet with a black brush or slot insert routes monitor and power cables from the desktop into the under-desk area, where a cable tray with 120 mm depth helps contain leads. The stated cable opening is 80 mm in diameter. Beneath the main top, a dark gray suspended unit offers a lockable drawer and modesty-front storage zone. The floor-standing side cabinet supports the return and includes side ventilation slots, making it suitable for computer equipment or document storage. The desk is rated for an 80 kg distributed desktop load, a 40 kg load on the side cabinet top, and a 25 kg dynamic drawer load. Each main seating position provides 680 mm of knee height and 900 mm of knee width. The recommended setup supports two monitors up to 27 inches. With a net weight of 78 kg, the workstation is intended for executive offices, private offices, supervisor rooms, reception back offices, and administrative workplaces needing cable management and secure storage in one footprint. Procurement teams should plan for assembly and receiving space. Reference assembly time is 40 minutes per set. Packaging records vary between a two-carton set and a four-carton configuration with 180 kg packaged gross weight and 1 cubic meter total volume, so shipment details should be confirmed at order stage.

L-Shaped Executive Workstation with Side Storage Cabinet and Cable Port Specifications
