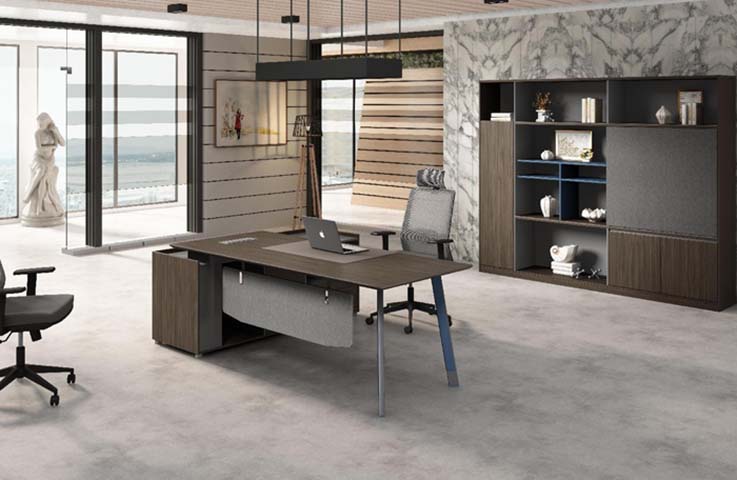

Executive Office Desk with Left Storage Pedestal and Gray Modesty Panel (model EDK-LPED-2400-1050) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2400 × 1050 × 750 mm. Materials: 25 mm E1-grade particleboard core with 1.0 mm wood-grain melamine face and 2 mm PVC edge banding. Load capacity: 120 kg. Product Features: modern,executive,style,rectangular,workstation,left,pedestal,storage,steel,leg,frame,panel,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | EDK-LPED-2400-1050 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Net weight | 118 kg | Distributed desktop load | 120 kg |
| Pedestal cabinet load | 45 kg | Single shelf or CPU bay load | 20 kg |
| Seated user capacity | 1 person | Visitor meeting capacity | 2 people |
| Metal frame static load target | 220 kg | Drawer slide cycle target | 50000 cycles |
| Edge impact and surface service target | 5-year commercial office use | Top Static Load Reference | 150 kg uniformly distributed |
| Desktop substrate and finish | 25 mm E1-grade particleboard core with 1.0 mm wood-grain melamine face and 2 mm PVC edge banding | Built-up top profile | 50 mm finished composite edge made from melamine board and matching edge lipping |
| Left pedestal cabinet | 18 mm wood-grain melamine particleboard panels with black recessed side or back panel | Modesty panel | 25 mm upholstered gray fabric panel over composite board backing |
| Leg frame | 60 x 60 mm powder-coated square steel tube with matte gray and dark blue-gray finish | Hardware and connectors | Steel cam-and-bolt fittings, adjustable leveling glides and powder-coated mounting plates |
| Primary workstation layout | Left fixed storage pedestal supports one side while two metal legs keep the center and visitor side open for leg room. | Storage and CPU placement | Pedestal-side cabinet and open under-desk bay provide file storage or CPU placement without blocking the central knee opening. |
| Privacy screening | Gray suspended modesty panel covers the rear underside of the seated zone while retaining a 250 mm floor gap. | Cable routing | Single 80 mm desktop grommet and under-top tray route power and data cables from laptop or monitors toward the floor or wall outlet. |
| Carton count | 3 flat-pack cartons | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive office | Suitable for a manager or director office where the left pedestal stores files and the broad top supports a laptop, monitors and document review. | Private meeting workstation | Fits a room with one or two visitor chairs because the open front leg space allows short discussions across the desk. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 118 kg | |
|---|---|---|
| Distributed desktop load | 120 kg | |
| Pedestal cabinet load | 45 kg | |
| Single shelf or CPU bay load | 20 kg | |
| Seated user capacity | 1 person | |
| Visitor meeting capacity | 2 people | |
| Metal frame static load target | 220 kg | |
| Drawer slide cycle target | 50000 cycles | |
| Edge impact and surface service target | 5-year commercial office use | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25 mm E1-grade particleboard core with 1.0 mm wood-grain melamine face and 2 mm PVC edge banding | |
|---|---|---|
| Built-up top profile | 50 mm finished composite edge made from melamine board and matching edge lipping | |
| Left pedestal cabinet | 18 mm wood-grain melamine particleboard panels with black recessed side or back panel | |
| Modesty panel | 25 mm upholstered gray fabric panel over composite board backing | |
| Leg frame | 60 x 60 mm powder-coated square steel tube with matte gray and dark blue-gray finish | |
| Hardware and connectors | Steel cam-and-bolt fittings, adjustable leveling glides and powder-coated mounting plates |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Primary workstation layout | Left fixed storage pedestal supports one side while two metal legs keep the center and visitor side open for leg room. | |
|---|---|---|
| Storage and CPU placement | Pedestal-side cabinet and open under-desk bay provide file storage or CPU placement without blocking the central knee opening. | |
| Privacy screening | Gray suspended modesty panel covers the rear underside of the seated zone while retaining a 250 mm floor gap. | |
| Cable routing | Single 80 mm desktop grommet and under-top tray route power and data cables from laptop or monitors toward the floor or wall outlet. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 3 flat-pack cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suitable for a manager or director office where the left pedestal stores files and the broad top supports a laptop, monitors and document review. | |
|---|---|---|
| Private meeting workstation | Fits a room with one or two visitor chairs because the open front leg space allows short discussions across the desk. |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety, strength and durability requirements for a commercial desk used with display-screen equipment. | |
|---|---|---|
| EN 527-2:2014 | Office worktable dimensional requirements, including seated work height and leg-clearance verification. | |
| EN 15372:2016 | Strength, durability and stability requirements for non-domestic storage furniture used in the pedestal cabinet. | |
| EN 717-1:2004 | Wood-based panel formaldehyde emission classification by chamber method for board procurement acceptance. | |
| EN 12521:2015 | Safety, strength and durability reference for domestic tables, useful only where the supplier targets dual-market compliance. |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, stability and workmanship. | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture technical requirements, applicable to the steel leg frame, coating integrity and structural performance. | |
| GB 18580-2017 | Formaldehyde emission requirement for wood-based panels used in the desktop and cabinet components. | |
| GB/T 10357.1-2013 | Table strength and dimensional test method, suitable for desktop load, leg strength and stability acceptance. | |
| GB/T 10357.5-2011 | Furniture surface physical and chemical test method, suitable for melamine abrasion, impact and stain resistance checks. |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, stability and workmanship.; 2. GB/T 3325-2017: Metal furniture technical requirements, applicable to the steel leg frame, coating integrity and structural performance.; 3. GB 18580-2017: Formaldehyde emission requirement for wood-based panels used in the desktop and cabinet components.; 4. GB/T 10357.1-2013: Table strength and dimensional test method, suitable for desktop load, leg strength and stability acceptance.; 5. GB/T 10357.5-2011: Furniture surface physical and chemical test method, suitable for melamine abrasion, impact and stain resistance checks.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
