PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static desktop load	100 kg
Drawer static load	25 kg
Open-cubby shelf load	20 kg
Side-cabinet top load	40 kg
Suggested seated users	1
Net weight	75 kg
Recommended floor loading	150 kg
Durability target	50,000 drawer cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm engineered-wood board with walnut-grain melamine face and sealed edge banding
Storage cabinet	18 mm charcoal-gray melamine-faced engineered-wood panels with matching edge tape
Legs and edge frame	50 mm round steel tubes with silver powder-coated or anodized finish
Drawer front	Charcoal melamine panel with centered recessed pull and gray side panels
Hardware	Steel connecting brackets, cam-and-bolt panel joints and adjustable plastic glides
Cable fitting	Silver or white rectangular plastic/metal cable-access cover in the rear worktop

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Primary work zone	The 750 mm-high main surface supports seated computer and writing tasks with a 680 mm knee clearance.
L-shaped side return	The right return creates a secondary work or printer zone and is supported by the full-height storage cabinet.
Storage layout	One open upper cubby and one lower enclosed drawer provide quick-access and concealed office storage.
Cable management	The rear rectangular cable slot routes monitor and power cables from the worktop toward the under-desk area.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office	Suits a manager or executive office where one user needs a large computer surface plus immediate file storage.
Open-plan workstation	Can be used in a dedicated supervisor station because the return separates writing, printer and storage zones.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-LS-1600-1600-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-LS-1600-1600-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-LS-1600-1600-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

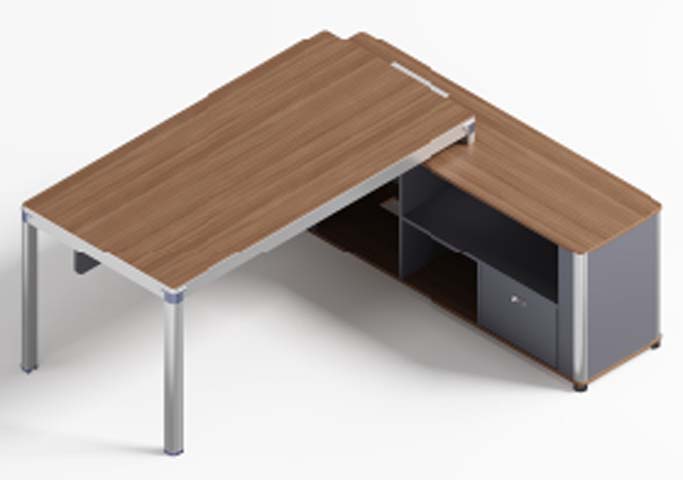

The L-Shaped Executive Workstation with Integrated Side Storage Cabinet is a single-user executive desk designed for focused computer work, writing, and nearby storage. Model EDU-LS-1600-GRY is offered unbranded, giving commercial specifiers a neutral solution for private offices or supervisor positions in open-plan environments. Its L-shaped layout pairs a main work surface with a right-hand return, creating distinct zones for daily tasks and a printer, reference materials, or secondary work. The return is supported by a full-height side cabinet, which visually anchors the workstation and helps separate the work zones without requiring a separate pedestal. The worktop uses walnut-grain engineered wood with sealed edge banding, contrasted by charcoal-gray melamine-faced engineered-wood storage panels with matching edge tape. The drawer front follows the same charcoal finish and includes a centered recessed pull with gray side panels, contributing to a clean, coordinated appearance. Silver-finish round steel tube legs and an edge frame provide an open commercial look, while steel connecting brackets and cam-and-bolt panel joints tie the wood and metal components together. Adjustable plastic leveling glides help the desk adapt to uneven floors. Functional details support regular office use. The main surface is configured for seated tasks and provides knee clearance for one user. The storage layout combines an open upper cubby for quick access with a lower enclosed drawer for concealed office items. A rear rectangular cable-access slot routes monitor and power cables from the worktop toward the under-desk area, and the fitting is supplied with a silver or white rectangular plastic or metal cover. Published load capacities include 100 kg static load for the desktop, 25 kg for the drawer, 20 kg for the open-cubby shelf, and 40 kg for the side-cabinet top. Recommended floor loading is 150 kg. The product is well suited to a manager or executive office where one person needs a generous computer surface and immediate storage. It also works as a dedicated supervisor station in an open plan, with the return helping divide writing, equipment, and storage functions. Procurement teams should plan for assembly and coordinated delivery: the product is supplied as a set in multiple cartons, with the main top and return or pedestal packed separately, and a reference assembly time of 40 minutes per set. Specification records note packaged logistics information that may vary by shipment, including carton count and gross weight, so receiving and floor-protection arrangements should be confirmed at order stage. The desk has a net weight of 75 kg and should be selected with room circulation, seating width, and cable routing in mind.

L-Shaped Executive Workstation with Integrated Side Storage Cabinet Specifications
