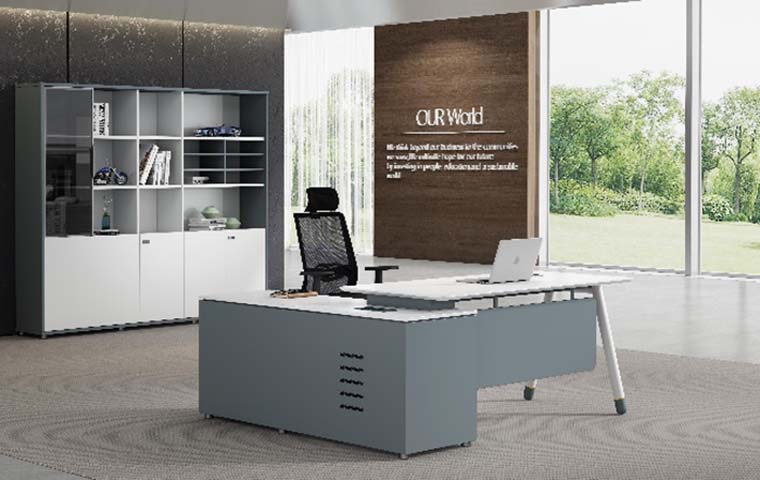

Product supplierL-Shaped Executive Workstation with Modular Storage Cabinet, 25 mm melamine-faced particleboard or MDF with PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load | 80 kg | |
|---|---|---|
| Fixed pedestal panel load | 50 kg | |
| Workstation seating capacity | 1 person | |
| Workstation net weight | 115 kg | |
| Open shelf static load | 20 kg per shelf | |
| Closed cabinet base load | 40 kg per compartment | |
| Leveling adjustment | 10 mm | |
| Warranty target | 5 years | |
| Color options | 2 finishes | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panel | 25 mm melamine-faced particleboard or MDF with PVC edge banding | |
|---|---|---|
| Vertical panels | 18 mm grey melamine-faced engineered board with sealed edges | |
| Support legs | 50 mm powder-coated round steel tube with dark nylon foot caps | |
| Storage cabinet carcass | 18 mm laminated engineered board in grey and white | |
| Upper cabinet door | Smoke-grey framed glass or reflective panel door | |
| Hardware | Steel handles, hinges, shelf supports and adjustable plastic leveling feet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main desk and left return provide separate computer, writing and document zones within one fixed workstation | |
|---|---|---|
| Storage integration | Matching full-height cabinet combines lower closed doors, upper open shelves and one reflective display door | |
| Floor leveling | Visible circular feet support leveling on carpet or hard flooring and protect the floor from metal contact | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Provides a computer zone, document-return space and rear storage for managers requiring a formal workstation | |
|---|---|---|
| Manager or supervisor workspace | Suitable for daily laptop work, filing and display storage in corporate, legal or administrative offices |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength and durability | EN 16139:2013+A1:2019 applies to non-domestic seating-adjacent work furniture strength and durability | |
|---|---|---|
| Storage furniture safety | EN 14073:2004 applies to safety requirements for office storage furniture | |
| Storage furniture stability | EN 14073:2004 applies to structural stability and installation of office storage |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel emission | GB/T 39600applies to formaldehyde emission classification of engineered-wood panels | |
|---|---|---|
| Furniture structural safety | GB/T 3324applies to dimensional and structural quality requirements for wooden furniture | |
| Furniture surface test | GB/T 4893.1applies to resistance of surface coatings to cold liquids |
Standardized tender description text
This product must meet the following technical requirements: 1. Wood-based panel emission: GB/T 39600applies to formaldehyde emission classification of engineered-wood panels; 2. Furniture structural safety: GB/T 3324applies to dimensional and structural quality requirements for wooden furniture; 3. Furniture surface test: GB/T 4893.1applies to resistance of surface coatings to cold liquids; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
