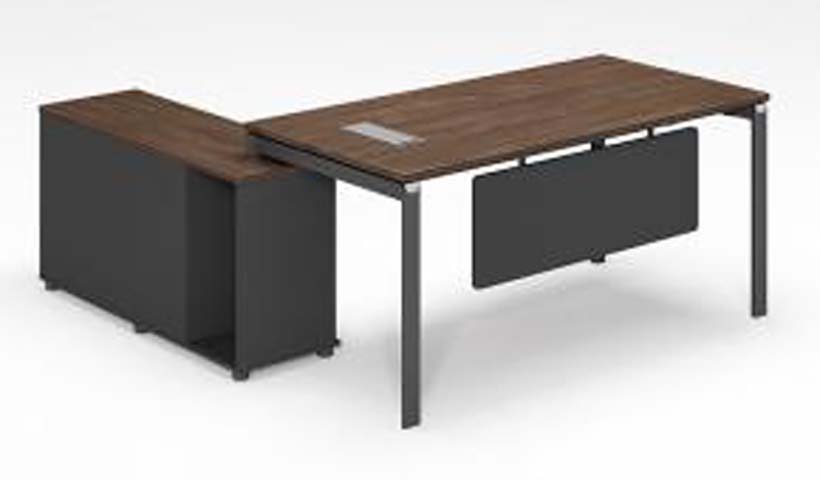

L-Shaped Executive Desk with Mobile Storage Pedestal and Cable Port (model ED-L1800-1600-MP) is listed under Executive Office Desk for Boss/Executive. Dimensions: 1800 x 1600 x 750 mm main L-shaped footprint and work height. Materials: 25 mm wood-based panel with walnut-wood-grain melamine or laminate surface and dark sealed edge band. Load capacity: 80 kg maximum evenly distributed static load on the joined work surfaces. Product Features: walnut-wood-tone,charcoal-black,L-shaped,desk,mobile,pedestal,metal,legs,modesty,panel,cable,port. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-L1800-1600-MP |
| Overall configuration | 1800 x 1600 x 750 mm main L-shaped footprint and work height | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Suggested user capacity | 1 person for executive, managerial, or dedicated computer-work use |
| Desktop distributed load | 80 kg maximum evenly distributed static load on the joined work surfaces | Pedestal top load | 40 kg maximum evenly distributed load over the cabinet top |
| Drawer and shelf load | 20 kg per drawer or internal shelf level, assuming ball-bearing drawer runners and 18 mm cabinet panels | Caster load rating | 40 kg per caster, giving 160 kg total mobile-pedestal capacity including cabinet contents |
| Product net weight | 95 kg including desktop panels, steel frame, modesty panel, and mobile pedestal | Leveling adjustment | 10 mm vertical adjustment at floor contacts where adjustable glides are specified |
| Recommended warranty | 5 years for frame and case goods under single-shift office use | Color options | 2 visible finishes: walnut-wood-tone top and charcoal-black base system |
| Top Static Load Reference | 150 kg uniformly distributed | Worktop and return | 25 mm wood-based panel with walnut-wood-grain melamine or laminate surface and dark sealed edge band |
| Support frame | 50 x 50 mm charcoal powder-coated square steel legs with underside metal rail or corner bracket connection | Modesty panel | 18 mm charcoal wood-based panel or steel privacy panel suspended from the rear underside rail |
| Mobile storage cabinet | Black laminate, melamine, or painted panel carcass with reinforced top and four corner caster mounts | Cable port | Silver rectangular plastic or aluminum access cover with recessed frame, located near the rear work area |
| Floor-contact hardware | Four 50 mm nylon swivel casters on the pedestal and non-marking feet or glides on the desk legs | L-shaped workspace | Main 1800 mm desk and 1200 mm side return provide separate computer-work and document-meeting zones, with the pedestal serving as the return support |
| Mobile side storage | The pedestal rolls independently on four swivel casters and can be pulled from under the return for drawer access or floor cleaning | Cable management | The 240 x 120 mm desktop port routes monitor and power cables downward; procurement should specify a matching under-top tray and brush cover |
| Seated privacy and leg shielding | The rear 1100 x 450 mm modesty panel blocks under-desk sight lines while retaining a 280 mm floor clearance | Carton dimensions | 1870 x 870 x 120 mm top carton, 1250 x 560 x 110 mm return carton, and 690 x 560 x 600 mm pedestal carton |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Executive or manager office | Suits private offices requiring a primary computer zone, side document area, and concealed mobile storage within one 1800 x 1600 mm footprint |
| Administrative workstation | Supports laptop or monitor work, paperwork, printer placement, and personal filing where cable routing and under-desk privacy are required | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall configuration | 1800 x 1600 x 750 mm main L-shaped footprint and work height | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Suggested user capacity | 1 person for executive, managerial, or dedicated computer-work use | |
|---|---|---|
| Desktop distributed load | 80 kg maximum evenly distributed static load on the joined work surfaces | |
| Pedestal top load | 40 kg maximum evenly distributed load over the cabinet top | |
| Drawer and shelf load | 20 kg per drawer or internal shelf level, assuming ball-bearing drawer runners and 18 mm cabinet panels | |
| Caster load rating | 40 kg per caster, giving 160 kg total mobile-pedestal capacity including cabinet contents | |
| Product net weight | 95 kg including desktop panels, steel frame, modesty panel, and mobile pedestal | |
| Leveling adjustment | 10 mm vertical adjustment at floor contacts where adjustable glides are specified | |
| Recommended warranty | 5 years for frame and case goods under single-shift office use | |
| Color options | 2 visible finishes: walnut-wood-tone top and charcoal-black base system | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop and return | 25 mm wood-based panel with walnut-wood-grain melamine or laminate surface and dark sealed edge band | |
|---|---|---|
| Support frame | 50 x 50 mm charcoal powder-coated square steel legs with underside metal rail or corner bracket connection | |
| Modesty panel | 18 mm charcoal wood-based panel or steel privacy panel suspended from the rear underside rail | |
| Mobile storage cabinet | Black laminate, melamine, or painted panel carcass with reinforced top and four corner caster mounts | |
| Cable port | Silver rectangular plastic or aluminum access cover with recessed frame, located near the rear work area | |
| Floor-contact hardware | Four 50 mm nylon swivel casters on the pedestal and non-marking feet or glides on the desk legs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped workspace | Main 1800 mm desk and 1200 mm side return provide separate computer-work and document-meeting zones, with the pedestal serving as the return support | |
|---|---|---|
| Mobile side storage | The pedestal rolls independently on four swivel casters and can be pulled from under the return for drawer access or floor cleaning | |
| Cable management | The 240 x 120 mm desktop port routes monitor and power cables downward; procurement should specify a matching under-top tray and brush cover | |
| Seated privacy and leg shielding | The rear 1100 x 450 mm modesty panel blocks under-desk sight lines while retaining a 280 mm floor clearance |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 1870 x 870 x 120 mm top carton, 1250 x 560 x 110 mm return carton, and 690 x 560 x 600 mm pedestal carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive or manager office | Suits private offices requiring a primary computer zone, side document area, and concealed mobile storage within one 1800 x 1600 mm footprint | |
|---|---|---|
| Administrative workstation | Supports laptop or monitor work, paperwork, printer placement, and personal filing where cable routing and under-desk privacy are required |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
