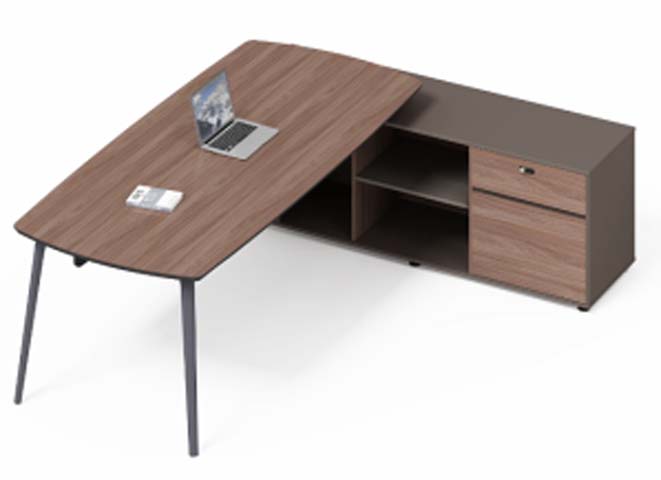

Product supplierL-Shaped Executive Desk with Right Storage Return, 25 mm wood-based panel with walnut wood-grain laminate or veneered finish and sealed edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop load | 80 kg | |
|---|---|---|
| Drawer load per drawer | 15 kg | |
| Open shelf load | 20 kg per shelf | |
| Recommended user capacity | 1 person | |
| Product net weight | 72 kg | |
| Static stability base | 1800 x 1600 mm | |
| Drawer slide durability | 50000 open-close cycles | |
| Hardware warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop and return surface | 25 mm wood-based panel with walnut wood-grain laminate or veneered finish and sealed edges | |
|---|---|---|
| Storage cabinet exterior | 18 mm taupe and walnut-look wood-based panels with matching edge banding | |
| Internal shelves and dividers | 18 mm horizontal shelf and vertical divider forming two open bays | |
| Support legs | Four 32 mm round charcoal powder-coated steel tube legs, including the two visible splayed legs | |
| Drawer hardware | Side-mount metal drawer slides with a central lock cylinder on the upper drawer front | |
| Floor protection | 20 mm nylon or TPE adjustable glides/leveling feet under legs and cabinet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seated work configuration | 750 mm fixed-height work surface with a 700 mm knee bay supports standard executive task seating | |
|---|---|---|
| Return work surface | 1200 mm side return provides space for a printer, documents, or secondary laptop beside the main desk | |
| Cable and equipment layout | Open shelf bay accepts a small CPU or printer, with a 60 mm rear cable grommet recommended at factory stage | |
| Leveling installation | Adjustable feet compensate for up to 10 mm floor variation without cutting the steel legs |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 82 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suits a manager or director office where the 1800 mm main surface handles a laptop, documents, and phone while the return holds a printer or reference files. | |
|---|---|---|
| Open-plan management workstation | Works as a one-person semi-private workstation with lockable drawers for personnel documents and open shelves for daily-access equipment. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety and strength | EN 16139:2013+A1:2023 non-domestic seating/table use framework | |
|---|---|---|
| Surface formaldehyde | EN 13986 wood-based panel conformity with E1 emission class | |
| Furniture storage safety | EN 14749 storage units and worktops |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Office desk safety | ANSI/BIFMA X5.5 desk products test protocol | |
|---|---|---|
| Storage pedestal verification | ANSI/BIFMA X5.9 storage units | |
| Formaldehyde emissions | ANSI/BIFMA e3 credit 7.6.1 or 7.6.2 panel-emission option |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission acceptance | GB/T 39600 E1 classification for wood-based panels | |
|---|---|---|
| Furniture dimensional stability | GB/T 3324 general technical requirements for wooden furniture | |
| Desk strength and stability | GB/T 10357.5 and GB/T 10357.7 |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission acceptance: GB/T 39600 E1 classification for wood-based panels; 2. Furniture dimensional stability: GB/T 3324 general technical requirements for wooden furniture; 3. Desk strength and stability: GB/T 10357.5 and GB/T 10357.7; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
