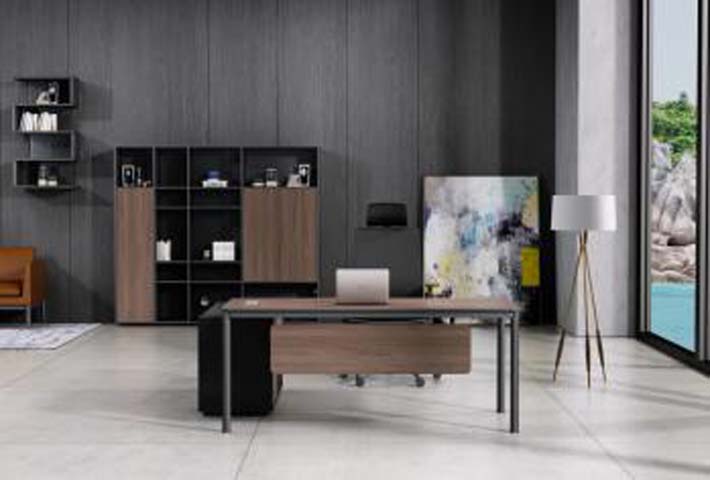

Wood Veneer Executive Desk with Left Storage Pedestal and Black Metal Legs (model ED-WV2200-LEFT-PEDESTAL) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2200 × 1800 × 750 mm. Materials: 25 mm E1-grade wood particleboard substrate with walnut wood-grain veneer or melamine surface and 2 mm matching edge band. Load capacity: 80 kg. Product Features: Walnut,wood,grain,black,metal,frame,left-side,pedestal,panel-backed,executive,desk,modern. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-WV2200-LEFT-PEDESTAL |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Net weight | 118 kg | Distributed worktop load | 80 kg |
| Pedestal drawer load per drawer | 20 kg | Single-point cantilever edge load | 25 kg |
| Suggested user capacity | 1 person | Metal frame static load | 160 kg |
| Floor pressure rating | 3.0 kPa per support foot | Adjustable foot vertical compensation | 10 mm |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Worktop substrate and surface | 25 mm E1-grade wood particleboard substrate with walnut wood-grain veneer or melamine surface and 2 mm matching edge band | Storage pedestal construction | 18 mm black and walnut wood-based panels with rigid dowel-and-cam joinery |
| Support legs | 50 mm diameter black powder-coated steel tube with welded top mounting plates and adjustable glides | Modesty panel | 18 mm walnut wood-grain panel with black edge trim mounted beneath the worktop |
| Hardware pack | Cam locks, steel corner brackets, M8 frame bolts and adjustable PP or nylon glides | Drawer slides | 45 mm wide three-section full-extension ball-bearing drawer slides with black zinc finish |
| Left-side storage support | Floor-standing pedestal supports the return and provides three drawer-equivalent storage bays with 20 kg load per slide pair | Seated cable and leg management | 680 mm knee height and 650 mm knee depth leave space for a mobile chair and under-desk cable tray |
| Leveling installation | Four adjustable glides provide 10 mm floor compensation and require a hex key or hand rotation during setup | Multi-zone work layout | Main 2200 mm surface supports a laptop and writing area, while the left return provides secondary equipment or meeting documents |
| Total gross weight | 135 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive office | Suitable for a manager or director office where the laptop, documents and pedestal storage fit one dedicated seated user | Consultation workspace | Suitable for private meetings with one or two visitors across the 2200 mm main desk surface |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 118 kg | |
|---|---|---|
| Distributed worktop load | 80 kg | |
| Pedestal drawer load per drawer | 20 kg | |
| Single-point cantilever edge load | 25 kg | |
| Suggested user capacity | 1 person | |
| Metal frame static load | 160 kg | |
| Floor pressure rating | 3.0 kPa per support foot | |
| Adjustable foot vertical compensation | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and surface | 25 mm E1-grade wood particleboard substrate with walnut wood-grain veneer or melamine surface and 2 mm matching edge band | |
|---|---|---|
| Storage pedestal construction | 18 mm black and walnut wood-based panels with rigid dowel-and-cam joinery | |
| Support legs | 50 mm diameter black powder-coated steel tube with welded top mounting plates and adjustable glides | |
| Modesty panel | 18 mm walnut wood-grain panel with black edge trim mounted beneath the worktop | |
| Hardware pack | Cam locks, steel corner brackets, M8 frame bolts and adjustable PP or nylon glides | |
| Drawer slides | 45 mm wide three-section full-extension ball-bearing drawer slides with black zinc finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left-side storage support | Floor-standing pedestal supports the return and provides three drawer-equivalent storage bays with 20 kg load per slide pair | |
|---|---|---|
| Seated cable and leg management | 680 mm knee height and 650 mm knee depth leave space for a mobile chair and under-desk cable tray | |
| Leveling installation | Four adjustable glides provide 10 mm floor compensation and require a hex key or hand rotation during setup | |
| Multi-zone work layout | Main 2200 mm surface supports a laptop and writing area, while the left return provides secondary equipment or meeting documents |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 135 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suitable for a manager or director office where the laptop, documents and pedestal storage fit one dedicated seated user | |
|---|---|---|
| Consultation workspace | Suitable for private meetings with one or two visitors across the 2200 mm main desk surface |
EU Market Access Requirements* EN Standards
| Office furniture safety and strength | EN 527should cover safety, strength and durability requirements for office work desks including dimensional stability under load | |
|---|---|---|
| Office furniture dimensional determination | EN 527should cover determination of dimensions and clearance for seated office workstations | |
| Formaldehyde emissions from panels | EN 13986 should cover wood-based panel characteristics including formaldehyde classification for indoor construction use | |
| Surface durability test | EN 15185 and EN 15186 should cover abrasion and scratch resistance evaluation of furniture surfaces |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
| Furniture structural dimensional fit | GB/T 3324 general technical requirements for wooden furniture should cover dimensional tolerances, appearance and assembly quality | |
|---|---|---|
| Wood-based panel formaldehyde control | GB 18580 should cover formaldehyde emission limits for the wood-based desk panels and edge-banded components | |
| Furniture physical and chemical surface test | GB/T 4893.1 through GB/T 4893.9 should cover resistance to wear, stains, moisture, heat and impact for finished surfaces |
This product must meet the following technical requirements: 1. Furniture structural dimensional fit: GB/T 3324 general technical requirements for wooden furniture should cover dimensional tolerances, appearance and assembly quality; 2. Wood-based panel formaldehyde control: GB 18580 should cover formaldehyde emission limits for the wood-based desk panels and edge-banded components; 3. Furniture physical and chemical surface test: GB/T 4893.1 through GB/T 4893.9 should cover resistance to wear, stains, moisture, heat and impact for finished surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
