PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	1600 x 1400 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	80 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm engineered wood board with walnut wood-grain melamine surface and rounded exposed end
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work surface	Two perpendicular work zones provide a 1600 mm main writing area and a 1400 mm return for computer, document or meeting support
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	3 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workstation	Suits a manager office where laptop work, paperwork and a small CPU or storage compartment are required in one footprint

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSH-EXD-1600-WAL-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSH-EXD-1600-WAL-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSH-EXD-1600-WAL-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

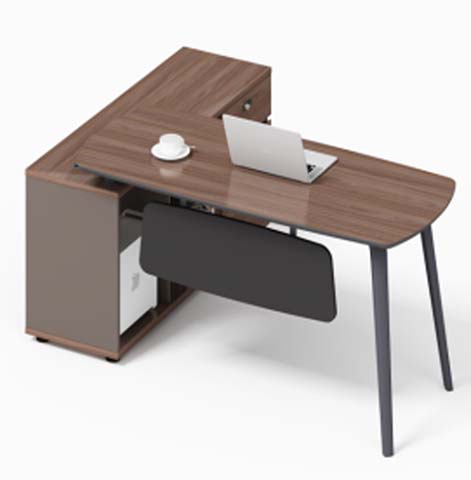

The L-Shaped Executive Office Desk with Side Storage Pedestal combines a broad corner workstation with integrated support storage for professional private offices. Its unbranded model LSH-EXD-1600-WAL-01 presents a walnut-grain worktop paired with a taupe storage cabinet, a black modesty panel, and dark grey powder-coated steel legs, producing a balanced mixed wood-and-metal appearance suited to managerial settings. The layout uses two perpendicular work zones: a 1600 mm main writing area and a 1400 mm return for computer equipment, documents, or meeting support. The side pedestal keeps storage within reach while preserving the clean executive profile of the desk. Construction centers on engineered wood with a walnut wood-grain melamine surface and a rounded exposed end. Primary panels are 25 mm thick, with a 40 mm composite build-up available for the load-bearing top, and the finished top thickness is 50 mm. Exposed edges use 2 mm edge banding. The support structure uses 2 mm cold-rolled steel with an 80 mm main leg section, M6 to M8 reference connectors, and at least two fixing points per main support. The overall footprint is 1600 x 1400 x 750 mm, with effective knee clearance of 680 mm in height and 900 mm in width at the main seat. Practical features include enclosed pedestal storage and cable management. An 80 mm cable opening works with a 120 mm-deep tray, providing reference capacity for 10 power or data cables and a tray load of 10 kg. The desktop is rated for an 80 kg distributed static load, with a 150 kg uniformly distributed top static-load reference. Drawer slides are referenced at 45 kg per pair and 50,000 cycles, while hinges have an 80,000-cycle opening acceptance target. The finish has a 4,000-abrasion-cycle acceptance reference, and main joints are intended to support five controlled assembly cycles. The desk is best suited to a manager or private office workstation where laptop work, paperwork, and a small CPU or storage compartment need to occupy one coordinated footprint. Buyers should confirm the selected finish and frame color; the program references six top finishes and three frame colors. Procurement planning should allow for assembly time of 40 minutes per set and verify packing details at order placement, as supplied logistics data includes three-carton and alternate packed-set references. Warranty guidance is five years for the structure, three years for hardware, and two years for the finish.

L-Shaped Executive Office Desk with Side Storage Pedestal Specifications
