PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user capacity	1 person
Distributed desktop static load	80 kg
Storage cabinet distributed load	50 kg
Recommended monitor load	25 kg
Net weight reference	95 kg
Leveling adjustment per glide	10 mm
Desktop edge impact exposure	4 edges
Warranty target	5 years
Color option count	2 colors
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	25 mm engineered wood board with light oak-grain melamine surface and matching edge banding
Return cabinet carcass	18 mm light oak-grain engineered wood panels with black edge protection
Storage front panels	18 mm charcoal matte engineered wood doors or drawer fronts with flush recessed pulls
Modesty panel	18 mm charcoal matte engineered wood panel fixed under the rear desktop
Support legs	50 x 50 mm black powder-coated square steel tubes with splayed geometry and copper-color end caps
Leveling feet	Black injection-molded plastic or nylon adjustable glides with steel threaded stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Recessed 240 x 120 mm desktop port routes power and data cables into the under-desk zone
Storage support	Left return cabinet provides enclosed storage with charcoal front panels and ventilation slots for a computer tower or equipment bay
Seated work configuration	750 mm desktop height and 680 mm minimum knee clearance support standard executive chairs and keyboard work
Privacy screening	Rear charcoal modesty panel shields the user's leg zone and conceals under-desk cabling

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	3 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for private manager offices where the 1800 mm work surface and 1600 mm return support computer work, documents, and enclosed storage
Open-plan workstation	Can be used as a senior staff workstation with cable routing, privacy panel, and side cabinet for CPU or filing equipment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L1800-CAB-R

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L1800-CAB-R

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L1800-CAB-ROpen Export Tool

Quick Actions

Post an RFQ

Product Description

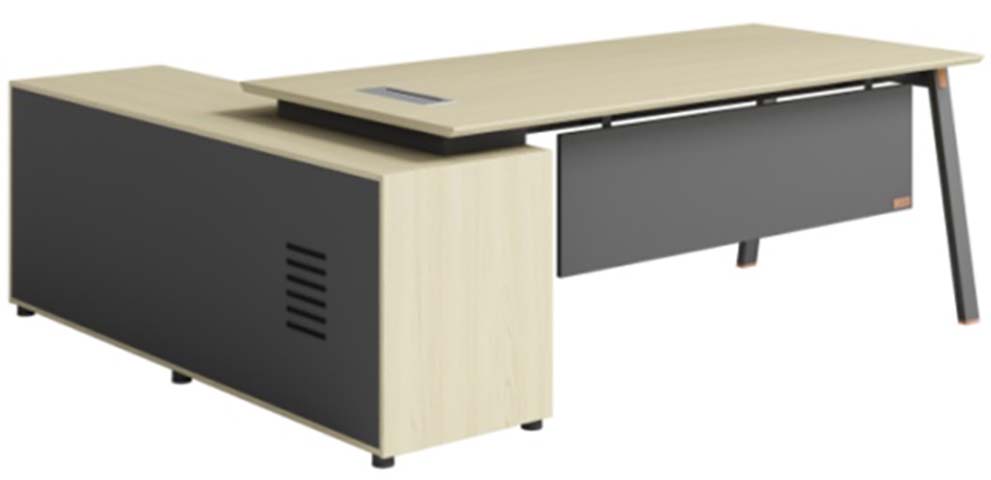

The L-Shaped Executive Workstation with Return Storage Cabinet combines a generous work surface with integrated storage, creating a commanding yet organized solution for professional environments. Model EXD-L1800-CAB-R presents a clean two-tone aesthetic, pairing light oak-grain melamine finishes on the desktop and cabinet carcass with charcoal matte front panels and modesty panel. Black powder-coated steel legs feature a splayed geometry with subtle copper-color end caps, adding a refined contemporary accent. The left-side return positions enclosed storage adjacent to the main workspace, while the rear modesty panel visually screens the under-desk area and conceals cabling. Construction centers on engineered wood panels suited to regular office use. The desktop uses a 25 mm board with light oak-grain melamine and matching edge banding, reaching a finished top thickness of 50 mm. The return cabinet is built from 18 mm light oak-grain engineered wood panels with black edge protection, while its doors or drawer fronts use 18 mm charcoal matte engineered wood with flush recessed pulls. Support is provided by 50 by 50 mm square steel tubes with a stated 80 mm main support section and 2 mm metal wall, finished in black powder coating. Black injection-molded plastic or nylon adjustable glides with steel threaded stems allow 10 mm of leveling adjustment per foot to accommodate uneven floors. Designed for a single user, the workstation supports standard executive seating with a 750 mm desktop height and 680 mm minimum knee clearance at each main seat position, with 900 mm of clearance width. The layout accommodates computer-based tasks, document review, and everyday office equipment. A recessed 240 by 120 mm cable-access port routes power and data into the under-desk zone, where an 80 mm cable opening and 120 mm-deep cable tray help maintain order. The return cabinet provides enclosed storage with charcoal fronts and ventilation slots, making the side compartment suitable for a computer tower or equipment as well as filing materials. Rated capacities include an 80 kg distributed static load on the desktop, a 25 kg recommended monitor load, and a 50 kg distributed load within the storage cabinet, guiding balanced placement of equipment and materials. The configuration is well suited to private manager and director offices, and it can also serve as a senior staff workstation in open-plan environments where privacy, cable control, and nearby storage are priorities. Procurement teams should plan for a substantial workstation with a 95 kg net weight and multi-carton delivery. Packaging references vary across supplied records, showing both three-carton and four-carton handling descriptions, so receiving and assembly scheduling should be confirmed with the supplier. Assembly time is referenced at 40 minutes per set. Access at the delivery entrance, lift capacity, and room circulation around the L-shaped footprint should be checked before installation, and the splayed-leg design should be positioned to allow comfortable chair movement and side access to the return cabinet.

L-Shaped Executive Workstation with Return Storage Cabinet Specifications
