PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Side pedestal top load	50 kg
Drawer static load per drawer	20 kg
Open shelf static load	15 kg
Recommended user capacity	1 person
Product net weight	95 kg
Drawer slide durability	50000 cycles
Adjustable foot leveling range	10 mm
Surface impact and abrasion acceptance	Class 1 laminate wear rating
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	Moisture-resistant engineered wood board with white matte finish
Edge construction	Matching matte edge banding with a thick-profile visible perimeter
Pedestal panels	Gray and white engineered-wood panels with low-sheen finish
Support legs	White powder-coated cylindrical steel legs with dark non-marking tips
Modesty panel	Gray rigid panel attached below the main work surface
Hardware and slides	Steel drawer slides, hinges, handles, and connector fittings with black horizontal pulls

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Five stacked drawer/front compartments on the pedestal end plus one illuminated open cubby for documents and display items
Cable management	Desktop cable port or rear cable channel planned at 80 mm diameter with under-top routing to the pedestal side
Seating access	Central open knee bay provides a 1100 mm wide seated position with 690 mm vertical clearance
Privacy screening	Full-width gray modesty panel shields the underside from the front seating zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Suitable for a manager or director office where the 2200 mm main top supports a laptop, documents, and meeting-side work surface
Open-management workstation	Can be placed in a semi-open management area with the tall return defining the user zone while retaining guest-facing desk space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-L2200-WG-FIX

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-L2200-WG-FIX

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-L2200-WG-FIXOpen Export Tool

Quick Actions

Post an RFQ

Product Description

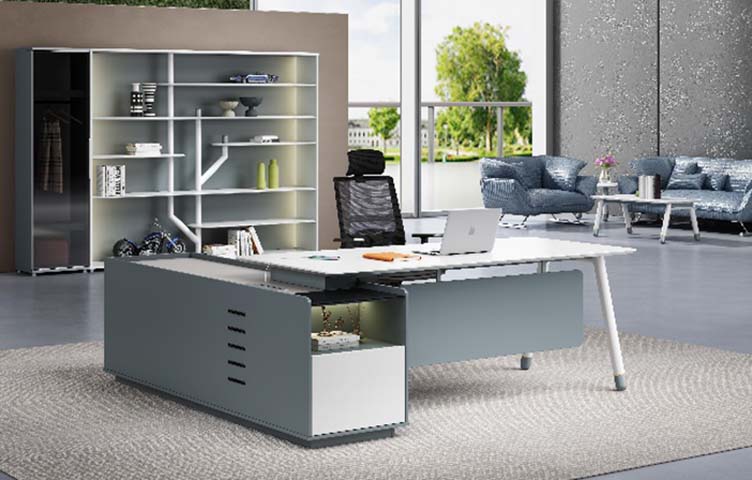

The Contemporary L-Shaped Executive Desk with Fixed Side Storage Pedestal is an unbranded workstation designed for focused individual work, document handling, and informal guest-facing meetings. Model ED-L2200-WG-FIX combines a broad main desk with a fixed return-side pedestal, creating a defined corner layout that separates the primary seating area from storage and side work space. Its modern two-tone appearance uses white and low-sheen gray engineered-wood panels, while the white cylindrical steel legs, black horizontal pulls, dark non-marking tips, and gray modesty panel provide a clean executive look. The worktop has a white matte surface with matching matte edge banding and a thick-profile visible perimeter. Construction centers on a moisture-resistant engineered-wood board for the worktop, gray and white engineered-wood panels for the pedestal and cabinets, powder-coated steel legs, and a rigid steel modesty panel. The main leg section is 80 mm with a 2 mm metal wall, and the finished top thickness is 50 mm. The desk is rated for a distributed desktop static load of 100 kg, a side pedestal top load of 50 kg, 20 kg per drawer, and 15 kg for the open shelf. The steel drawer slides are rated for 50,000 cycles. Functionally, the pedestal provides five stacked drawer or front compartments along with one illuminated open cubby for documents and display items. Cable management is handled through an 80 mm desktop cable port or rear cable channel, with under-top routing toward the pedestal side and a cable tray depth of 120 mm. The central open knee bay supports one user and offers a 1100 mm wide seated position with 690 mm vertical clearance; the listed effective knee clearance is 680 mm high and 900 mm wide per main seat. A full-width gray modesty panel shields the underside from the front seating zone. The desk is well suited to a manager or director private office, where the 2200 mm main top can support a laptop, paperwork, and meeting-side work surface. It also fits a semi-open management area, where the tall return defines the user zone while preserving guest-facing desk space. Procurement planning should account for a product net weight of 95 kg, one-person recommended use, and fixed pedestal placement. Reference packaging information notes one set across two cartons, with separate packing for the main top and return or pedestal; the main top package dimension is listed as 2500 by 1050 by 350 mm. Additional reference logistics state a packaged gross weight of 180 kg per set across four cartons and one cubic meter per set, with assembly time listed at 40 minutes per set. Buyers should reconcile the carton-count details before delivery and confirm access for the large main top panel.

Contemporary L-Shaped Executive Desk with Fixed Side Storage Pedestal Specifications
