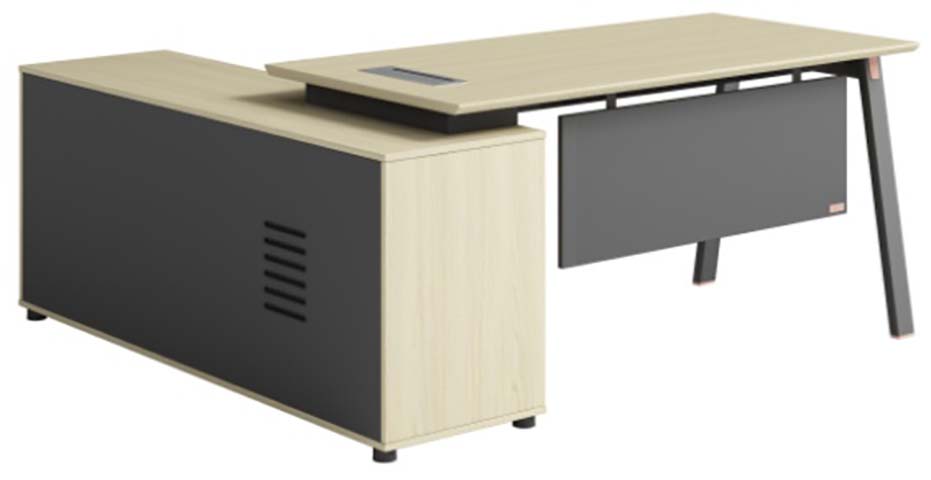

L-Shaped Executive Desk with Integrated Storage Cabinet and Cable Port (model ED-L1800-CAB-MB) is listed under Executive Office Desk for Boss/Executive. Dimensions: 1800 × 1600 × 750 mm. Materials: 25 mm wood-based panels with light beige wood-grain melamine laminate and sealed edge banding. Load capacity: 80 kg. Product Features: two-tone,furniture,L-shaped,workstation,storage,pedestal,cable,management,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | ED-L1800-CAB-MB |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight | 78 kg | Desktop distributed static load | 80 kg |
| Side-cabinet top load | 40 kg | Adjustable-shelf load | 20 kg per shelf |
| Drawer load capacity | 15 kg per drawer | Seating capacity | 1 person |
| Leveling adjustment | 10 mm | Edge impact acceptance | No cracking or delamination after a 1 kg drop from 180 mm |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Work surfaces and cabinet panels | 25 mm wood-based panels with light beige wood-grain melamine laminate and sealed edge banding | Dark cabinet face and modesty panel | Dark grey matte laminate or powder-coated MDF panel with straight sealed edges |
| Support frame | Square powder-coated steel legs and under-top rails with dark grey/black finish | Leveling feet | Injection-molded black nylon or PP adjustable glides with steel threaded inserts |
| Cable grommet | Recessed black plastic cable port with brush or slotted cover | Hardware target | Steel cam-and-bolt knockdown fasteners, hinges with 80,000-cycle rating, and ball-bearing drawer slides if drawers are included |
| L-shaped work layout | Main 1800 mm desk plus 1200 mm return creates separate computer, writing, and printer zones while retaining one seated position | Integrated storage support | Floor-standing side cabinet supports the return top and provides enclosed storage for documents or a host computer |
| Cable management | A 240 x 100 mm desktop port routes monitor and power cables into the under-desk zone, with a slotted cabinet side allowing equipment ventilation | Privacy and leg screening | Fixed dark modesty panel conceals the user's leg area and under-desk cables from the front side |
| Total shipping volume | 0.33 CBM | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Private office workstation | Suits managers and administrative staff requiring a computer surface, writing area, printer placement, and adjacent enclosed storage in one footprint | Administrative reception or supervisor room | Fits a compact back-office position where cable routing, document storage, and visitor-facing modesty screening are required |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 78 kg | |
|---|---|---|
| Desktop distributed static load | 80 kg | |
| Side-cabinet top load | 40 kg | |
| Adjustable-shelf load | 20 kg per shelf | |
| Drawer load capacity | 15 kg per drawer | |
| Seating capacity | 1 person | |
| Leveling adjustment | 10 mm | |
| Edge impact acceptance | No cracking or delamination after a 1 kg drop from 180 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces and cabinet panels | 25 mm wood-based panels with light beige wood-grain melamine laminate and sealed edge banding | |
|---|---|---|
| Dark cabinet face and modesty panel | Dark grey matte laminate or powder-coated MDF panel with straight sealed edges | |
| Support frame | Square powder-coated steel legs and under-top rails with dark grey/black finish | |
| Leveling feet | Injection-molded black nylon or PP adjustable glides with steel threaded inserts | |
| Cable grommet | Recessed black plastic cable port with brush or slotted cover | |
| Hardware target | Steel cam-and-bolt knockdown fasteners, hinges with 80,000-cycle rating, and ball-bearing drawer slides if drawers are included |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main 1800 mm desk plus 1200 mm return creates separate computer, writing, and printer zones while retaining one seated position | |
|---|---|---|
| Integrated storage support | Floor-standing side cabinet supports the return top and provides enclosed storage for documents or a host computer | |
| Cable management | A 240 x 100 mm desktop port routes monitor and power cables into the under-desk zone, with a slotted cabinet side allowing equipment ventilation | |
| Privacy and leg screening | Fixed dark modesty panel conceals the user's leg area and under-desk cables from the front side |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping volume | 0.33 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office workstation | Suits managers and administrative staff requiring a computer surface, writing area, printer placement, and adjacent enclosed storage in one footprint | |
|---|---|---|
| Administrative reception or supervisor room | Fits a compact back-office position where cable routing, document storage, and visitor-facing modesty screening are required |
EU Market Access Requirements* EN Standards
| EN 527-1 applicability | Applies to safety, dimensional, and structural requirements for office desks | |
|---|---|---|
| EN 527-2 applicability | Applicable standards and test results require confirmation | |
| EN 15372 applicability | Use for strength, durability, and stability requirements of non-domestic storage furniture | |
| EN 717-1 applicability | Use formaldehyde emission chamber testing for wood-based panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 applicability | Use desk products load, cycle, stability, and durability tests for commercial office applications | |
|---|---|---|
| ANSI/BIFMA X5.9 applicability | Use storage cabinet strength, drawer, shelf, and door test methods where internal storage is supplied |
Standards applicable to China-market projects
| GB/T 3324 applicability | Use for dimensional tolerance, appearance, material, and structural inspection of wooden office furniture | |
|---|---|---|
| GB/T 4893.4 applicability | Use for abrasion-resistance testing of laminate desktop surfaces | |
| GB 18580 applicability | Use for formaldehyde emission limits of wood-based panels and finished wood furniture | |
| GB/T 10357.5 applicability | Use for furniture strength and durability load tests on tables | |
| GB/T 4893.9 applicability | Use for impact-resistance testing of finished wood-based furniture surfaces | |
| Recommended desktop abrasion acceptance | 400 cycles by GB/T 4893.4 method |
This product must meet the following technical requirements: 1. GB/T 3324 applicability: Use for dimensional tolerance, appearance, material, and structural inspection of wooden office furniture; 2. GB/T 4893.4 applicability: Use for abrasion-resistance testing of laminate desktop surfaces; 3. GB 18580 applicability: Use for formaldehyde emission limits of wood-based panels and finished wood furniture; 4. GB/T 10357.5 applicability: Use for furniture strength and durability load tests on tables; 5. GB/T 4893.9 applicability: Use for impact-resistance testing of finished wood-based furniture surfaces; 6. Recommended desktop abrasion acceptance: 400 cycles by GB/T 4893.4 method; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
