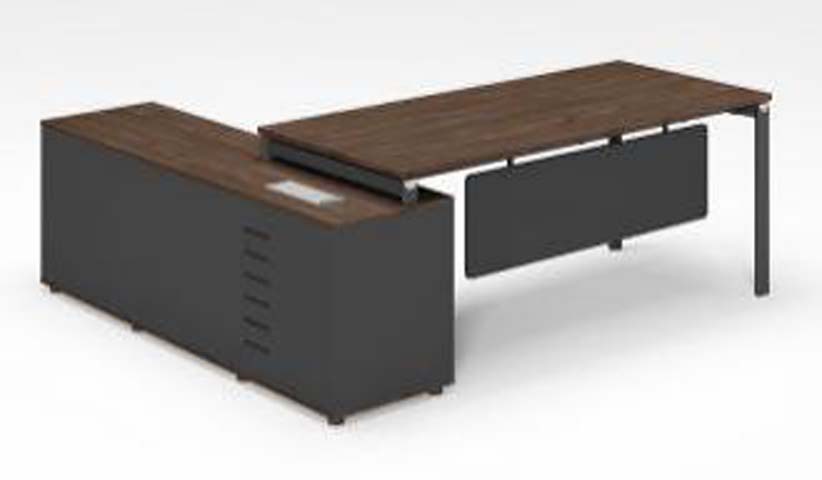

L-Shaped Executive Workstation with Full-Height Storage Credenza and Modesty Panel (model L-EXE-WS-2400-55D-CAB) is listed under Executive Office Desk for Boss/Executive. Dimensions: 2400 × 1800 × 750 mm. Materials: 25 mm E1-grade wood-composite panel with walnut-look melamine or laminate surface and matching impact-resistant edge banding. Load capacity: 100 kg. Product Features: L-shaped,configuration,return,storage,credenza,suspended,modesty,panel,rectangular,metal,legs,dark,walnut,finish,charcoal,cabinet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | L-EXE-WS-2400-55D-CAB |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight reference | 145 kg | Desktop distributed static load | 100 kg |
| Single drawer load rating | 20 kg | Credenza shelf load rating | 30 kg per shelf |
| Recommended seated user capacity | 1 person | Monitor and equipment platform capacity | 40 kg |
| Leveling adjustment per foot | 10 mm | Suggested warranty period | 5 years |
| Available finish selection | 2 finishes | Top Static Load Reference | 150 kg uniformly distributed |
| Worktop substrate and finish | 25 mm E1-grade wood-composite panel with walnut-look melamine or laminate surface and matching impact-resistant edge banding | Cabinet carcass | 18 mm dark charcoal melamine-faced wood-composite panels with concealed panel connectors |
| Drawer pedestal | Six drawer fronts with 16 mm composite fronts, metal box sides and full-extension side-mounted slides | Support legs | 50 x 50 mm square powder-coated steel tube legs with welded top fixing plates |
| Modesty panel | 25 mm charcoal composite panel or powder-coated steel panel suspended beneath the rear work surface | Hardware and cable fitting | Steel connecting brackets, adjustable polymer or steel leveling glides, and one rectangular plastic cable grommet with brush or solid cover |
| L-shaped work layout | Main 2400 mm desk and 1800 mm return create a corner workflow with separate computer work, writing and storage zones | Integrated storage | One six-drawer pedestal plus a closed cabinet bay provide filing, personal storage and office-supply containment |
| Cable management | A 120 mm rectangular desk grommet routes monitor and power cables from the return surface into the cabinet or under-desk zone | Privacy and leg screening | A 450 mm deep suspended modesty panel conceals the seated user and cable area without blocking the front knee opening |
| Carton count | 4 flat-packed cartons | Largest carton size | 2450 x 850 x 120 mm |
| Total carton gross weight | 160 kg | Total packaging volume | 0.42 CBM |
| On-site assembly time | 90 minutes for 2 installers | Reference Package Count | 1 set / 2 cartons |
| Executive private office | Suitable for a manager or director office where the main surface supports computing and the return provides meeting, signing and storage space | Supervisor workstation | Suitable for open-plan supervisor positions requiring document drawers, concealed storage and cable routing within a compact footprint |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight reference | 145 kg | |
|---|---|---|
| Desktop distributed static load | 100 kg | |
| Single drawer load rating | 20 kg | |
| Credenza shelf load rating | 30 kg per shelf | |
| Recommended seated user capacity | 1 person | |
| Monitor and equipment platform capacity | 40 kg | |
| Leveling adjustment per foot | 10 mm | |
| Suggested warranty period | 5 years | |
| Available finish selection | 2 finishes | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and finish | 25 mm E1-grade wood-composite panel with walnut-look melamine or laminate surface and matching impact-resistant edge banding | |
|---|---|---|
| Cabinet carcass | 18 mm dark charcoal melamine-faced wood-composite panels with concealed panel connectors | |
| Drawer pedestal | Six drawer fronts with 16 mm composite fronts, metal box sides and full-extension side-mounted slides | |
| Support legs | 50 x 50 mm square powder-coated steel tube legs with welded top fixing plates | |
| Modesty panel | 25 mm charcoal composite panel or powder-coated steel panel suspended beneath the rear work surface | |
| Hardware and cable fitting | Steel connecting brackets, adjustable polymer or steel leveling glides, and one rectangular plastic cable grommet with brush or solid cover |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main 2400 mm desk and 1800 mm return create a corner workflow with separate computer work, writing and storage zones | |
|---|---|---|
| Integrated storage | One six-drawer pedestal plus a closed cabinet bay provide filing, personal storage and office-supply containment | |
| Cable management | A 120 mm rectangular desk grommet routes monitor and power cables from the return surface into the cabinet or under-desk zone | |
| Privacy and leg screening | A 450 mm deep suspended modesty panel conceals the seated user and cable area without blocking the front knee opening |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 4 flat-packed cartons | |
|---|---|---|
| Largest carton size | 2450 x 850 x 120 mm | |
| Total carton gross weight | 160 kg | |
| Total packaging volume | 0.42 CBM | |
| On-site assembly time | 90 minutes for 2 installers | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for a manager or director office where the main surface supports computing and the return provides meeting, signing and storage space | |
|---|---|---|
| Supervisor workstation | Suitable for open-plan supervisor positions requiring document drawers, concealed storage and cable routing within a compact footprint |
EU Market Access Requirements* EN Standards
| Office furniture strength and durability | EN 15372:2016 for safety, strength and durability requirements of non-domestic storage furniture | |
|---|---|---|
| Office work surface dimensions | EN 527:2011 for office work surface dimensions and safety requirements | |
| Formaldehyde panel emission | EN 13986:2004+A1:2015 with E1 classification for wood-based panels |
US and Canada office-furniture standards
| Desk load and stability reference | ANSI/BIFMA X2021for desk products, including load, fatigue and stability tests | |
|---|---|---|
| Storage unit reference | ANSI/BIFMA X2019for storage units, including drawers, shelves, locks and stability |
Standards applicable to China-market projects
| Panel formaldehyde suggestion | GB/T 39600E1 limit for formaldehyde emission from wood-based panels | |
|---|---|---|
| Furniture structural safety suggestion | GB/T 3324for general technical requirements of wooden furniture | |
| Furniture coating suggestion | GB 18581for limits of harmful substances in solvent-based wood coatings |
This product must meet the following technical requirements: 1. Panel formaldehyde suggestion: GB/T 39600E1 limit for formaldehyde emission from wood-based panels; 2. Furniture structural safety suggestion: GB/T 3324for general technical requirements of wooden furniture; 3. Furniture coating suggestion: GB 18581for limits of harmful substances in solvent-based wood coatings; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
