PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	115 kg
Distributed desktop load	80 kg
Concentrated desktop point load	30 kg
Return cabinet top load	50 kg
Pedestal shelf load per level	20 kg
Single-user working capacity	1 person
Floor load footprint	41 kg/sqm
Hardware durability target	60,000 drawer-slide cycles
Edge impact acceptance target	20 kg drop at 100 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and cabinet panels	25 mm dark walnut-look melamine-faced particleboard with matching edge banding
Gray cabinet and modesty faces	18 mm gray textured melamine panel with a fabric-like visual finish
Load-bearing frame	50 x 50 mm powder-coated square steel tube legs with welded or bolted support rails
Floor-standing return carcass	18 mm composite board cabinet with gray side panels and dark top surface
Panel hardware	Cam-lock fittings, metal connecting brackets, adjustable glides, and floor-protecting feet
Cable port	Rectangular plastic or brushed cable grommet set into the desktop

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Right-return L-shaped work layout	Main desk supports front-facing computer work, while the 1200 mm right return supports documents, meetings-side access, or storage placement.
Modesty and cable concealment	Suspended gray panel shields the user's leg area and provides a rear attachment surface for an under-desk cable tray.
Desktop cable routing	One 80 mm desk port allows monitor and power cables to pass from the work surface to under-desk cable management.
Integrated storage support	Floor-standing right return provides a cabinet body for file storage, although internal drawers and shelves are not visible.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging carton count	3 cartons
Main carton dimensions	1860 x 860 x 120 mm
Cabinet carton dimensions	1260 x 660 x 420 mm
Frame and hardware carton dimensions	980 x 320 x 180 mm
Total packaged gross weight	128 kg
Total packaging volume	0.344 CBM

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits a manager or director room where the main surface handles computing and the right return supports documents, review, or temporary storage.
Premium open-management workstation	Can be placed in a high-end open office or partner workspace with a separate ergonomic task chair and under-desk cable routing.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Applicable safety reference for dimensions, structural integrity, and office-desk design review.
EN 527-2 mechanical requirements	Applicable strength, durability, and stability acceptance reference for commercial work desks.
EN 15372 furniture durability	Applicable performance requirement for non-domestic storage and desk-integrated cabinet components.
EN 120 formaldehyde determination	Applicable test-method reference for verifying board formaldehyde behavior against project limits.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural accuracy	Applicable acceptance reference for wooden office furniture dimensions, tolerances, and workmanship.
GB/T 3325 strength and stability	Applicable test reference for metal-supported office desks, including stability and load performance.
GB 18580 formaldehyde emission	Applicable procurement limit reference for wood-based panels used in the desk and cabinet.
GB/T 10357.5 furniture durability	Applicable cabinet and desk structural durability test reference for acceptance planning.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural accuracy: Applicable acceptance reference for wooden office furniture dimensions, tolerances, and workmanship.;
2. GB/T 3325 strength and stability: Applicable test reference for metal-supported office desks, including stability and load performance.;
3. GB 18580 formaldehyde emission: Applicable procurement limit reference for wood-based panels used in the desk and cabinet.;
4. GB/T 10357.5 furniture durability: Applicable cabinet and desk structural durability test reference for acceptance planning.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L1800-RC-GW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L1800-RC-GW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L1800-RC-GWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

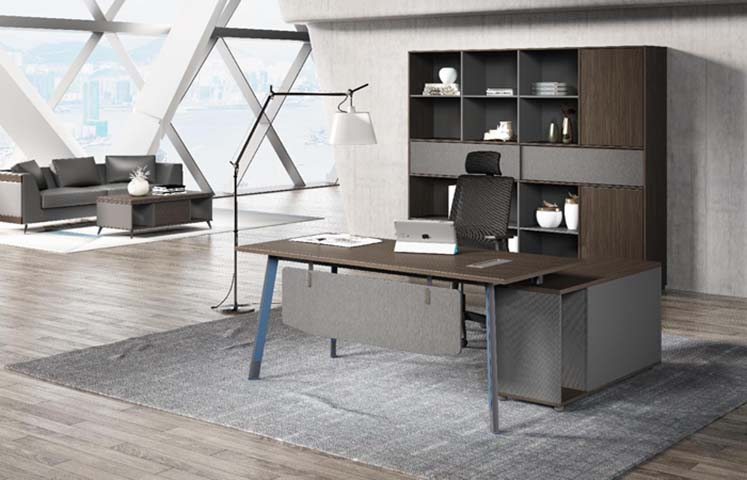

The Executive L-Shaped Office Desk with Right Return Cabinet offers a structured, high-visual workspace for users who need a broad primary work surface and adjacent support area. Its right-side return creates a clear L-shaped layout: the main desk is oriented for front-facing computer work, while the return provides space for documents, meeting-side access, or storage placement. The model is unbranded and identified as EXD-L1800-RC-GW. Visually, the desk combines dark walnut-look woodgrain surfaces with gray textured panels. The desktop and cabinet panels use a dark walnut-look melamine finish with matching edge banding, while the modesty panel and pedestal faces use an 18 mm gray textured melamine panel with a fabric-like visual finish. This contrast gives the workstation a contemporary executive appearance without relying on a single material tone. The 50 mm finished top thickness and square steel legs contribute to its substantial presence. Construction is based on melamine-faced particleboard, composite board cabinet elements, and a powder-coated steel frame. The desktop and cabinet panels are 25 mm thick, and the floor-standing return carcass uses 18 mm composite board with gray side panels and a dark top surface. The load-bearing frame uses 50 x 50 mm powder-coated square steel tube legs with welded or bolted support rails. Cam-lock fittings, metal connecting brackets, adjustable glides, and floor-protecting feet support assembly and leveling. The suspended gray modesty panel shields the user’s leg area and also acts as a rear attachment surface for the under-desk cable tray. An 80 mm desk port allows monitor and power cables to pass from the work surface into the cable-management area; the cable tray depth is 120 mm. The return is floor-standing and provides a cabinet body suited to file storage, though internal drawers and shelves are not visible. Effective knee clearance at the main seat is 680 mm high and 900 mm wide, supporting a single-user configuration. Rated loading includes an 80 kg distributed desktop load, a 30 kg concentrated desktop point load, a 50 kg return cabinet top load, and 20 kg per pedestal shelf level. The product is well suited to private executive offices, manager or director rooms, and premium open-management workstations. In residential settings, it can also support a substantial home office when the room can accommodate the L-shaped footprint and a separate task chair. Procurement teams should plan for delivery in three cartons with a total packaged gross weight of 128 kg and a packaging volume of 0.344 CBM. The net product weight is 115 kg, and the floor load footprint is 41 kg/sqm, so access, lift support, floor condition, and placement clearance should be checked before installation. Buyers should also confirm the right-return orientation matches the intended room layout, allow space for chair movement and cable access, and note that seating and technology equipment are not included.

Executive L-Shaped Office Desk with Right Return Cabinet Specifications
