PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Pedestal top static load	40 kg
Open shelf static load	10 kg
Lower storage compartment load	25 kg
Net product weight	85 kg
Seating capacity	1 person
Recommended daily user load	8 hours per day
Leveling adjustment	15 mm
Desktop load center height	750 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and return surface	25 mm wood-grain laminate particleboard with sealed edges
Storage fronts	18 mm wood-grain melamine-faced board with matching edge banding
Cabinet carcass and modesty panel	18 mm light grey melamine-faced panel
Edge protection	2 mm ABS edge banding on exposed worktop and cabinet edges
Support legs	40 mm powder-coated light grey steel tube with tapered profile
Hardware and leveling parts	Steel hinges or drawer slides, zinc-plated fasteners and nylon leveling glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	L-shaped layout provides a 1800 mm main task surface and a 1200 mm side return for document or printer placement.
Integrated storage	Left pedestal combines an open display shelf with one lower closed compartment for personal or office storage.
Privacy and leg screening	Rear modesty panel blocks thigh and cable sightlines while retaining side access for chair movement.
Cable management	Desktop cable access position routes laptop and monitor cables toward the under-desk rear zone.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Package count	3 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suited to managers or professionals needing a laptop work zone, meeting documents and close-at-hand storage.
Open-plan management workstation	Works in a supervisory workstation where the side return supports printing, filing or temporary document staging.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-LS-1800-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-LS-1800-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-LS-1800-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

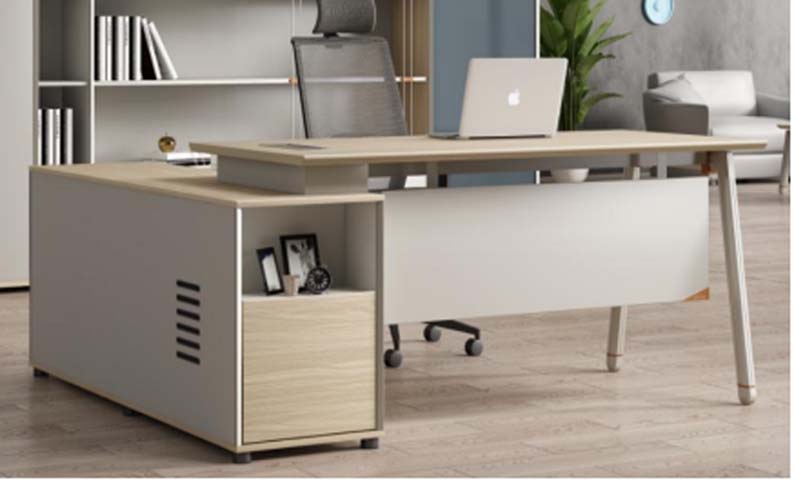

The ED-LS-1800-WG is an unbranded executive L-shaped office desk designed as a single-person workstation with an integrated side storage pedestal. Its layout pairs an 1800 mm main task surface with a 1200 mm side return, creating distinct zones for focused laptop or computer work and document, printer, or reference-material placement. The pedestal is positioned on the left and combines an open display shelf with a lower closed compartment, keeping personal items and office materials within reach without occupying separate floor space. A rear modesty panel contributes a clean professional appearance by screening thighs and under-desk cables, while the side remains open for chair movement. Visually, the desk combines light wood-grain laminate work surfaces and storage fronts with light grey melamine cabinet panels. Tapered, powder-coated light grey steel legs give the workstation a contemporary commercial silhouette, and matching edge banding on the storage fronts supports a coordinated finish. Exposed worktop and cabinet edges use 2 mm ABS edge banding. The finished top is 50 mm thick, while the worktop and return surface are constructed from 25 mm wood-grain laminate particleboard with sealed edges. Storage fronts use 18 mm wood-grain melamine-faced board, and the cabinet carcass and modesty panel use 18 mm light grey melamine-faced panels. Steel hinges or drawer slides, zinc-plated fasteners, and nylon leveling glides complete the specified hardware. The desk is built for daily individual office use, with a recommended user load of 8 hours per day. Its distributed desktop static load rating is 100 kg, the pedestal top supports 40 kg, the open shelf supports 10 kg, and the lower storage compartment supports 25 kg. The main seating area provides 680 mm of knee clearance height and 900 mm of width. The leg support features an 80 mm main section with a 2 mm metal wall, and the stated support legs use 40 mm powder-coated steel tube. A round 80 mm cable opening routes monitor and laptop cables toward the under-desk rear area, which also accommodates a cable tray with 120 mm depth. This desk is suited to private executive offices for managers or professionals who need a dedicated work zone, meeting documents, and close storage. It also fits open-plan supervisory or management workstations where the return can support printing, filing, or temporary document staging. Procurement planning should account for a net product weight of 85 kg, multi-carton delivery, and assembly requirements. Packaging records vary between 3 cartons and a reference configuration of 4 cartons, with a reference assembly time of 40 minutes per set. The largest reference package dimension is 2500 x 1050 x 350 mm, with the return and pedestal packed separately; buyers should confirm the exact shipment configuration, freight lift access, and room pathway dimensions before ordering.

L-Shaped Executive Office Desk with Integrated Side Storage Pedestal Specifications
