PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total desk set net weight	168 kg
Desktop distributed static load	80 kg
Pedestal top distributed load	40 kg
Single drawer load rating	25 kg
Rear cabinet shelf load per level	20 kg
Seating capacity at workstation	1 person
Drawer cycle reference	50000 open-close cycles
Hinge cycle reference for cabinet doors	100000 open-close cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and exposed wood-tone panels	25 mm melamine-faced particleboard with 2 mm PVC edge banding
Pedestal and dark cabinet carcass	25 mm graphite melamine-faced panel with matching edge banding
Support frame and legs	Powder-coated square steel tube with welded or bolted joints
Drawer construction	Melamine drawer boxes with concealed steel ball-bearing slides
Rear cabinet doors and shelves	Wood-tone and charcoal melamine panels with adjustable shelf supports
Hardware and connectors	Steel cam locks, connecting bolts, adjustable cabinet feet and drawer handles where specified

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Fixed left pedestal provides five drawer compartments and supports the desktop over the side return
Seated workstation function	Open central knee bay accommodates one executive chair and allows the user to face the room while working
Privacy and cable concealment	Rear wood-tone modesty panel shields the seated leg area and provides a mounting surface for optional cable trays
Rear wall storage function	Coordinated cabinet combines open display shelves, lower doors and a tall side compartment for files and equipment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for private manager offices requiring a large work surface, file drawers and a coordinated storage wall
Administrative meeting workspace	Supports laptop work, document review and short visitor discussions across the desktop

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDK-LP2200-750

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDK-LP2200-750

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDK-LP2200-750Open Export Tool

Quick Actions

Post an RFQ

Product Description

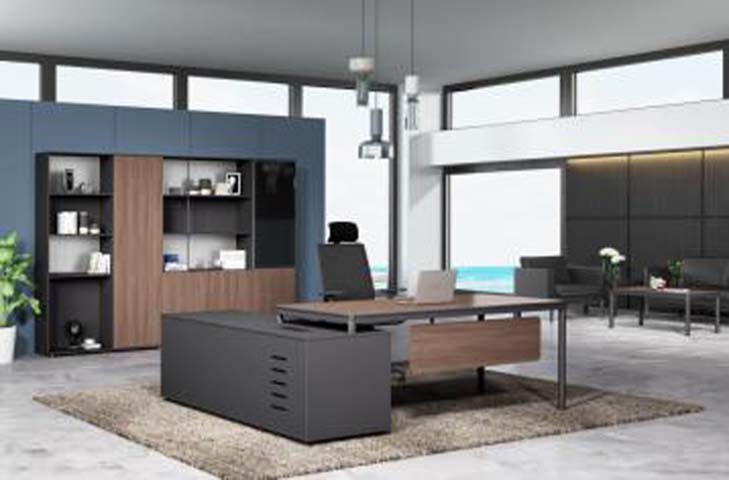

The Executive Office Desk with Left Storage Pedestal and Back Storage Cabinet, model EDK-LP2200presents a modern L-shaped executive workstation with a coordinated panel-and-metal appearance. Its wood-grain melamine work surface is paired with a charcoal powder-coated steel frame, while the graphite pedestal and mixed storage cabinet create a structured, professional contrast. The layout places a fixed storage pedestal on the left beneath the side return, leaves an open central knee bay for the user, and positions a matching rear storage cabinet behind the work area. A wood-tone modesty panel screens the seated leg space and helps give the desk a finished orientation when viewed from across the room. Construction uses 25 mm melamine-faced particleboard for the desktop and exposed wood-tone panels, finished with 2 mm PVC edge banding. The pedestal and dark cabinet carcass use 25 mm graphite melamine-faced panel with matching edge banding. The finished top thickness is 50 mm, and the support system is built from powder-coated square steel tube with welded or bolted joints; the main leg or support section is 80 mm with a 2 mm metal wall. Drawer boxes are melamine components with concealed steel ball-bearing slides, and the rear cabinet uses wood-tone and charcoal melamine doors and shelves with adjustable supports. Steel cam locks, connecting bolts, adjustable cabinet feet, and specified drawer handles complete the assembly details. The left pedestal provides five drawer compartments and supports the desktop over the side return. The central seating zone offers 680 mm of knee height and 900 mm of width at the main seat, accommodating one executive chair and allowing the occupant to face the room while working. The desk includes an 80 mm diameter cable opening and supports cable management through a tray depth of 120 mm; the rear modesty panel also provides a mounting surface for optional cable trays. The back cabinet combines open display shelving, lower enclosed doors, and a tall side compartment suited to files and equipment. Load references include an 80 kg distributed static load on the desktop, 40 kg on the pedestal top, 25 kg per drawer, and 20 kg per rear cabinet shelf level. The drawer slide reference is 50000 open-close cycles. The set has a net weight of 168 kg. This workstation is appropriate for private manager offices that need a generous work surface, document drawers, and coordinated storage, as well as administrative spaces used for laptop work, document review, and brief visitor discussions. Procurement planning should account for two-carton set packing, 40 minutes of reference assembly time, and a packaged gross weight reference of 180 kg in four cartons. Building access, delivery handling, and on-site assembly support should be confirmed before installation.

Executive Office Desk with Left Storage Pedestal and Back Storage Cabinet Specifications
