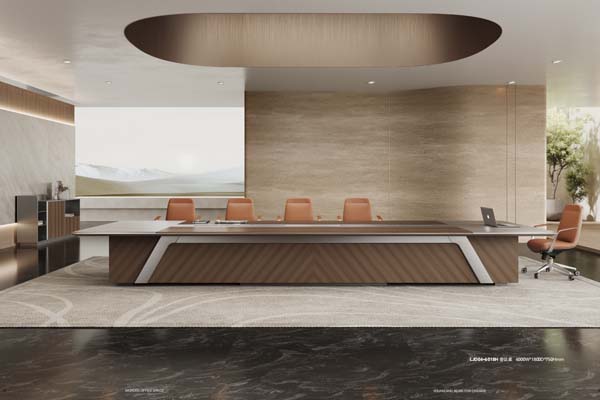

Product supplierLarge Rectangular High-End Boardroom Conference Table with Chevron Wood Base, Matte light gray HPL laminate over E1-grade engineered wood substrate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4800 × 1600 × 760 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Dark wood edge trim thickness | 80 mm | |
| Base height | 710 mm | |
| Brushed metal accent trim width | 80 mm | |
| Per-person seating space | 800 mm | |
| Knee clearance height under table | 680 mm | |
| Base front panel depth | 400 mm | |
| Table overhang past base front/back | 600 mm | |
| Floor clearance under base | 50 mm | |
| End overhang past base short sides | 400 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed static tabletop load capacity | 680 kg | |
|---|---|---|
| Seating capacity | 12 people | |
| Surface scratch resistance | 4000 cycles | |
| Expected service life | 12 years | |
| Product net weight | 380 kg | |
| Leveling foot adjustment range | 15 mm | |
| Veneer moisture content | 12% | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Light work surface top | Matte light gray HPL laminate over E1-grade engineered wood substrate | |
|---|---|---|
| Dark table edge banding | FAS-grade walnut solid wood edge with matte lacquer seal | |
| Front base panels | Chevron-pattern walnut wood veneer over 25mm MDF core | |
| Accent trim strips | Brushed 304 stainless steel, 2mm thick, polished silver finish | |
| Internal support frame | 2mm thick rectangular steel tube substructure | |
| Leveling feet | Nylon-padded steel adjustable feet | |
| Substrate edge sealing | PUR hot-melt edge sealing for all engineered wood panels | |
| Base side/back panels | Matte dark walnut wood veneer over 18mm particle board | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Concealed under-table cable channels with 2 desk grommets | |
|---|---|---|
| Leveling adjustment | Threaded steel leveling feet at each base corner | |
| Surface utility | Stain-resistant matte work surface supporting writing, laptop use, and meeting materials | |
| Assembly structure | Knock-down panelized construction with cam-lock and bolt hardware | |
| Optional power integration | Pre-drilled mounting points for recessed power/USB/data outlets | |
| Floor protection | Nylon glide pads on all base contact points | |
| Seating access | Full-length leg clearance on both long sides and both short ends | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive boardroom | Primary use for 12person senior leadership and board meetings in corporate headquarters | |
|---|---|---|
| High-end office suites | Matches luxury executive office interiors with wood, stone and metal finish palettes | |
| Corporate training spaces | Accommodates presentation equipment, laptops and training materials for group sessions | |
| VIP meeting areas | Appropriate for high-level guest receptions in government or private enterprise facilities | |
| Hybrid meeting rooms | Supports integrated video conference equipment and cable routing for remote participation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to commercial table structure | |
|---|---|---|
| EN 13722:2004 | Furniture test for surface resistance to abrasion, applicable to tabletop finish performance | |
| EN 312:2010 | Particle board performance specification for furniture structural applications |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office tables performance and safety standard, recommended for commercial load and stability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable for material emissions and durability credits |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood veneer structural components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for substrate materials | |
| GB/T 4897.3-2003 | Particle board specification for furniture use, applicable to core substrate panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood veneer structural components; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for substrate materials; 3. GB/T 4897.3-2003: Particle board specification for furniture use, applicable to core substrate panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
