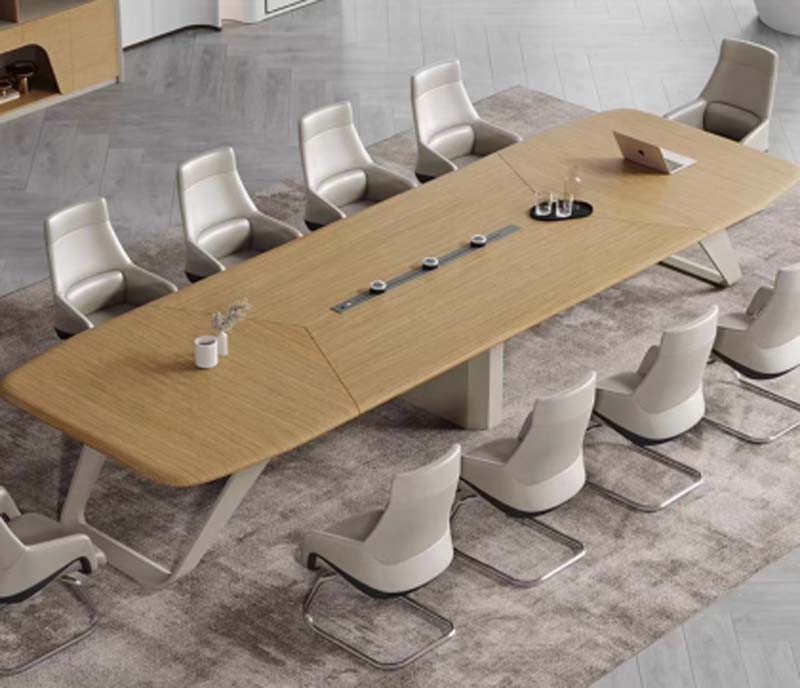

Product supplierRectangular Conference Table with Integrated Cable Management, 25mm high-density MDF substrate with 25mm edge build-up
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1200 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 800 kg | |
|---|---|---|
| Recommended seating capacity | 10 people | |
| Surface scratch resistance | 3000 cycles | |
| Leg assembly static stability load | 150 kg per support point | |
| Net weight (without packaging) | 210 kg | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core | 25mm high-density MDF substrate with 25mm edge build-up | |
|---|---|---|
| Tabletop surface finish | Natural oak wood veneer with matte polyurethane coating | |
| Support leg frame | 2.0mm thick cold-rolled steel with light beige powder-coat finish | |
| Center cable raceway | 1.5mm thick extruded aluminum with brushed dark gray finish | |
| Cable access caps | Matte white ABS plastic with magnetic fastening | |
| Edge banding | 2mm thick PVC edge matching oak veneer color | |
| Underside support bracing | 1.5mm thick rectangular steel tube welded to leg frames | |
| Leveling feet | Adjustable nylon glide feet on each leg base | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Recessed center raceway with 4 magnetic access caps to route power/data cables | |
|---|---|---|
| Fixed work surface height | 750 mm standard ergonomic meeting height compatible with standard conference chairs | |
| Modular tabletop assembly | 3-section joined tabletop for simplified transport and installation | |
| Cable pass-through capacity | Raceway accommodates up to 8 power cables and 6 data cables per section | |
| Floor protection | Nylon leveling feet adjust 15 mm to compensate for uneven floor surfaces without scratching flooring | |
| Cantilever leg design | Offset leg placement creates unobstructed knee clearance for all seated positions | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | 10-person capacity for formal executive meetings and decision-making sessions | |
|---|---|---|
| Open office meeting areas | Neutral light oak finish complements modern collaborative workspace designs | |
| Training and presentation spaces | Integrated cable management supports laptop and AV equipment for group presentations | |
| Client reception meeting rooms | Professional aesthetic suitable for hosting external stakeholders and clients | |
| Recommended seating pairing | Cantilever frame conference chairs with chrome sled bases matching table design | |
| Floor protection recommendation | Suitable for placement over low-pile commercial carpet or hard flooring with included glides |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, dimensional and safety requirements for commercial use | |
|---|---|---|
| EN 15372:2016 | Durability and stability requirements for non-domestic office tables |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk and table products performance and safety standard for office furniture |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop structural performance | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for tables used in office and public spaces | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panel products, E1 grade recommended |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop structural performance; 2. GB/T 3327-2017: Performance requirements for tables used in office and public spaces; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products, E1 grade recommended; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
