Automatic mm / inch conversion · Core engineering specifications

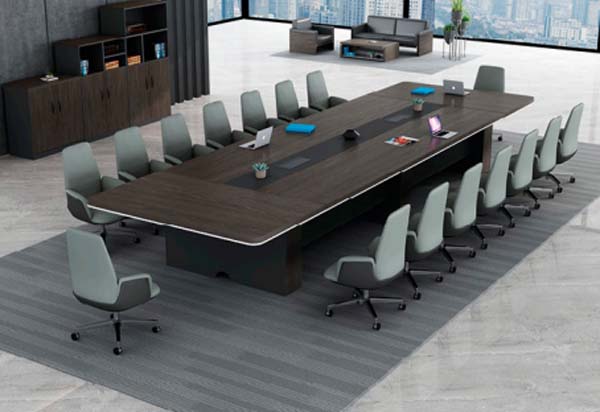

| Overall dimensions | 4800 x 1800 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Tabletop uniform static load capacity | 150 kg/m² | |
|---|---|---|
| Seating capacity | 14 persons | |
| Product net weight | 320 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Edge impact resistance | 10 N·m | |
| Recommended warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop substrate | 25mm high-density particleboard core | |
|---|---|---|
| Tabletop surface finish | Dark walnut wood veneer with matte PU coating | |
| Edge banding | PVC edge trim with light silver contrast finish | |
| Support base | 18mm matte black melamine-faced particleboard panel | |
| Central cable channel cover | Black textured PVC panel | |
| Leveling glides | Nylon adjustable floor glides, 12mm thread | |
| Cable grommets | ABS plastic cable access ports integrated in channel | |
| Hardware fasteners | Zinc-plated steel cam lock and bolt assembly | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Central cable management channel | Full-length recessed channel for routing power and data cables | |
|---|---|---|
| Integrated cable access ports | Evenly spaced access points for cable entry to work positions | |
| Adjustable floor leveling | Glides adjust 15mm to compensate for uneven floor surfaces | |
| Modular assembly design | Knockdown construction for on-site assembly and reconfiguration | |
| Smooth rounded corners | Soft edge profile to reduce impact injury risk | |
| Stain-resistant work surface | Matte coating resists liquid spills and smudges for easy cleaning | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Corporate boardroom | Fits 14 seats for executive board meetings and formal decision-making | |
|---|---|---|
| Training center | Provides large flat work surface for group training and workshop activities | |
| Government meeting facility | Meets formal durable furniture requirements for official public meeting spaces | |
| Recommended pairing | Matches mid-back swivel conference chairs with caster bases for flexible seating |
EU Market Access Requirements* EN Standards
| Office furniture safety requirement | EN 527:2011 | |
|---|---|---|
| Surface durability requirement | EN 14322:2017 | |
| Formaldehyde emission class | EN 312:2010 E1 |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| General technical requirement | GB/T 3324 | |
|---|---|---|
| Surface physicochemical performance | GB/T 4893.1 | |
| Formaldehyde emission limit | GB 18580 | |
| Structural safety requirement | GB/T 10357.1 |
This product must meet the following technical requirements: 1. General technical requirement: GB/T 3324; 2. Surface physicochemical performance: GB/T 4893.1; 3. Formaldehyde emission limit: GB 18580; 4. Structural safety requirement: GB/T 10357.1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
