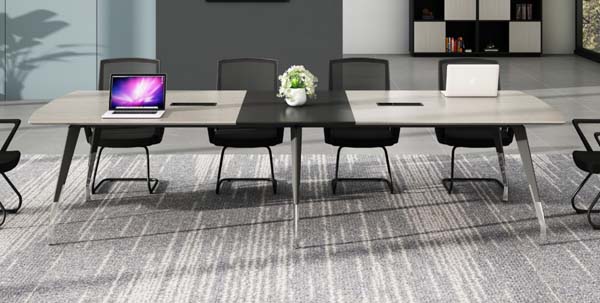

Product supplier8-Person Two-Tone Rectangular Conference Table with Integrated Cable Management, 25mm E1-grade particle board with light wood-effect melamine facing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 1200 × 760 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Knee clearance height | 690 mm | |
| Leg cross-section size | 60 x 30 mm | |
| Central support leg height | 735 mm | |
| Cable cutout slot size | 300 x 80 mm | |
| Per-seat width per long side | 750 mm | |
| Edge banding thickness | 2 mm | |
| Leg wall thickness | 1.5 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total distributed static load capacity | 250 kg | |
|---|---|---|
| Surface scratch resistance rating | 2000 cycles | |
| Recommended seating capacity | 8 persons | |
| Assembly time per unit | 50 minutes | |
| Net product weight | 85 kg | |
| Leveling foot adjustment range | 15 mm | |
| Surface water and stain resistance | Class B1 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer tabletop panels | 25mm E1-grade particle board with light wood-effect melamine facing | |
|---|---|---|
| Central tabletop panel | 25mm E1-grade particle board with black matte melamine facing | |
| Exposed table edges | 2mm thick PVC edge banding, color-matched to adjacent top panels | |
| Corner splayed legs | 1.5mm thick powder-coated steel tube, angled outward for stability | |
| Central support leg | 1.5mm thick polished chrome-finished steel vertical post | |
| Cable cutout inserts | Matte black ABS plastic recessed slot covers | |
| Leveling feet | Reinforced nylon with non-slip rubber base pads | |
| Connection hardware | Zinc-plated steel cam locks and M8 connector bolts | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Two recessed cable slots route power/AV cables from tabletop to floor | |
|---|---|---|
| Floor leveling adjustment | Rotating adjustable feet on each leg compensate for uneven carpet or hard floors | |
| Knock-down assembly | Table ships flat in separate panels and legs for on-site assembly | |
| Multi-sided seating access | Open knee clearance along both long sides supports flexible seating arrangement | |
| Central load support | Vertical middle leg prevents top sag across the 3000mm span | |
| Surface easy cleaning | Smooth non-porous melamine surface wipes clean with standard office cleaning products | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping carton dimensions | 3100 x 650 x 180 mm | |
|---|---|---|
| Gross shipping weight | 100 kg | |
| 20ft container loading quantity | 62 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate open meeting areas | 8-person capacity supports regular team meetings and collaborative work sessions | |
|---|---|---|
| Small to medium boardrooms | Formal two-tone finish suits executive meeting spaces for client presentations | |
| Training and seminar rooms | Durable melamine surface withstands frequent daily use and device placement | |
| Co-working office spaces | Integrated cable management supports laptop and AV device use for shared work sessions | |
| Recommended pairing | Cantilever-frame mesh back conference chairs to match the modern open leg design |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 15372:2008+A1:2016 | Furniture – Strength, durability and safety for non-domestic tables, applicable for commercial office use | |
|---|---|---|
| EN 13722:2004 | Furniture – Test methods for table stability, applicable to multi-leg conference table design |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop panel construction | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel leg frame strength | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade top core |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop panel construction; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel leg frame strength; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade top core; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
