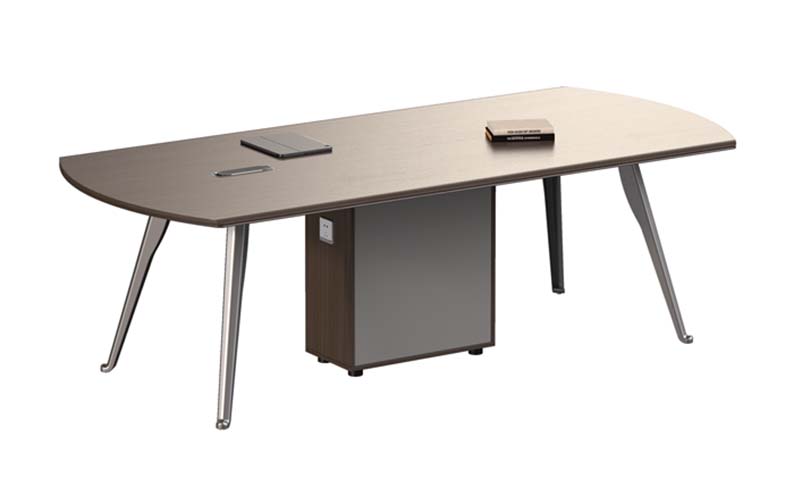

Curved-End Laminate Conference Table with Central Cable Box and Modesty Cabinet (model CT-CRV2400-CAB-GR) is listed under Conference Table. Dimensions: 2400 × 1100 × 750 mm. Materials: 25 mm engineered-wood core with high-pressure melamine face and 2 mm PVC edge, assembled to a 50 mm visual profile. Load capacity: 120 kg. Product Features: curved-end,table,laminate,work,steel,leg,frame,central,cable,management,panel-end. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | CT-CRV2400-CAB-GR |
| Overall dimensions (W × D × H) | 2400 × 1100 × 750 mm | Carcass Panel Thickness | 25 mm |
| Back Panel Thickness | 9 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | Distributed tabletop load | 120 kg |
| Concentrated work-surface load | 40 kg | Central cabinet load | 30 kg |
| Leveling adjustment | 10 mm per glide | Occupant rating | 6 users |
| Recommended tabletop deflection limit | L/300 | Frame stability sway limit | 6 mm at table edge under 400 N lateral force |
| Product net weight | 95 kg | Seating capacity | 6 persons |
| Shelf Distributed Load | 30 kg/shelf | Tabletop substrate and surface | 25 mm engineered-wood core with high-pressure melamine face and 2 mm PVC edge, assembled to a 50 mm visual profile |
| Central cabinet | Dark woodgrain melamine side panels with a matte gray front/modesty panel and black adjustable glides | Support legs | Six powder-coated steel tapered legs with rounded floor-contact feet, arranged in two three-leg splayed frames |
| Cable access hardware | Recessed dark-gray plastic or aluminum port covers with a separate elongated cable slot on the tabletop | Power/data plate | Flush-mounted gray electrical/data faceplate on the cabinet side, supplied as a cutout-and-plate assembly |
| Edge and impact protection | Matching dark PVC edge banding around the curved tabletop perimeter with rounded corners | Cable routing | Cables pass from tabletop equipment through the 200 x 120 mm central box and the 160 x 60 mm slot into the enclosed cabinet |
| Power and data integration | The side faceplate provides an accessible mounting point for power, network and AV connections at 450 mm above floor | Modesty screening | The central 650 mm-high panel blocks direct knee and cable visibility from the opposite seating side |
| Floor leveling | Four glides under the cabinet and rounded steel feet on the legs support placement on carpet or hard flooring | Tabletop carton size | 2450 x 1150 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
| Reference Packaging Volume | 0.65 m³/set | Meeting room | Suitable for a six-person formal conference room where laptops, documents and AV cabling require central cable access |
| Manager collaboration area | Fits executive offices or project rooms combining a curved meeting top with a central modesty panel and metal splayed legs | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1100 × 750 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop load | 120 kg | |
|---|---|---|
| Concentrated work-surface load | 40 kg | |
| Central cabinet load | 30 kg | |
| Leveling adjustment | 10 mm per glide | |
| Occupant rating | 6 users | |
| Recommended tabletop deflection limit | L/300 | |
| Frame stability sway limit | 6 mm at table edge under 400 N lateral force | |
| Product net weight | 95 kg | |
| Seating capacity | 6 persons | |
| Shelf Distributed Load | 30 kg/shelf |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate and surface | 25 mm engineered-wood core with high-pressure melamine face and 2 mm PVC edge, assembled to a 50 mm visual profile | |
|---|---|---|
| Central cabinet | Dark woodgrain melamine side panels with a matte gray front/modesty panel and black adjustable glides | |
| Support legs | Six powder-coated steel tapered legs with rounded floor-contact feet, arranged in two three-leg splayed frames | |
| Cable access hardware | Recessed dark-gray plastic or aluminum port covers with a separate elongated cable slot on the tabletop | |
| Power/data plate | Flush-mounted gray electrical/data faceplate on the cabinet side, supplied as a cutout-and-plate assembly | |
| Edge and impact protection | Matching dark PVC edge banding around the curved tabletop perimeter with rounded corners |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable routing | Cables pass from tabletop equipment through the 200 x 120 mm central box and the 160 x 60 mm slot into the enclosed cabinet | |
|---|---|---|
| Power and data integration | The side faceplate provides an accessible mounting point for power, network and AV connections at 450 mm above floor | |
| Modesty screening | The central 650 mm-high panel blocks direct knee and cable visibility from the opposite seating side | |
| Floor leveling | Four glides under the cabinet and rounded steel feet on the legs support placement on carpet or hard flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Tabletop carton size | 2450 x 1150 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting room | Suitable for a six-person formal conference room where laptops, documents and AV cabling require central cable access | |
|---|---|---|
| Manager collaboration area | Fits executive offices or project rooms combining a curved meeting top with a central modesty panel and metal splayed legs |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
