PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 1400 × 760 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	165 kg
Distributed tabletop load	300 kg
Concentrated load recommendation	50 kg
Horizontal stability rating	120 kg
Drawer-slide or moving-cycle duty	Not applicable
Cable cover removal cycles	5000 cycles
Surface impact acceptance	45 N-m
Floor pressure	0.012 N/mm2
Warranty target	5 years
Seating capacity layout	12 persons

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	25 mm engineered wood panel with 50 mm built-up edge profile
Top surface finish	Dark brown melamine or high-pressure laminate with matte wood grain
Edge treatment	Matching dark PVC or ABS edge band with rounded profile
End support cabinets	Light warm-grey painted or melamine-faced engineered panels
Inset side accents	Dark grey vertical panels recessed into each end support
Central support and cable hardware	Powder-coated steel or aluminium channel frame with removable panel covers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable routing	Two 2400 x 65 mm removable covers provide access to a concealed centre channel for power, HDMI and network cables
Meeting equipment layout	The 180 mm central service zone leaves 610 mm usable depth on each side for laptops, documents and elbow room
Floor-standing support	Two box-style end pedestals and one central T-support transfer load directly to the floor without wall fixing
Assembly method	Knock-down panel-and-connector assembly with cam bolts, corner brackets and foot-to-top screws

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packaging volume	1.32 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardroom	Install in a 5200 x 3000 mm room to seat 12 participants with space for chairs, circulation and wall display equipment
Meeting and training suite	Use for laptop-based meetings because the centre channel supports power and data while each participant retains 610 mm table depth

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables and desks safety, strength and durability requirements
EN 527-2:2002	Mechanical test methods for office tables, including vertical static load, durability and stability
EN 15372:2016	Safety, strength and durability requirements for non-domestic storage furniture; use only if enclosed support cabinets contain storage
EN 13986:2004+A1:2015	Wood-based panels for construction use, useful as a panel-performance and declaration reference
EN 14073-2:2004	Safety requirements for office storage furniture; relevant only if lockable storage is incorporated into the pedestals

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office tables standard for general safety, structural integrity, load tests and cyclic durability
ANSI/BIFMA X5.9-2019	Storage cabinets safety and durability standard, applicable only if the end supports are usable cabinets rather than fixed cladding
ANSI/BIFMA e3-2019	Furniture sustainability standard for material, energy, human-health and social impact credits

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to tabletop panels, edge bonding, dimensions and structural stability
GB/T 3325-2017	Test method for wooden furniture surfaces, applicable to wear resistance, heat resistance, stain resistance and film adhesion checks
GB/T 10357.5-2011	Furniture mechanical surface test for strength, applicable to distributed and concentrated tabletop load testing
GB/T 10357.7-2013	Furniture table mechanical test for stability, applicable to lateral and end-use overturning checks
GB 18584-2001	Indoor decorative-material limit of formaldehyde release for wood-based furniture
GB/T 28204-2020	Technical requirements for movable furniture hardware, applicable to removable access covers and connectors where hardware is used

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop panels, edge bonding, dimensions and structural stability;
2. GB/T 3325-2017: Test method for wooden furniture surfaces, applicable to wear resistance, heat resistance, stain resistance and film adhesion checks;
3. GB/T 10357.5-2011: Furniture mechanical surface test for strength, applicable to distributed and concentrated tabletop load testing;
4. GB/T 10357.7-2013: Furniture table mechanical test for stability, applicable to lateral and end-use overturning checks;
5. GB 18584-2001: Indoor decorative-material limit of formaldehyde release for wood-based furniture;
6. GB/T 28204-2020: Technical requirements for movable furniture hardware, applicable to removable access covers and connectors where hardware is used;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CF-RCT-3600-CBL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CF-RCT-3600-CBL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CF-RCT-3600-CBLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

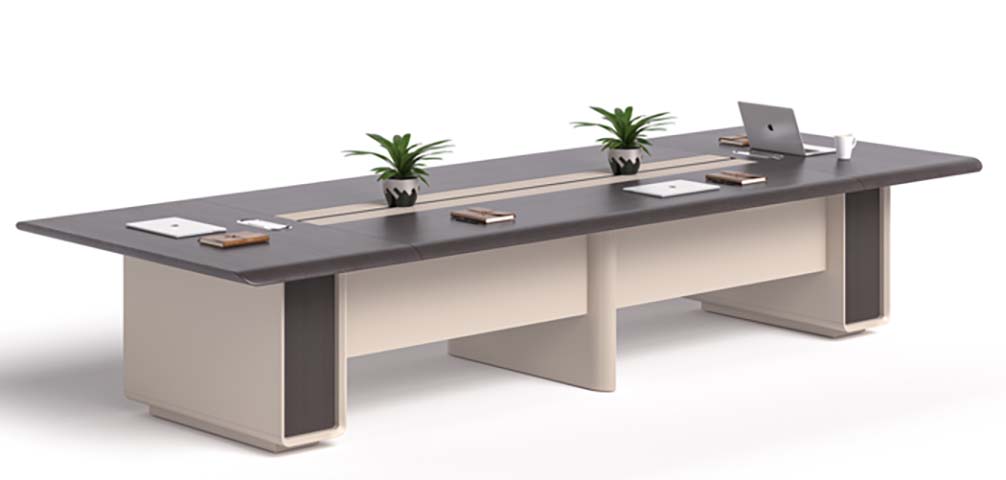

The Large Two-Tone Rectangular Conference Table with Central Cable Trays, model CF-RCT-3600-CBL, presents an executive rectangular form suited to formal meeting environments. Its dark brown matte wood-grain tabletop is balanced by light warm-grey end support cabinets, while dark grey vertical panels are recessed into each support to create a structured two-tone appearance. The layout uses two box-style end pedestals and one central T-support, all transferring load directly to the floor without requiring wall fixing. The finished top is 45 mm thick, combining a 25 mm engineered wood substrate with a 50 mm built-up edge profile. The surface is available in dark brown melamine or high-pressure laminate with a matte wood grain, and the matching dark PVC or ABS edge band follows a rounded profile. End supports use light painted or melamine-faced engineered panels, with the main support section measuring 80 mm and a 2 mm metal wall. Central support and cable-management components use powder-coated steel or aluminium channel framing with removable panel covers. The table weighs 165 kg and is rated for a 300 kg distributed tabletop load, a 50 kg concentrated load recommendation, and a 120 kg horizontal stability rating. Surface impact acceptance is 45 N-m, and the cable covers are rated for 5000 removal cycles. Functionality is centered on cable management. Two removable 2400 by 65 mm covers provide access to a concealed centre channel for power, HDMI, and network cables. Each cable opening is 80 mm in diameter, with a cable tray depth of 120 mm. The 180 mm central service zone retains 610 mm of usable depth on each side for laptops, documents, and personal meeting space. Each main seat has 680 mm of knee clearance height and 900 mm of clearance width. The table is well suited to corporate boardrooms and meeting or training suites, particularly laptop-based sessions requiring power and data access. A 5200 by 3000 mm room can accommodate the table with seating for 12 participants, chair movement, circulation, and wall display equipment. Procurement teams should note the unbranded product is supplied as a knock-down panel-and-connector assembly using cam bolts, corner brackets, and foot-to-top screws. The reference assembly time is 40 minutes per set. It ships as one set in two cartons, with reference packaging dimensions of 2100 by 1100 by 300 mm, total packaging volume of 1.32 CBM, and packaged gross weight listed as 90 kg per set across the two-carton configuration.

Large Two-Tone Rectangular Conference Table with Central Cable Trays Specifications
