PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4800 × 1600 × 760 mm
Overall table dimensions	4800 x 1600 x 760 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load on tabletop	600 kg total evenly distributed
Concentrated load at power-module area	50 kg over a 300 x 300 mm area
Product net weight	260 kg
Seating capacity	12 users
Top panel edge impact resistance	24 kg impact acceptance target
Hardware cycle target	10,000 open-close cycles for access covers
Floor load	1.4 kPa at installed table footprint
Warranty period	5 years under normal office use
Seating capacity layout	12 persons, 5 seats per long side plus 1 seat at each end
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Dark walnut veneer or walnut-grain laminate over 50 mm composite substrate, with smooth semi-matte finish
Edge profile	Contrasting light gray or silver edge banding with radiused corners and laminated impact-resistant edge
Central service strip	Brushed-silver painted metal or aluminum-composite cable cover with segmented access lids
Power access plates	White or silver flush panels with cable pass-through holes at two meeting positions
Modesty panels	Light gray laminate-faced composite panels with dark horizontal trim
End supports and center divider	Dark gray panel base with light gray inset panel and silver floor trim

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated cable management	Continuous 220 mm center raceway with segmented covers and two 220 x 160 mm access zones for power, HDMI, network, and table-mounted connection boxes
Cable pass-through points	At least 8 circular grommet holes arranged around the two service modules for laptop and AV cabling
Meeting-media setup	Two service zones support displays or conference calls from opposite seating areas, with cables concealed beneath the center cover
Freestanding installation	Three panel supports distribute the load without wall attachment; floor leveling is handled under the end base feet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2450 x 820 x 220 mm per top-section carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardroom	12-person table for formal meetings, video conferences, and document review, with dual cable zones serving both table ends
Executive meeting area	Dark walnut top and enclosed panel bases suit executive offices or headquarters meeting suites requiring a permanent AV-ready table

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety recommendation	EN 15372 for strength, durability, and stability requirements for non-domestic tables
Surface emission recommendation	EN 16516 formaldehyde emission test method for panel materials
Edge and surface impact recommendation	EN 1518 vertical-surface impact test for finished furniture surfaces

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600 E1 limit for wood-based panels used in the substrate
Furniture dimensional fitness recommendation	GB/T 3324 for wooden furniture dimensional and structural inspection
Fire safety recommendation	GB 20286 classified flame-retardant material option for public meeting areas

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600 E1 limit for wood-based panels used in the substrate;
2. Furniture dimensional fitness recommendation: GB/T 3324 for wooden furniture dimensional and structural inspection;
3. Fire safety recommendation: GB 20286 classified flame-retardant material option for public meeting areas;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CFD-4800-WV-CM

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CFD-4800-WV-CM

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CFD-4800-WV-CMOpen Export Tool

Quick Actions

Post an RFQ

Product Description

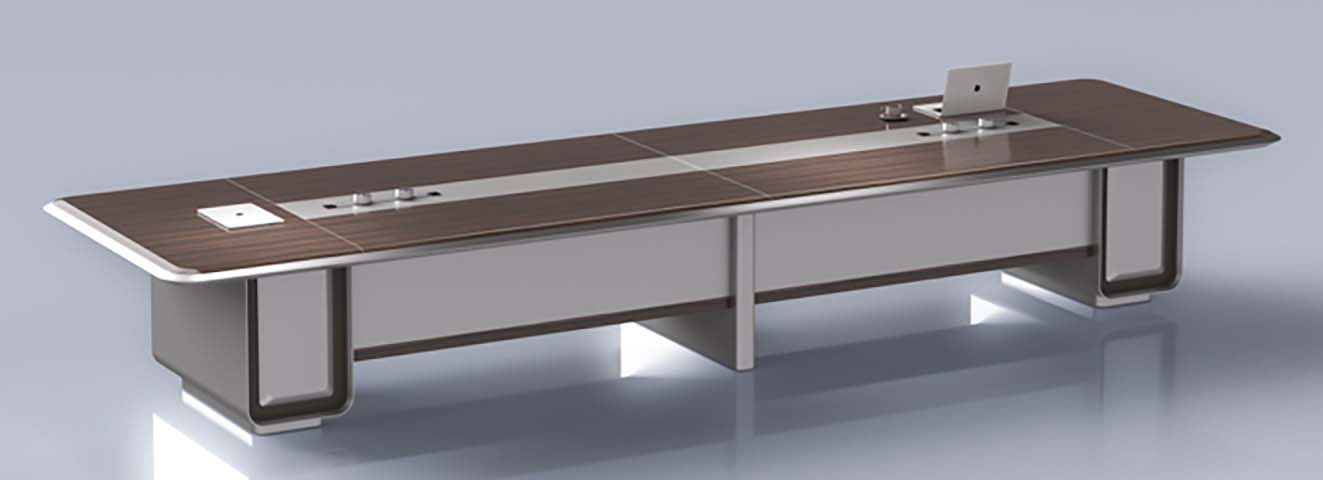

The CFD-4800-WV-CM is an unbranded large rectangular conference table designed for modern executive meeting environments. Its dark walnut wood-veneer surface, or walnut-grain laminate option, sits over a 50 mm composite substrate with a smooth semi-matte finish. Contrasting light gray or silver edge banding follows the radiused corners, while the light gray modesty panels, dark gray box-style supports, and silver floor trim create a structured, professional appearance. The overall table measures 4800 x 1600 x 760 mm, with a 45 mm finished top thickness and seating for 12 users. Each main seat position provides 680 mm of knee clearance height and 900 mm of width. A continuous 220 mm central raceway forms the core of the table's integrated cable management system. It is concealed by a brushed-silver painted metal or aluminum-composite cover with segmented access lids. Two 220 x 160 mm access zones accommodate power, HDMI, network, and table-mounted connection boxes, with white or silver flush access plates at two meeting positions. At least eight circular grommet holes, each 80 mm in diameter, are arranged around the two service modules for laptop and AV cabling, while a cable tray with 120 mm depth helps contain wiring beneath the surface. The dual service zones support meetings from either end of the table, allowing displays or conference-call equipment to be used by opposite seating areas with cables hidden under the center cover. This makes the table well suited to corporate boardrooms, formal meeting rooms, video conferences, document review, and executive or headquarters meeting suites that require a permanent AV-ready table. Construction uses three freestanding panel supports, including end supports and a center divider, so the table does not require wall attachment. The 80 mm support sections use 2 mm metal wall construction, and leveling is handled under the end base feet. The recommended tabletop static load is 600 kg evenly distributed, with a 50 kg concentrated load over a 300 x 300 mm area at the power-module location. The access covers have a 10,000 open-close cycle target, and the edge is designed to accept a 24 kg impact target. The net weight is 260 kg, and installed floor load is 1.4 kPa at the table footprint. Procurement planning should account for delivery in two cartons per set, with reference packaging dimensions of 2100 x 1100 x 300 mm, packaged gross weight of 90 kg per set, and packaging volume of 0.55 cubic meters. Reference assembly time is 40 minutes per set. Buyers should also confirm the preferred surface and trim options, plan room access for the long top-section cartons, and coordinate power and data requirements before installation.

Large Rectangular Wood Veneer Conference Table with Central Cable Management Specifications
