PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 1500 × 750 mm
Overall dimensions	4200 x 1500 x 750 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	260 kg
Distributed tabletop load	300 kg
Central panel point load	30 kg
Power module insertion cycles	5000 cycles
LED service life	30000 hours
Floor contact load	4 support pads at cabinet corners
Assembly crew requirement	4 persons
Suggested warranty	5 years for furniture structure and 2 years for electrical components
Seating capacity layout	12 persons, with 5 seats on each long side and 1 end seat at each end
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate and finish	40 mm engineered-wood substrate with walnut wood veneer and 2 mm matching edge banding
Central service panel	1.5 mm matte silver aluminum plate with precision cutouts
Support cabinet	18 mm matte warm-gray painted MDF or particleboard panels with rounded end blocks
Vertical decorative grille	18 mm painted panels with 40 mm-wide vertical slats and 25 mm reveal gaps
Cable and power hardware	Powder-coated steel outlet frames, zinc-alloy grommet and black plastic cable brushes
Ambient lighting	24 V LED strip housed in an anodized aluminum channel with diffused cover

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated cable management	A 2400 mm central raceway routes power, HDMI and network cables between flush and flip-up tabletop modules
Power and data access	2 flip-up or sliding modules provide 4 power sockets, 2 network ports and 2 AV/data ports per module
Ambient lighting	A 24 V dimmable LED strip provides indirect perimeter light below the tabletop edge
Floor-standing installation	The enclosed cabinet base carries the top without exposed legs and requires on-site leveling and electrical connection

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Tabletop carton	4300 x 1600 x 120 mm, 155 kg gross
Accessory carton	800 x 400 x 300 mm, 20 kg gross for power modules, cables and LED driver
On-site assembly time	4 hours for 4 installers including leveling, cable connection and LED testing
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive boardroom	Suits 10 to 12 participants in a 6.5 m x 4.8 m meeting room, with laptops, documents and central conferencing equipment
Corporate conference and video meeting space	Recommended where concealed cabling, tabletop power and indirect lighting are required for frequent hybrid meetings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety	EN 16139:2013+A1:2022 for strength, durability and stability of non-domestic seating-area tables
Formaldehyde emission	EN 13986 classification for wood-based panels used in building and interior applications
Socket outlet safety	EN 60884for plugs and socket-outlets if European-market power modules are fitted
LED module safety	EN 62031 for LED modules used in general lighting

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Table durability	ANSI/BIFMA X2021desk and table products test for static load, stability and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission	GB/T 39600E1 limit for artificial-board substrates used in the tabletop and cabinet
Furniture structural safety	GB/T 10357.1table strength and load test methods for static-load acceptance
Furniture coating limit	GB 28481for restricted substances in plastic and coated furniture components
Electrical accessories	GB/T 2021for household and similar single-phase plug-and-socket systems if China-market sockets are installed

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission: GB/T 39600E1 limit for artificial-board substrates used in the tabletop and cabinet;
2. Furniture structural safety: GB/T 10357.1table strength and load test methods for static-load acceptance;
3. Furniture coating limit: GB 28481for restricted substances in plastic and coated furniture components;
4. Electrical accessories: GB/T 2021for household and similar single-phase plug-and-socket systems if China-market sockets are installed;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CFM-4200-RECT-POWER-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CFM-4200-RECT-POWER-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CFM-4200-RECT-POWER-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

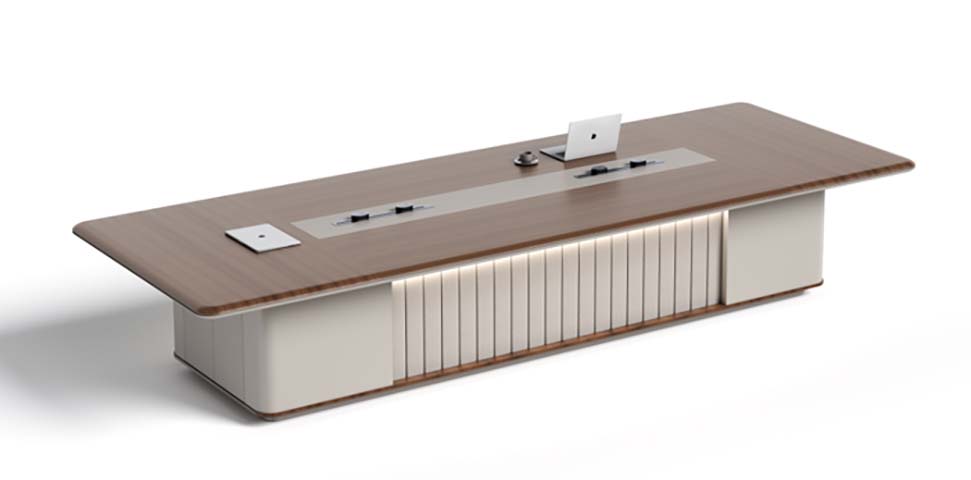

The CFM-4200-RECT-POWER-LED is a rectangular executive conference table designed for modern boardrooms and meeting environments that require a clean tabletop, convenient power access, and integrated ambient lighting. Its long, straight layout is softened by radius corners, while the enclosed cabinet base gives the table a substantial, resolved appearance without exposed legs. Walnut wood veneer provides a refined top surface, and the warm-gray painted support cabinet is paired with a vertical decorative grille, rounded end blocks, and a matte silver central service panel for a contemporary executive look. The tabletop uses an engineered-wood substrate with walnut veneer and matching edge banding, producing a finished top thickness of 45 mm. The base is constructed from painted MDF or particleboard panels, with support concentrated at four cabinet-corner floor pads for leveling during installation. Metal detailing includes the matte aluminum service plate, powder-coated steel outlet frames, zinc-alloy cable grommet, and an anodized aluminum channel for the LED strip. Black cable brushes help maintain a neat appearance where cabling passes through the table. A central raceway runs along the table and routes power, HDMI, and network cables between flush and flip-up modules. Each module includes power sockets, network connections, and AV or data ports, supporting laptops, documents, conferencing devices, and hybrid meeting equipment. The cable system is complemented by an 80 mm cable opening and a cable tray, while a dimmable 24 V LED strip below the tabletop edge provides indirect perimeter lighting. The enclosed base keeps cable pathways and service components visually contained. This table is suited to executive boardrooms configured for 10 to 12 participants, as well as corporate conference rooms used for frequent video meetings. It is most appropriate where concealed cabling, tabletop power, and subdued indirect lighting contribute to a professional meeting atmosphere. The design also works in premium residential settings that include a dedicated boardroom-style meeting or work space. Procurement planning should account for the table’s 260 kg net weight, two-carton delivery, and four-person assembly requirement. Installation includes leveling, electrical connection, cable routing, and LED testing, with the stated on-site assembly allowance set at four hours for four installers. Buyers should confirm module format, local socket compatibility, room access, electrical provisions, and floor protection before purchase. The specified distributed tabletop load is 300 kg, with a 30 kg point-load limit on the central panel. Integrated power modules are rated for 5000 insertion cycles, and the LED strip has a 30000-hour service life.

Rectangular Executive Conference Table with Integrated Power and Lighting Specifications
