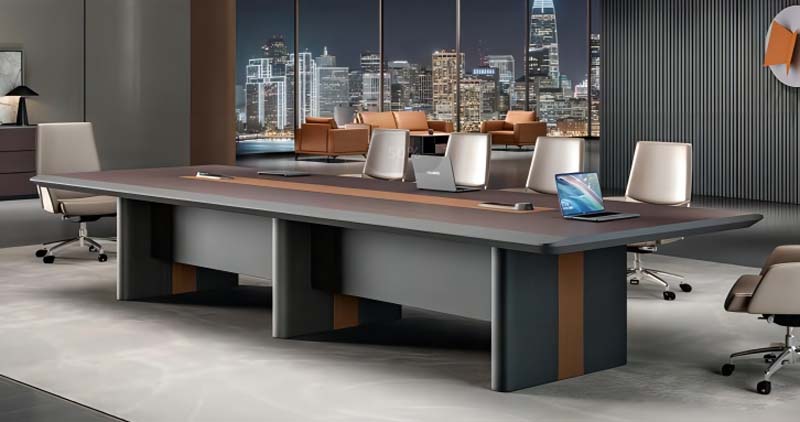

Product supplierDual-Tone Pedestal Base Rectangular Conference Table with Full-Length Central Cable Channel, 25mm E1-grade medium-density fiberboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1220 × 760 mm | |
|---|---|---|
| tabletop thickness | 25 mm | |
| beveled edge profile radius | 5 mm | |
| central cable channel width | 200 mm | |
| seated knee clearance height under top | 685 mm | |
| pedestal support base depth | 1220 mm | |
| pedestal support base height | 650 mm | |
| long-side seating clearance | 700 mm per seat | |
| end-side seating clearance | 600 mm per seat | |
| vertical cable pass-through diameter | 80 mm | |
| leveling foot adjustment range | 10 mm | |
| modesty panel height | 450 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| distributed tabletop static load capacity | 300 kg | |
|---|---|---|
| maximum seated user capacity | 10 people | |
| net product weight | 134 kg | |
| surface scratch resistance rating | 2000 cycles | |
| surface stain resistance threshold | 24 hours | |
| base stability lateral load rating | 150 kg | |
| finish UV fade resistance | Grade 4 | |
| connector static shear strength | 800 kg per joint | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| tabletop core | 25mm E1-grade medium-density fiberboard | |
|---|---|---|
| tabletop surface finish | Matte dark gray anti-fingerprint laminate | |
| tabletop edging | 2mm ABS shock-resistant edge banding | |
| central cable channel trim | Warm brown wood-grain laminate | |
| pedestal support frame | 1.5mm thick powder-coated steel inner frame | |
| pedestal outer panels | 18mm dark gray and warm brown veneer MDF panels | |
| modesty panel | 18mm matte gray MDF panel | |
| leveling feet | Reinforced nylon with steel threaded inserts | |
| cable channel cover | Removable brushed plastic access panel | |
| connection hardware | Zinc-plated steel cam locks and hex bolts | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| full-length central cable management | Recessed channel routes power, HDMI, and data cables along table length | |
|---|---|---|
| removable cable channel covers | Sectional lids allow cable access at any seating position without lifting full panel | |
| adjustable leveling feet | 10mm threaded adjustment compensates for uneven floor surfaces | |
| multi-position power/data module compatibility | Channel supports drop-in power outlets, USB charging, RJ45 and HDMI ports | |
| unobstructed dual-side knee clearance | Panel pedestal layout provides open leg space along both long sides | |
| integrated modesty privacy panel | Solid panel between supports blocks view of users' legs from opposite side | |
| impact-resistant edge protection | Soft beveled ABS edging reduces injury risk from sharp corners | |
| easy-clean anti-fingerprint surface | Matte laminate resists smudges and wipes clean with standard office cleaners | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| corporate boardrooms | 10-person capacity supports formal executive meetings and board sessions | |
|---|---|---|
| executive meeting suites | Dual-tone dark gray and warm brown finish matches premium contemporary office interiors | |
| training and seminar spaces | Stable flat surface supports training materials, devices and group workshop activities | |
| client presentation rooms | Professional streamlined aesthetic creates a polished impression for visiting clients | |
| recommended seating configuration | 10 wheeled executive office chairs, 5 per long side plus 1 per short end |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements applicable to commercial meeting tables | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture, structural stability requirements applicable to pedestal support structure | |
| EN 12721:2009 | Furniture surface resistance to cold liquids, applicable to tabletop stain performance verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to table load, stability and durability testing for office use |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural safety and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required E1 grade ≤0.124mg/m³ for indoor use | |
| GB/T 4893.8-2013 | Furniture surface wear resistance test method, applicable to tabletop laminate durability | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to static load and stability verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural safety and finish quality; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required E1 grade ≤0.124mg/m³ for indoor use; 3. GB/T 4893.8-2013: Furniture surface wear resistance test method, applicable to tabletop laminate durability; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to static load and stability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
