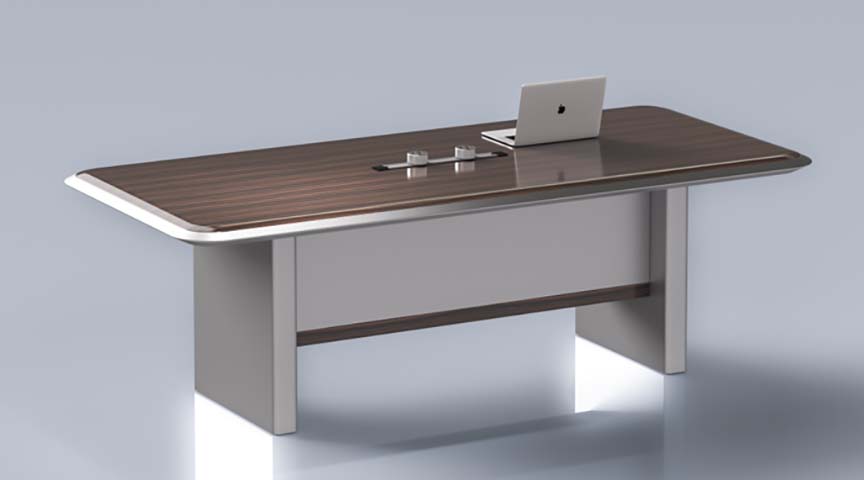

Rounded Rectangular Boardroom Conference Table with Integrated Cable Module (model CONF-RC-2400-WM) is listed under Conference Table. Dimensions: 2400 × 1100 × 750 mm. Materials: Dark walnut-grain high-pressure laminate over 50 mm engineered-wood substrate with matching molded edge. Load capacity: 120 kg. Product Features: modern,boardroom,style,rounded,rectangular,top,panel-leg,base,integrated,cable,module,wood-grain,laminate. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | CONF-RC-2400-WM |
| Overall dimensions (W × D × H) | 2400 × 1100 × 750 mm | Overall dimensions | 2400 x 1100 x 750 mm |
| Finished Top Thickness | 45 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Net weight | 95 kg | Distributed top load | 120 kg |
| Point load at center | 40 kg over 300 x 300 mm | Per-seat working load | 15 kg per seat |
| Horizontal stability rating | 2 percent lateral deflection limit at 750 mm height | Hardware cyclic service target | 10000 cable-door cycles |
| Surface heat resistance | 80 degrees C for 20 minutes | Color options | 2 visible finishes: dark walnut-grain top and light gray base |
| Warranty target | 5 years structural, 2 years electrical module | Seating capacity layout | 8 persons, 3 per long side and 1 at each end |
| Worktop | Dark walnut-grain high-pressure laminate over 50 mm engineered-wood substrate with matching molded edge | Edge protection | Silver-toned metallic or impact-resistant PVC edge band following the rounded corners |
| End supports | Light gray melamine-faced engineered-wood panel legs with square exposed edges | Modesty panel | Light gray vertical privacy panel with dark wood-grain lower accent rail |
| Internal support frame | Powder-coated rectangular steel frame and corner mounting plates, 2.0 mm target thickness | Cable and power module | Recessed silver aluminum-look strip with two 65 mm round covers and black cable exits |
| Center cable management | Recessed 600 mm strip routes laptop power and data cables through the top with two round access covers | Under-table cable path | Cables can descend behind the modesty panel and route to floor outlets without crossing the knee opening |
| Seating configuration | Supports 8 fixed boardroom seats with three place settings on each long side and one at each end | Floor leveling | Concealed adjustable glides under each panel base provide 15 mm leveling travel |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 1100× 300 mm | Reference Packaged Gross Weight | 90 kg/set in 2 cartons |
| Reference Packaging Volume | 0.55 m³/set | Boardroom and meeting room | Suits 8-person formal meetings where the central cable module supports laptops and presentation equipment |
| Executive meeting or training space | Fits executive suites and corporate training rooms needing a durable dark-wood tabletop and privacy modesty panel | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1100 × 750 mm | |
|---|---|---|
| Overall dimensions | 2400 x 1100 x 750 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 95 kg | |
|---|---|---|
| Distributed top load | 120 kg | |
| Point load at center | 40 kg over 300 x 300 mm | |
| Per-seat working load | 15 kg per seat | |
| Horizontal stability rating | 2 percent lateral deflection limit at 750 mm height | |
| Hardware cyclic service target | 10000 cable-door cycles | |
| Surface heat resistance | 80 degrees C for 20 minutes | |
| Color options | 2 visible finishes: dark walnut-grain top and light gray base | |
| Warranty target | 5 years structural, 2 years electrical module | |
| Seating capacity layout | 8 persons, 3 per long side and 1 at each end |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | Dark walnut-grain high-pressure laminate over 50 mm engineered-wood substrate with matching molded edge | |
|---|---|---|
| Edge protection | Silver-toned metallic or impact-resistant PVC edge band following the rounded corners | |
| End supports | Light gray melamine-faced engineered-wood panel legs with square exposed edges | |
| Modesty panel | Light gray vertical privacy panel with dark wood-grain lower accent rail | |
| Internal support frame | Powder-coated rectangular steel frame and corner mounting plates, 2.0 mm target thickness | |
| Cable and power module | Recessed silver aluminum-look strip with two 65 mm round covers and black cable exits |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Center cable management | Recessed 600 mm strip routes laptop power and data cables through the top with two round access covers | |
|---|---|---|
| Under-table cable path | Cables can descend behind the modesty panel and route to floor outlets without crossing the knee opening | |
| Seating configuration | Supports 8 fixed boardroom seats with three place settings on each long side and one at each end | |
| Floor leveling | Concealed adjustable glides under each panel base provide 15 mm leveling travel |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Boardroom and meeting room | Suits 8-person formal meetings where the central cable module supports laptops and presentation equipment | |
|---|---|---|
| Executive meeting or training space | Fits executive suites and corporate training rooms needing a durable dark-wood tabletop and privacy modesty panel |
EU Market Access Requirements* EN Standards
| Office furniture safety | EN 16139:2013 plus A1:2021 for strength, durability and safety of non-domestic seating-area tables | |
|---|---|---|
| Surface performance | EN 14372:2004 test methods for surfaces in office and educational furniture | |
| Formaldehyde panel emission | EN 13986 for wood-based panels with E1 classification |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Dimensional and structural furniture standard | GB/T 3324for wooden furniture general technical requirements | |
|---|---|---|
| Laminate furniture test standard | GB/T 4893 series for surface resistance to wear, heat, pollution and impact | |
| Formaldehyde emission | GB 18580for formaldehyde emission from wood-based panels | |
| Electrical accessory safety | GB/T 2099.1for plugs and socket-outters if power sockets are supplied |
This product must meet the following technical requirements: 1. Dimensional and structural furniture standard: GB/T 3324for wooden furniture general technical requirements; 2. Laminate furniture test standard: GB/T 4893 series for surface resistance to wear, heat, pollution and impact; 3. Formaldehyde emission: GB 18580for formaldehyde emission from wood-based panels; 4. Electrical accessory safety: GB/T 2099.1for plugs and socket-outters if power sockets are supplied; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
