PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3660 × 1370 × 760 mm
Tabletop thickness	51 mm
End pedestal panel width	1370 mm
End pedestal panel thickness	76 mm
Knee clearance height under table	660 mm
Central cable raceway width	150 mm
Modesty panel height	350 mm
Floor clearance under modesty panel	360 mm
Polished metal edge trim thickness	2 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed static tabletop load capacity	136 kg
Seating capacity	12 people
Product net weight	221 kg
Surface scratch resistance rating	2000 cycles
Adjustable leveling glide adjustment range	13 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop core	E1-grade engineered composite wood core
Tabletop surface	Dark walnut-toned scratch-resistant thermally fused laminate/wood veneer
Edge trim	Polished chrome-plated metal trim
End pedestal panels	Engineered wood panels with matching dark wood finish
Central cable raceway cover	Matte grey rigid PVC/ABS removable cover
Undertable modesty panel	Matte dark grey powder-coated steel panel
Leveling glides	Nylon base with threaded steel adjusters
Cable access port	Powder-coated steel cable pass-through under table center
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable management raceway	Full-length recessed channel with removable cover for routing power, Ethernet, and AV cables
Undertable cable pass-through	Central under-table opening for routing cables to floor outlets
Leveling adjustment	Threaded glides at each pedestal base to stabilize table on uneven floors
Open knee space design	Unobstructed legroom along both long sides for unobstructed seated access
Raceway modular accessory compatibility	Supports installation of pop-up power outlets, USB chargers, and data ports at custom positions
Surface maintenance	Stain-resistant non-porous finish for easy cleaning of meeting room spills
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardrooms	Designed for 12-person formal executive meetings with integrated power/data access for presentation equipment
Training facilities	Supports multi-user laptop and device connection for group training sessions
Commercial office spaces	Matches professional modern office decor with dark wood finish and polished metal trim
Recommended seating configuration	Pair with 12 mid-back conference chairs with armless or narrow arm design to fit around the table perimeter

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 15372:2016	Safety, strength, and durability standard for non-domestic office tables, applicable for performance validation
EN 14073-2:2004	Storage and cable management safety requirements for office furniture, applicable to raceway design

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk and table performance standard for commercial office furniture, recommended for load and durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish quality verification
GB/T 18584-2001	Formaldehyde emission limit for wooden furniture, required for indoor office air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality verification;
2. GB/T 18584-2001: Formaldehyde emission limit for wooden furniture, required for indoor office air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-DW3660-12P

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-DW3660-12P

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-DW3660-12POpen Export Tool

Quick Actions

Post an RFQ

Product Description

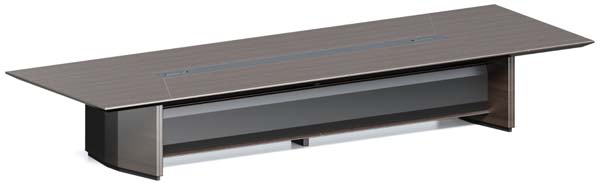

The CT-DW3660P large rectangular conference table features a clean modern commercial design defined by open pedestal base construction and streamlined integrated cable management. It presents a dark walnut-toned tabletop framed by polished chrome-plated metal edge trim, supported by matching dark wood finished end pedestal panels that frame unobstructed open legroom along both long sides. A full-length recessed central cable raceway runs the length of the tabletop, capped with a matte grey rigid PVC/ABS removable cover that sits flush with the table surface for a seamless visual profile, while a matte dark grey powder-coated steel modesty panel is mounted under the table center for visual privacy without blocking seated access. The table measures 3660 mm long, 1370 mm wide and 760 mm tall, with a 51 mm thick tabletop built on an E1-grade engineered composite wood core, finished in a scratch-resistant, stain-resistant non-porous thermally fused laminate or wood veneer. The end pedestal panels are 1370 mm wide and 76 mm thick, fitted at the base with nylon leveling glides with threaded steel adjusters that deliver 13 mm of adjustment to stabilize the table on uneven floors. The central cable raceway is 150 mm wide, connected to a powder-coated steel under-table cable pass-through to route power, Ethernet and AV cables directly to floor outlets, with capacity to hold 10 power or data cables and support a 10 kg tray load. The raceway supports custom-positioned installation of pop-up power outlets, USB chargers and data ports, and the tabletop supports a 136 kg distributed static load, with a scratch resistance rating of 2000 cycles and a non-porous surface that allows simple cleaning of meeting room spills. It offers 660 mm of knee clearance under the table, 360 mm of floor clearance under the 350 mm tall modesty panel, and seats 12 people comfortably. The table is ideally suited for corporate boardrooms hosting formal executive meetings with presentation equipment, training facilities supporting multi-user laptop and device connections, and professional commercial office spaces with modern decor; it is recommended to pair with 12 mid-back conference chairs with armless or narrow arm designs for optimal perimeter fit. For procurement, note the product ships unbranded in 2 cartons per set, with a net weight of 221 kg, packaged gross weight of 90 kg per set across two cartons, and a reference assembly time of 40 minutes per set; select narrow-profile seating to ensure all 12 positions remain accessible for regular use.

Large Rectangular Conference Table with Integrated Central Cable Raceway Specifications
