Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3000 x 1200 x 750 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Beveled edge width | 90 mm | |
| End trestle splay angle | 22 degrees from vertical | |
| Central support cross-section | 120 x 120 mm square | |
| Cable channel recess width | 150 mm | |
| Cable channel recess depth | 8 mm | |
| Knee clearance height under apron | 680 mm | |
| Leg base foot width | 80 mm | |
| Adjustable leveler travel | 10 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Recommended seating capacity | 8 people | |
|---|---|---|
| Distributed tabletop static load | 600 kg | |
| Net product weight | 135 kg | |
| Surface scratch resistance | 2000 cycles | |
| Frame static load per support | 300 kg | |
| Warranty period | 3 years | |
| Available finish options | 6 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop substrate | 25mm E1-grade particleboard core | |
|---|---|---|
| Tabletop surface | 0.6mm oak wood veneer with matte UV-cured lacquer | |
| Edge trim | 3mm shock-resistant ABS edging | |
| Support legs and beams | 2mm thick powder-coated light gray steel | |
| Cable channel liner | Fire-retardant ABS plastic trough | |
| Leveler pads | Reinforced nylon base with steel threaded stud | |
| Connector hardware | Zinc-plated steel M8 bolts and cam locks | |
| Underside bracing | 1.5mm thick steel cross beams | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features

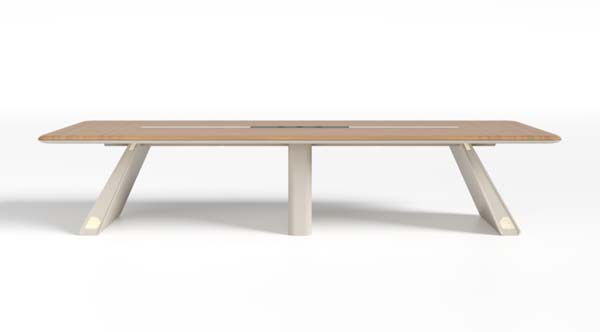

| Central cable management | Continuous recessed channel routes power/data cables along full table length | |
|---|---|---|
| Floor level adjustment | Threaded levelers at each foot adjust 10mm to compensate for uneven floors | |
| Knockdown assembly | Three support assemblies bolt to pre-drilled underside beams for on-site installation | |
| Modular power integration | Recessed channel accepts 3 AC outlets, 2 USB ports, 1 HDMI and 1 RJ45 port | |
| Cable concealment | Removable channel covers hide wiring while maintaining smooth tabletop surface | |
| Anti-racking structure | Cross-braced trestle ends and central support prevent lateral wobble during use | |
| Edge impact protection | ABS edge trim absorbs knocks to prevent chipping at seating positions | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Corporate boardrooms | Seats 8 participants for formal meetings and presentations | |
|---|---|---|
| Open office meeting areas | Light oak and light gray finish complements modern open-plan office interiors | |
| Small conference facilities | Stable three-support design eliminates crossbars blocking knee room for seated users | |
| Hybrid meeting rooms | Integrated central cable channel supports AV and power connections for video conferencing | |
| Training rooms | Durable scratch-resistant surface withstands daily use in multi-purpose training spaces | |
| Executive meeting suites | Refined beveled wood edge provides a premium aesthetic for executive areas |
EU Market Access Requirements* EN Standards
| Office furniture safety | EN 15372:2008 strength, durability and stability requirements | |
|---|---|---|
| Formaldehyde emission | EN 13986:2004 Class E1 emission limit | |
| Surface wear resistance | EN 15185:2011 abrasion resistance test for furniture surfaces |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Tabletop formaldehyde emission | GB/T 18580E1 limit | |
|---|---|---|
| Structural strength testing | GB/T 3324 general technical requirements for wood furniture | |
| Metal coating adhesion | GB/T 1993impact resistance test |
This product must meet the following technical requirements: 1. Tabletop formaldehyde emission: GB/T 18580E1 limit; 2. Structural strength testing: GB/T 3324 general technical requirements for wood furniture; 3. Metal coating adhesion: GB/T 1993impact resistance test; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
