Name: Two-Tone Dual Block Pedestal Rectangular Conference Table with Central Cable Raceway
Brand: aibi furniture
SKU: 8Z4V77

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 1200 × 750 mm
Tabletop thickness	36 mm
Under-table seated clearance height	680 mm
Central cable raceway dimensions	120 mm wide x 30 mm deep
End cap cable grommet diameter	80 mm
Pedestal base dimensions (each)	600 mm wide x 400 mm deep x 680 mm tall
Tabletop edge overhang	50 mm
Dark end cap section length (each)	700 mm
Central wood-grain work surface length	1600 mm
PVC edge banding thickness	2 mm
Adjustable foot pad diameter	40 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed tabletop static load capacity	260 kg
Seating capacity	10 people
Product net weight	120 kg
Surface scratch resistance rating	2000 cycles
Leveling adjustment range per foot pad	15 mm
Edge impact resistance	150 N
Commercial warranty period	60 months
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Central work surface top substrate	E0 grade melamine-faced particleboard
Dark end cap sections	Matte dark melamine-faced particleboard
Dual pedestal bases	High-density MDF with matching dark matte laminate
Edge protection	2mm thick hot-melt applied PVC edge banding
Central cable raceway cover	Grey matte ABS plastic
Cable grommet inserts	Soft-touch brushed grey plastic
Leveling feet	Glass-filled nylon with non-slip rubber base
Assembly hardware	Zinc-plated steel cam locks and connector bolts
Underside support frame	1.5mm thick powder-coated steel cross beams
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable management system	Full-length under-table cable trough with removable top cover
Dual end cable access points	Recessed grommets on both dark end sections
Floor leveling system	Threaded adjustable feet on each pedestal base
Tabletop surface function	Smooth non-porous melamine surface
Under-table clearance design	Open unobstructed leg room along both long sides
Cable capacity	Raceway fits up to 8 standard power cords + 6 AV/data cables
Knock-down assembly design	Tabletop splits into 3 sections for flat-pack shipping
Seating layout compatibility	Works with standard armless and armed conference chairs
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardrooms	Fits 10 attendees for formal executive meetings, integrated cable management supports AV presentation equipment
Large meeting rooms	Two-tone finish matches modern open-plan and private office decor for team and client meetings
Training and conference facilities	Durable commercial-grade surface withstands daily frequent use in shared office and training spaces
High-end co-working spaces	Professional appearance and integrated power access support hot-desking and client booking use cases
Government and institutional offices	Meets E0 environmental standards suitable for public sector indoor air quality requirements
Recommended chair pairing	Mid-back conference chairs with 660mm maximum armrest height to fit under-table clearance
Recommended accessories	Flip-up power/USB modules installed in central raceway for device charging during meetings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-3:2003	Office work tables safety and structural strength test methods, applicable for static load and stability requirements
EN 14073-2:2004	Office storage furniture safety requirements, applicable for enclosed pedestal base structural integrity
EN 717-1:2004	Wood-based panel formaldehyde emission determination, E1 class requirement for commercial indoor furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable for tabletop load, stability and durability performance requirements
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable for material emission and recyclability criteria for office tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel construction and edge sealing quality
GB 18580-2017	Formaldehyde emission limit for wood-based panels, E0 grade requirement ≤0.05mg/m³ for indoor office use
GB/T 4893.8-2013	Surface abrasion resistance test for furniture finishes, applicable for melamine tabletop durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel construction and edge sealing quality;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E0 grade requirement ≤0.05mg/m³ for indoor office use;
3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable for melamine tabletop durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CONF-DBP-3000-2T

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CONF-DBP-3000-2T

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CONF-DBP-3000-2TOpen Export Tool

Quick Actions

Post an RFQ

Product Description

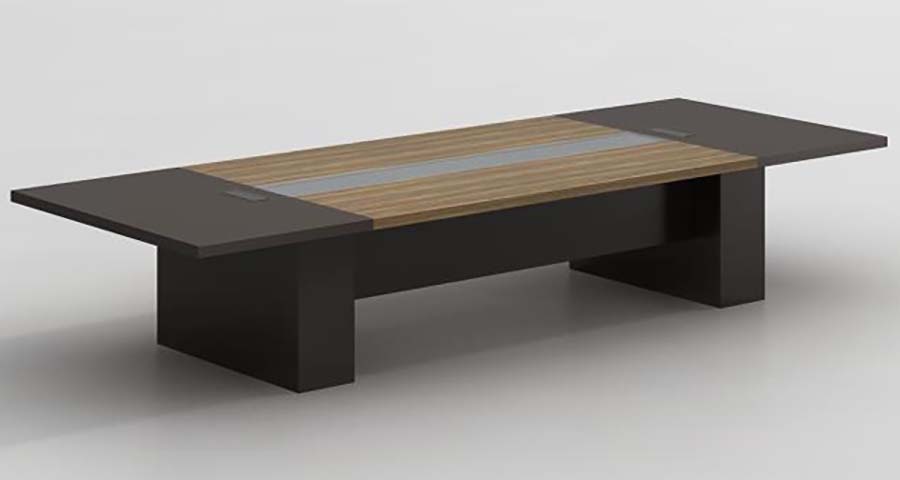

The Two-Tone Dual Block Pedestal Rectangular Conference Table with Central Cable Raceway from aibi furniture, model CONF-DBP-3000T, is a purpose-built commercial conference meeting table designed for modern professional environments. Its visual design features a segmented rectangular tabletop with a central light-toned work surface flanked by two matte dark end sections, supported by two matching dark dual block pedestal bases for a balanced, streamlined two-tone aesthetic. The overall footprint is 3000 x 1200 x 750 mm, with a 36 mm thick tabletop, 50 mm edge overhang, and 680 mm of unobstructed under-table seated clearance along both long sides, creating an open, accessible layout for seated attendees. Each pedestal base measures 600 mm wide by 400 mm deep by 680 mm tall, positioned to avoid interfering with leg room for users positioned along the table edges. The table’s construction uses commercial-grade, durable materials selected for frequent high-traffic use. The central work surface is E0 grade melamine-faced particleboard, while the dark end sections use matte dark melamine-faced particleboard. The dual pedestal bases are crafted from high-density MDF finished with a matching dark matte laminate. All tabletop edges are protected by 2mm thick hot-melt applied PVC edge banding, with impact resistance rated to 150 N. The surface delivers scratch resistance through 2000 cycles of use, and supports a distributed static load of 260 kg. Structural support comes from 1.5mm thick powder-coated steel cross beams under the tabletop, assembled with zinc-plated steel cam locks and connector bolts. Leveling feet made of glass-filled nylon with non-slip rubber bases offer 15 mm of adjustment per pad to accommodate uneven flooring. Core practical functions center on seamless connectivity and usability. A full-length under-table central cable raceway, 120 mm wide by 30 mm deep, features a removable grey matte ABS plastic cover and has capacity for 8 standard power cords plus 6 AV/data cables. Dual recessed cable grommets with soft-touch brushed grey plastic inserts, 80 mm in diameter, are positioned on each dark end cap to provide cable access from tabletop equipment to the central raceway. The smooth non-porous melamine surface simplifies cleaning and resists stains from daily use. The table seats 10 people comfortably, and uses a knock-down assembly design that splits the tabletop into 3 sections for efficient flat-pack shipping, with a 40-minute reference assembly time per set. This table is well-suited for a range of public and commercial workspaces. It fits corporate boardrooms for formal executive meetings, where its integrated cable management supports AV presentation equipment for presentations and collaborative sessions. It works equally well in large meeting rooms, where its two-tone finish coordinates with both modern open-plan and private office decor for team discussions and client meetings. It is built to withstand daily frequent use in training and conference facilities, while its professional appearance and integrated power access support hot-desking and client booking models in high-end co-working spaces. It also meets E0 environmental standards for indoor air quality, making it appropriate for government and institutional office settings.

Two-Tone Dual Block Pedestal Rectangular Conference Table with Central Cable Raceway Specifications
