PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1200 × 750 mm
Tabletop thickness	38 mm
Perimeter edge trim width	20 mm
Under-table knee clearance height	690 mm
Under-table knee clearance depth	1100 mm
Leg assembly splay width at floor	800 mm
Leg tube cross-section	80 x 40 mm
Corner radius of tabletop edges	50 mm
Foot contact pad length	120 mm
Per-seat linear width allocation	750 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static distributed tabletop load capacity	600 kg
Net product weight (reference)	145 kg
Standard seating capacity	8 people
Edge impact resistance	200 N
Surface abrasion resistance	2000 cycles
Adjustable foot height adjustment range	10 mm
Finish formaldehyde emission grade	E0
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop core	E0-grade high-density particleboard
Tabletop surface finish	Matte walnut woodgrain high-pressure laminate
Perimeter edge trim	Brushed silver aluminum alloy bevel
Leg support structure	1.5 mm thick brushed silver finished steel tube
Leg connection brackets	2.5 mm thick powder-coated steel plates
Foot pads	Non-slip nylon glide pads
Fastener hardware	Grade 8.8 zinc-plated steel bolts
Inner support frame	1.2 mm thick steel cross beams
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open under-table layout	No central modesty panel obstruction
Floor leveling function	Threaded adjustable feet on each leg
Modular cable management compatibility	Pre-drilled port positions accept optional cable grommets
Knock-down assembly design	Two leg assemblies attach to pre-drilled tabletop
Seating configuration flexibility	Supports equal spacing of office chairs around all sides
Edge protection design	Continuous beveled metal/ABS edge
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate boardrooms	8-person capacity for executive meetings, formal professional appearance for client engagements
Open-plan office meeting zones	Sleek modern design complements contemporary open office interiors
Training and seminar spaces	Large work surface holds laptops, notepads and presentation materials for group sessions
Hotel conference facilities	Durable commercial construction for high-traffic guest meeting use
Client reception meeting areas	Walnut and silver finish conveys professional brand image for visitor meetings
Project team collaboration spaces	Unobstructed legroom and wide surface supports team brainstorming and document review

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables and desks, applicable to structural stability and safety requirements
EN 15372:2016	Furniture - Strength, durability and safety for non-domestic tables, commercial use standard
EN 13722:2004	Furniture - Test methods for table stability, applicable to splayed leg structure verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Standard for desk products, applicable to table load, stability and durability testing for office use
ANSI/BIFMA X7.1-2022	Standard for formaldehyde and TVOC emissions, applicable to low-emission office furniture acceptance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to tabletop panel performance
GB/T 3327-2016	Test methods for furniture tables, applicable to structural stability and load testing
GB 18584-2001	Limit of formaldehyde emission for wooden furniture, applicable to panel material acceptance
GB/T 4893.8-2013	Surface wear resistance test for furniture finishes, applicable to laminate durability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop panel performance;
2. GB/T 3327-2016: Test methods for furniture tables, applicable to structural stability and load testing;
3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable to panel material acceptance;
4. GB/T 4893.8-2013: Surface wear resistance test for furniture finishes, applicable to laminate durability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-WN3200-SL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-WN3200-SL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-WN3200-SLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

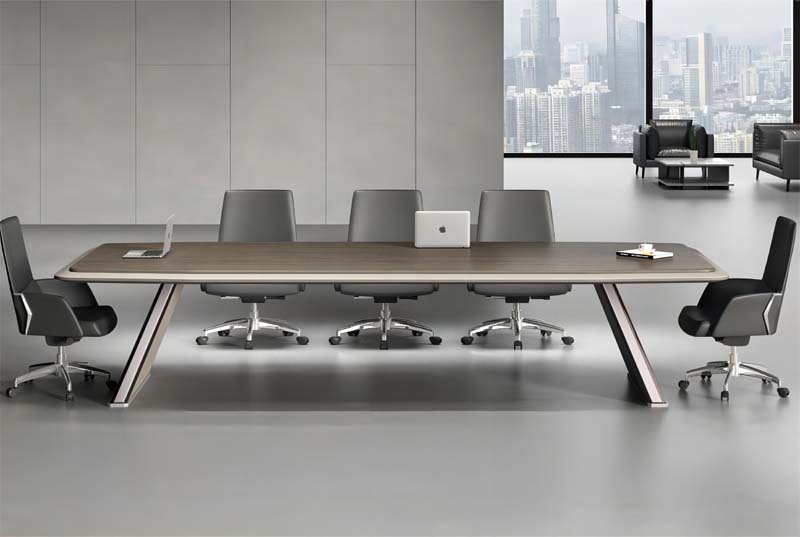

The Modern Rectangular Walnut-Grain Conference Table with Brushed Silver Splayed Legs, model CT-WN3200-SL, delivers a polished, professional presence tailored to commercial work environments, with a streamlined rectangular form defined by softly rounded 50mm radius corners, continuous brushed silver beveled edge trim, and outward-splayed silver metal legs that create an open, visually balanced silhouette. The 3200 x 1200 x 750 mm table features a 38mm thick tabletop built on an E0-grade high-density particleboard core, topped with a matte walnut woodgrain high-pressure laminate surface for a warm, refined wood look without the maintenance demands of solid hardwood. Structural components include 1.5mm thick brushed silver steel tube legs with 80 x 40mm cross-sections, connected to the tabletop via 2.5mm thick powder-coated steel brackets and reinforced by 1.2mm thick internal steel cross beams for lasting stability. Perimeter trim uses brushed silver aluminum alloy, while non-slip nylon glide pads with 10mm of threaded height adjustment sit at each leg base, secured with Grade 8.8 zinc-plated steel bolts. The open under-table layout eliminates central modesty panel obstructions, offering 690mm of knee clearance height and 1100mm of clearance depth to support comfortable seating for 8 people, with equal spacing possible around all table sides. Pre-drilled port positions accommodate optional cable grommets, with internal capacity to route 10 power or data cables and support a 10kg cable tray. The tabletop supports 600kg of static distributed load, resists 200N of edge impact, and withstands 2000 abrasion cycles for durable daily use. It fits equally well in corporate boardrooms for executive meetings and client engagements, open-plan office meeting zones, training and seminar spaces holding laptops and presentation materials, high-traffic hotel conference facilities, client reception areas, and project team collaboration spaces for brainstorming and document review. For procurement, note the knock-down design ships in 2 cartons per set, requires 40 minutes of assembly time, and has no attached brand marking, making it adaptable to diverse commercial interior design schemes.

Modern Rectangular Walnut-Grain Conference Table with Brushed Silver Splayed Legs Specifications
